Trunk Compartment Light Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The trunk compartment light switch is built into the trunk lock.

Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION
Disconnect the trunk compartment light switch connector.
Verify that the continuity between the trunk compartment light switch terminals is as indicated. See Fig 1.
- If not as indicated, replace the trunk lock.

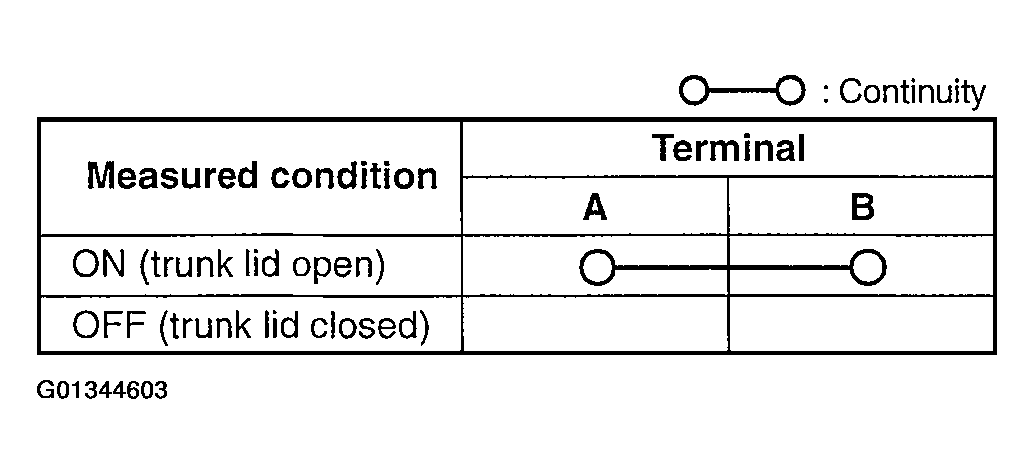

Fig 1: Inspecting Trunk Compartment Light Switch Continuity
Courtesy of MAZDA MOTORS CORP.

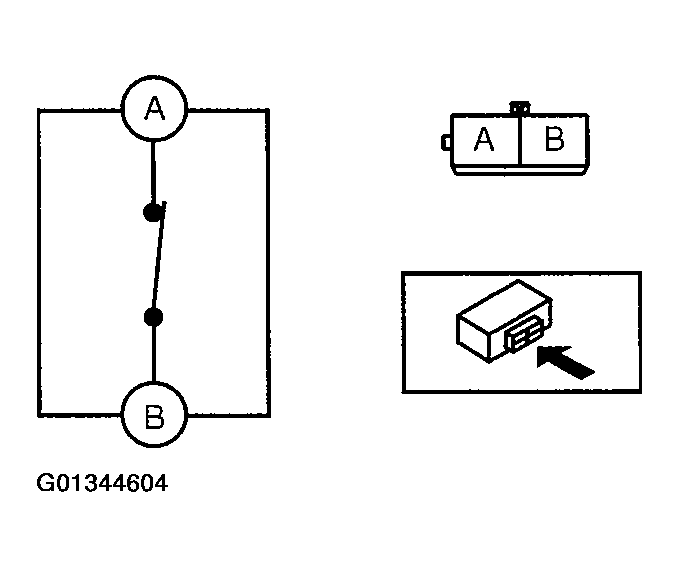

Fig 2: Identifying Trunk Compartment Light Switch Terminals
Courtesy of MAZDA MOTORS CORP.
