Discharge Headlight Control Module Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
- Disconnect the negative battery cable.
- Remove the front side marker lights. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
- Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)

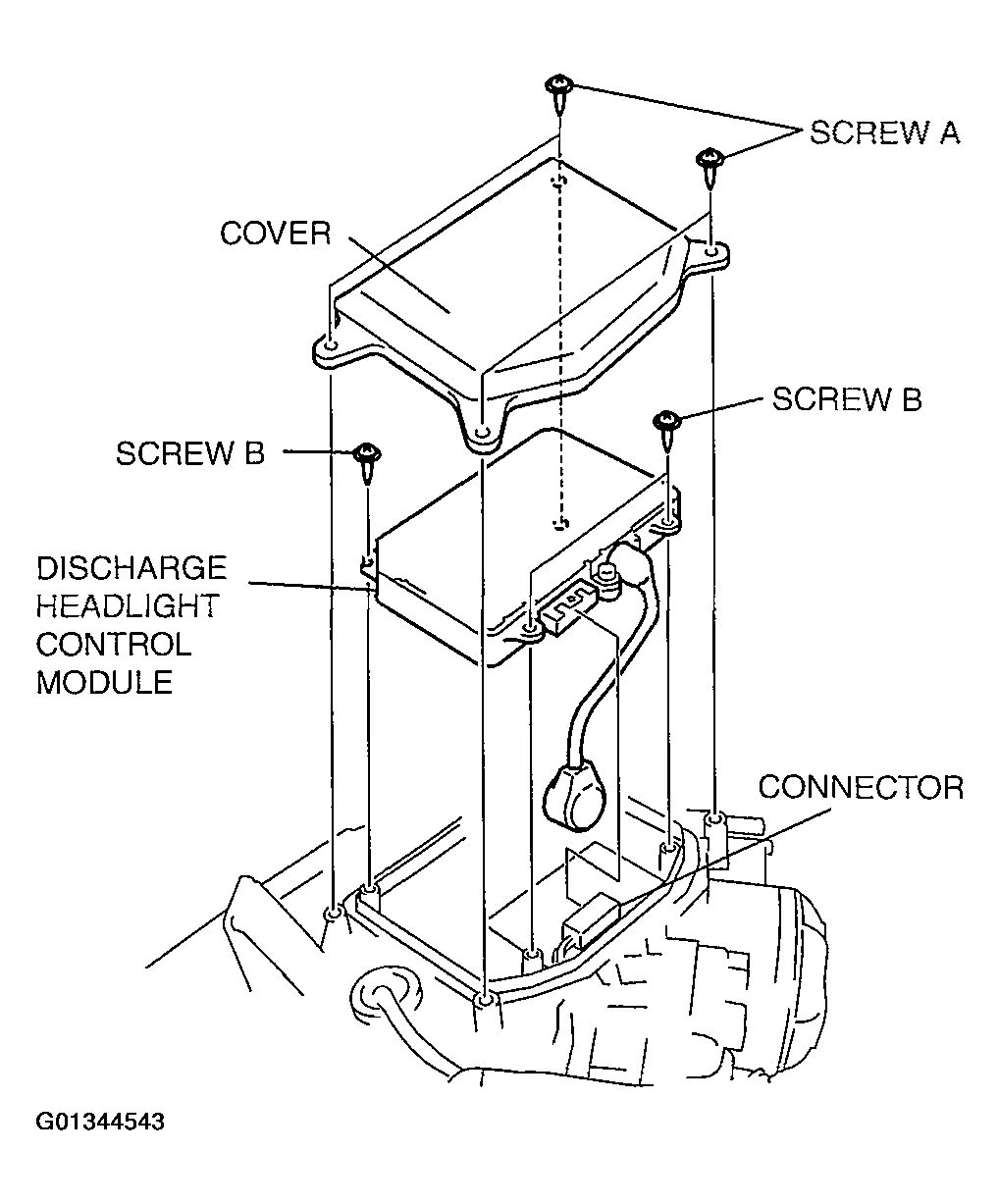

- Remove screws A, then remove the cover.
- Disconnect the connector.
- Remove screws B, then remove the discharge headlight control module.
- Install in the reverse order of removal.
