Discharge headlight inoperative

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

Terminal layout

Fig 1: Discharge Headlight System Terminal Layout

Courtesy of MAZDA MOTORS CORP.

Inspection procedure

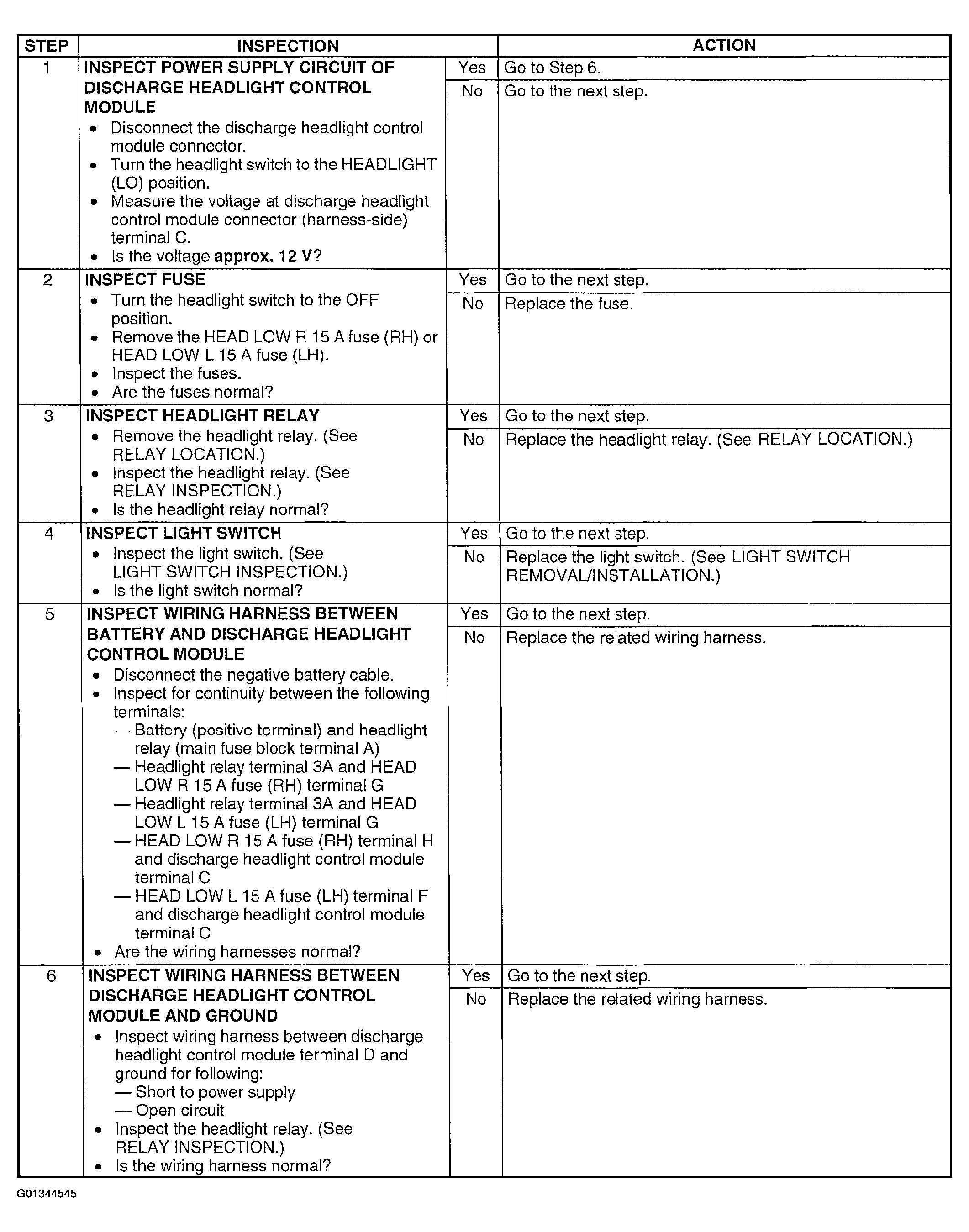

Fig 2: Inspection Procedure (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

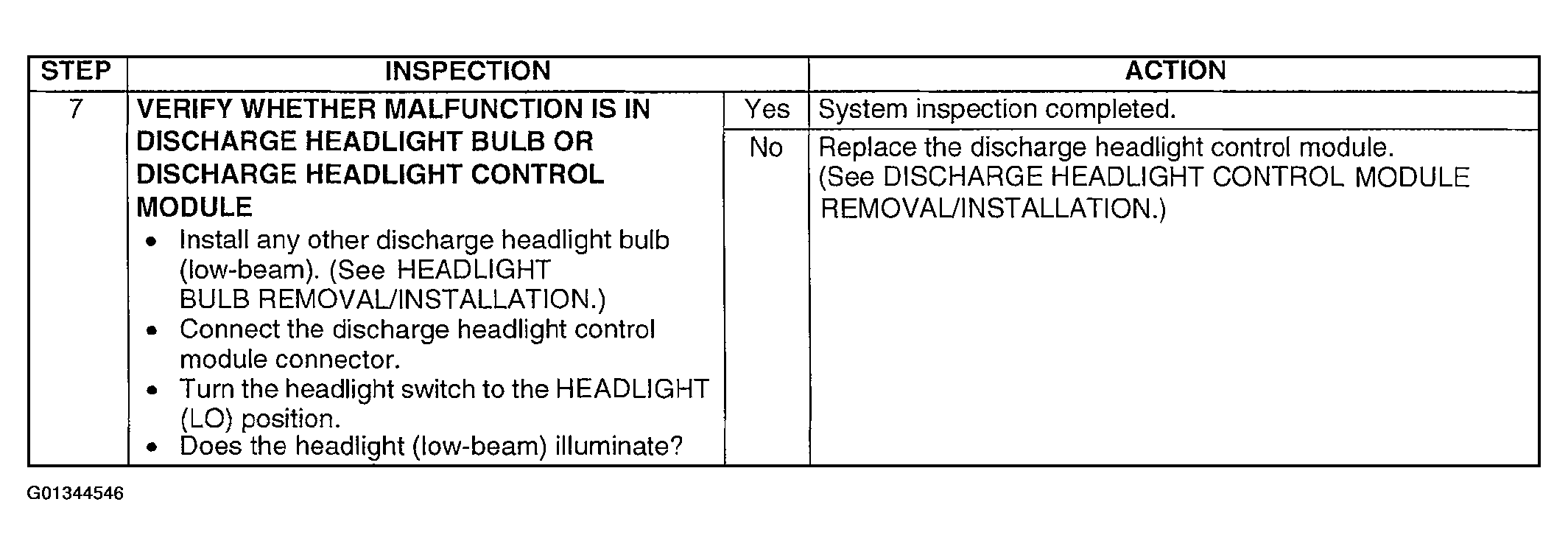

Fig 3: Inspection Procedure (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
