Headlight Leveling Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the headlight leveling switch. (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION .)
Verify that continuity between the headlight leveling switch terminals is as indicated.
- If not as indicated, replace the headlight leveling switch.

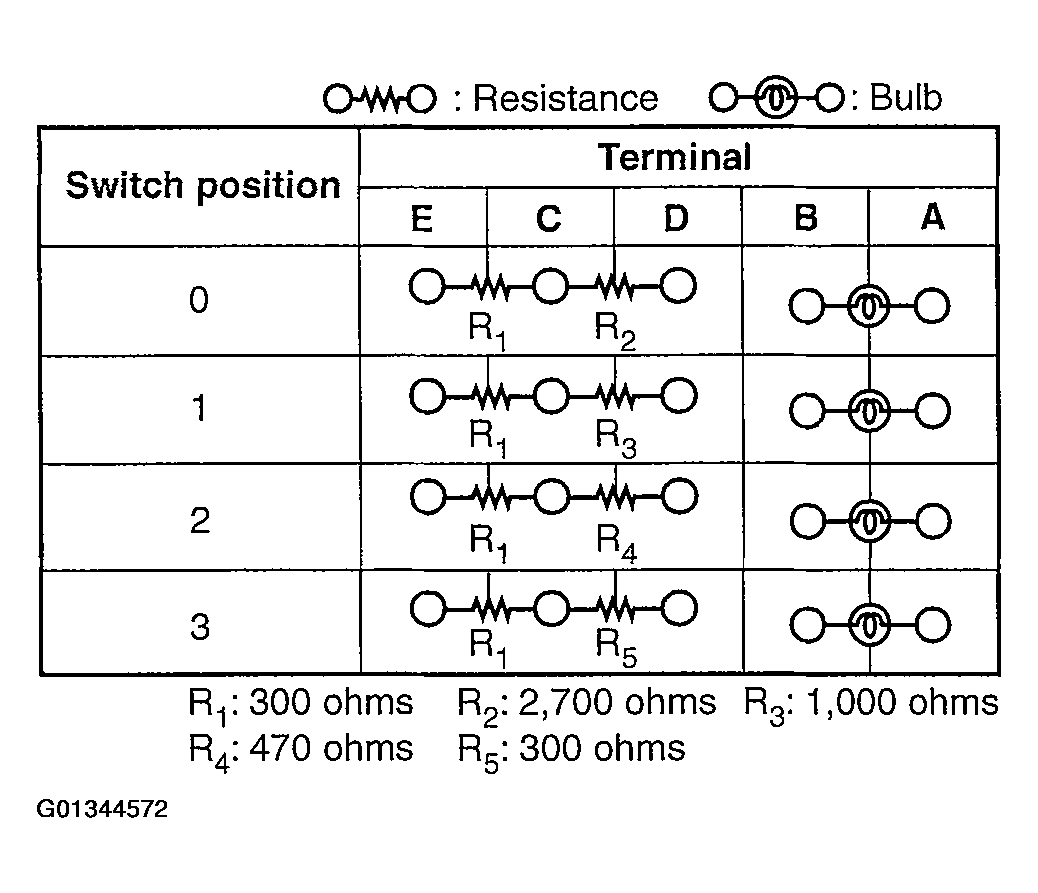

Fig 1: Inspecting Headlight Leveling Switch Continuity
Courtesy of MAZDA MOTORS CORP.

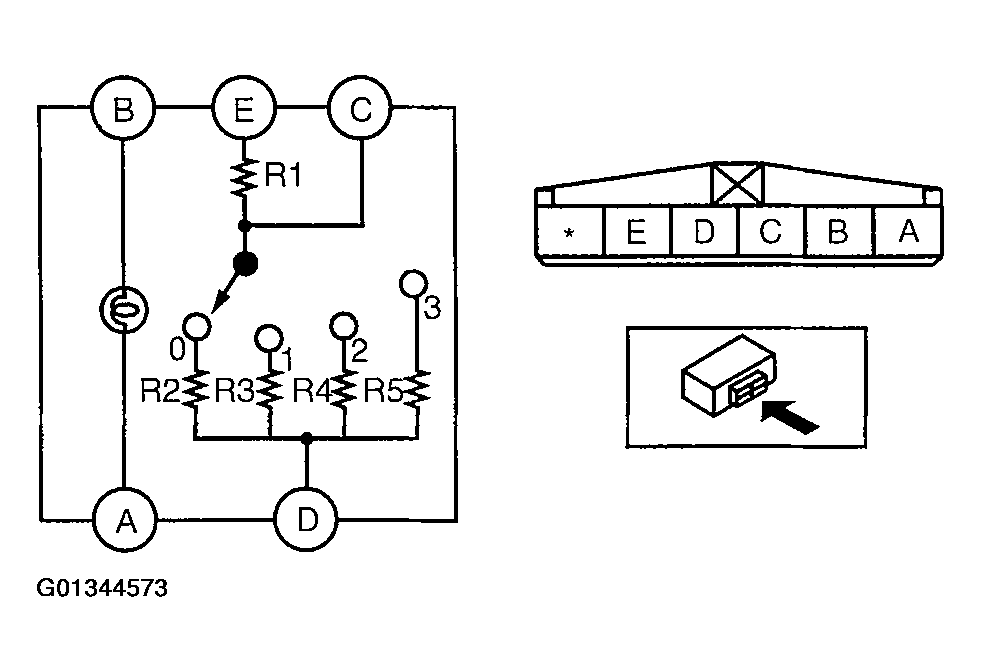

Fig 2: Identifying Headlight Leveling Switch Terminals
Courtesy of MAZDA MOTORS CORP.
