High-Mount Brake Light Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated.

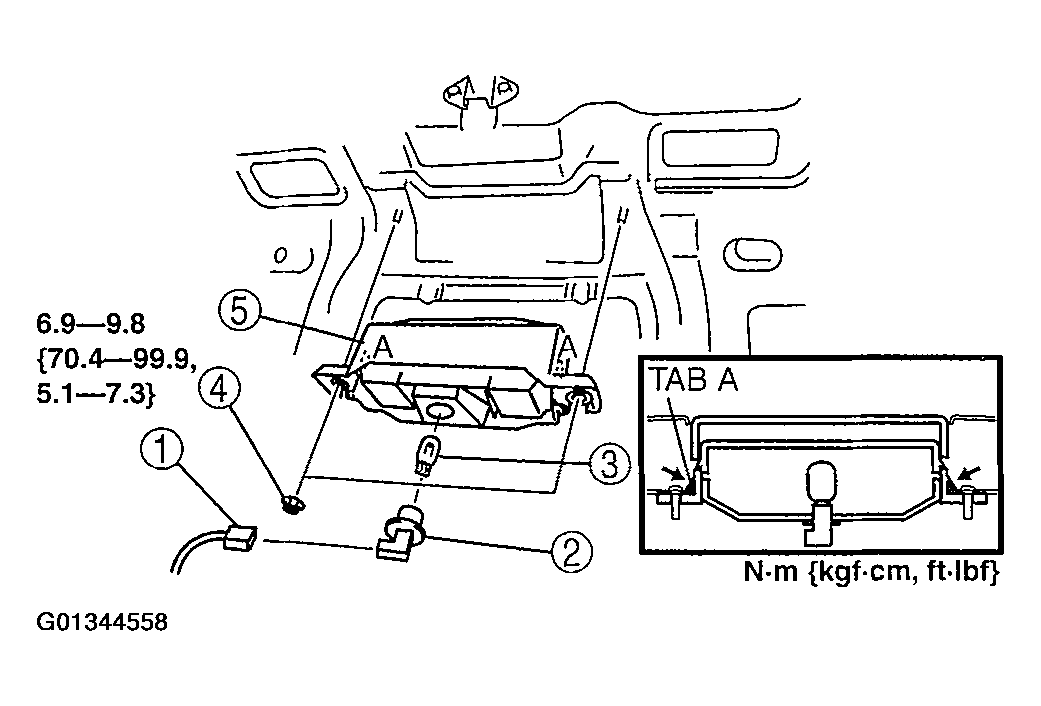

Fig 1: Removing Order Of High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.

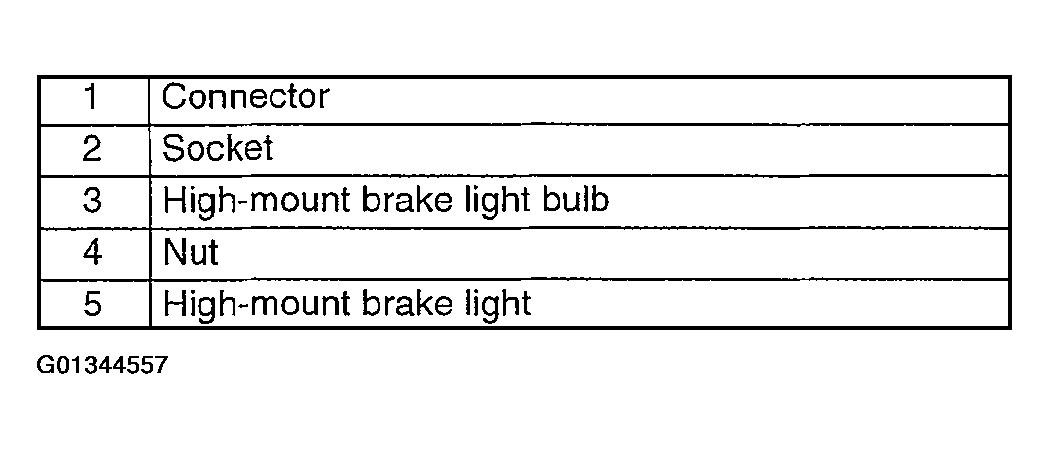

Fig 2: Removing/Installing High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
