Ignition Key Illumination Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the ignition key illumination bulb.
  4. Install in the reverse order of removal.

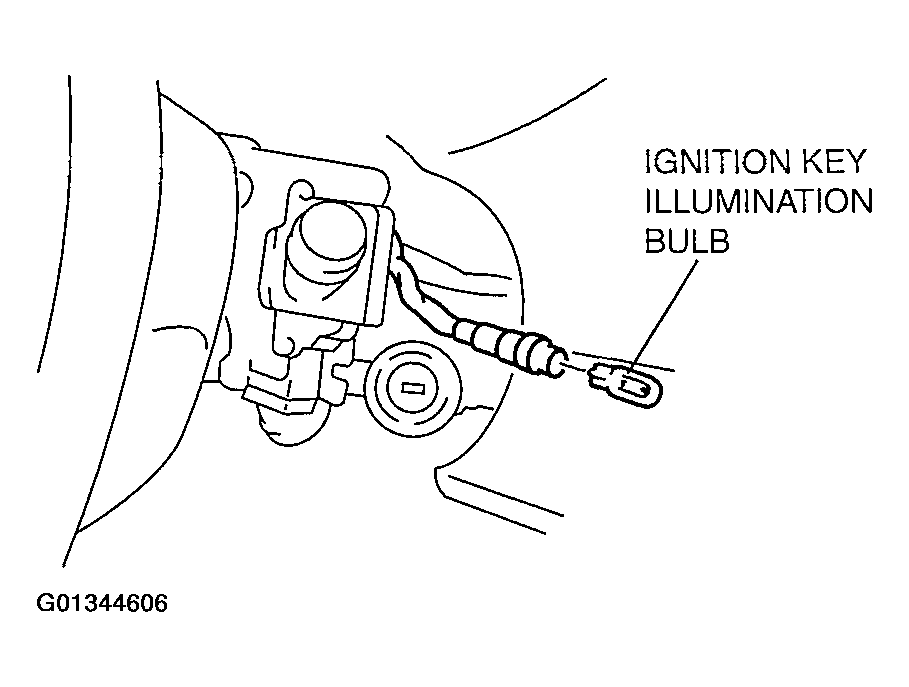

    Fig 1: Removing/Installing Ignition Key Illumination Bulb
    G01344606Courtesy of MAZDA MOTORS CORP.
