Trunk Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lens, then remove the trunk compartment light bulb.
  3. Install in the reverse order of removal.

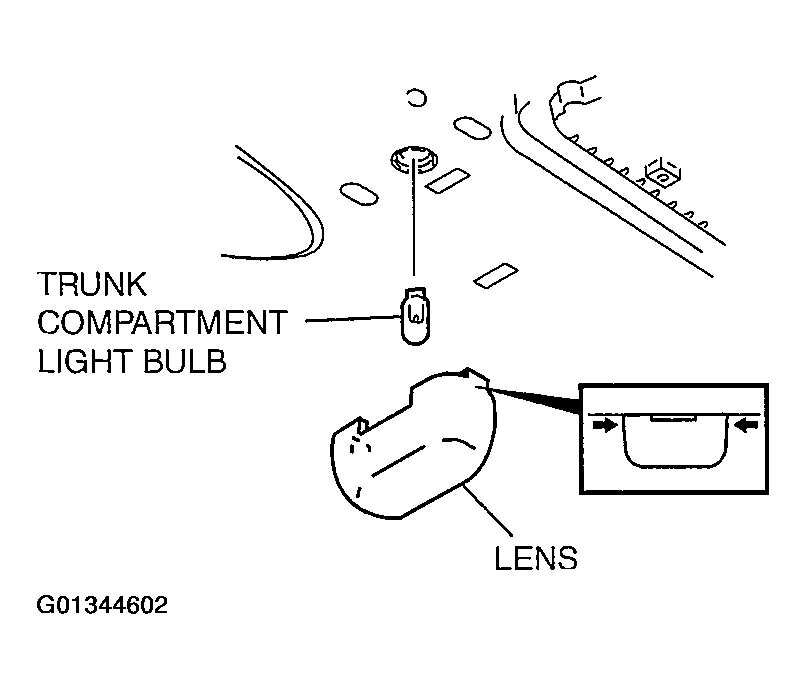

    Fig 1: Removing/Installing Trunk Compartment Light Bulb
    G01344602Courtesy of MAZDA MOTORS CORP.
