Diagnostic Monitoring Test Results

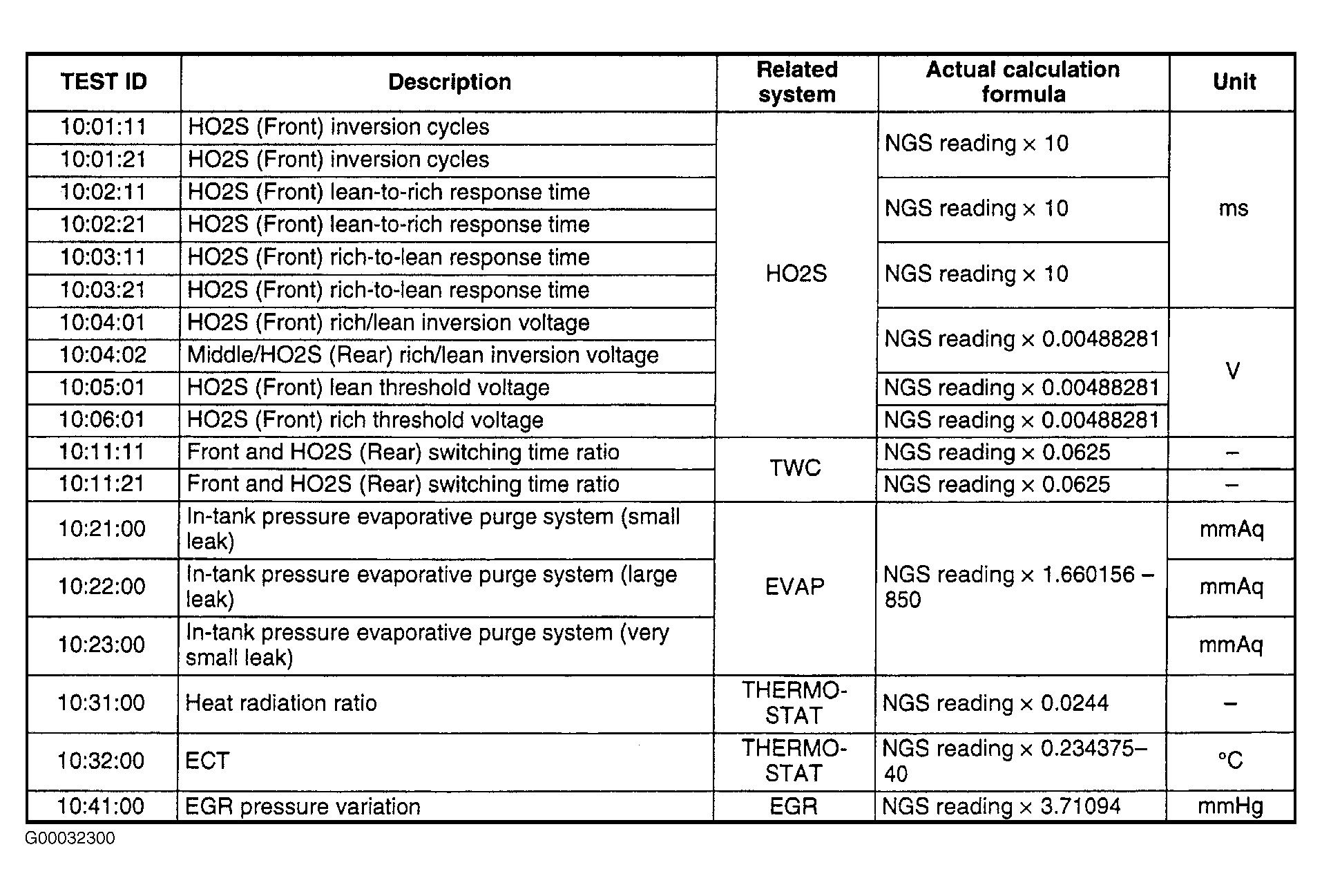

Diagnostic Monitoring Test Results is the intermittent monitor system's technical data which displays system's thresholds and diagnostic results. Intermittent monitor system monitors HO2S, evaporative purge system, catalytic converter and EGR system. Technical data and thresholds have initial values. See Fig 1 . If test is not completed, initial values are displayed on scan tool. Initial values are shown in parentheses in MEAS, Minimum Threshold and Maximum Threshold columns. Catalytic converter will sometimes indicate an initial value even if test is completed. HO2S will not switch during this condition.
