Bearing Disassembly Note

  1. Remove the bearing (vehicle speedometer drive gear side) from the gear case using the SSTs  .

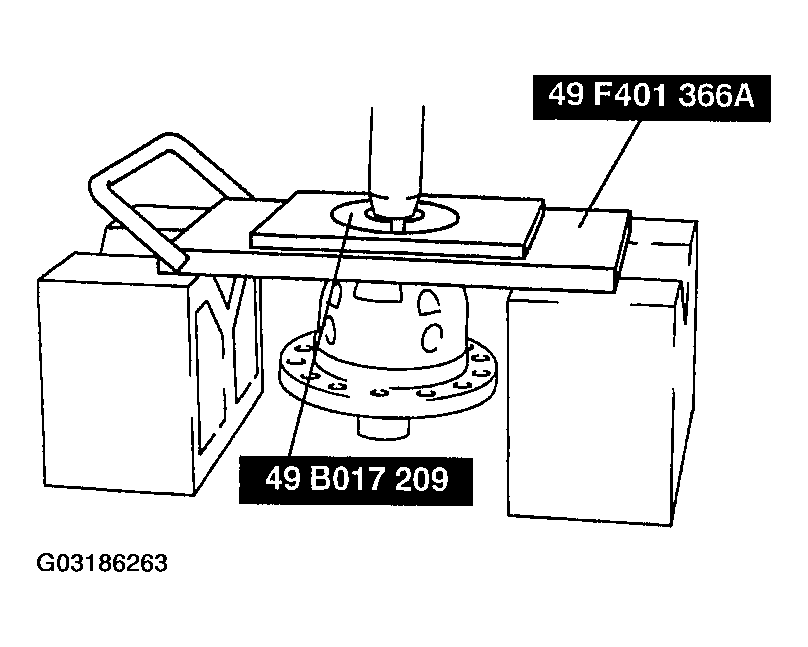

    Fig 1: Removing Bearing (Vehicle Speedometer Drive Gear Side) From Gear Case
    G03186263
  2. Remove the bearing (ring gear side) from the gear case using the SST  .

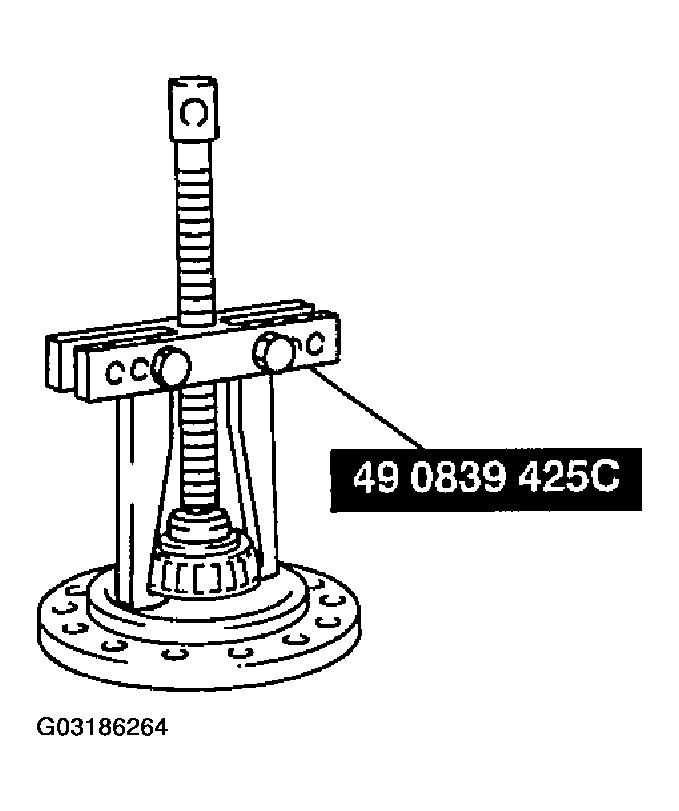

Fig 2: Removing Bearing (Ring Gear Side) From Gear Case
G03186264
