Snap Ring Disassembly Note

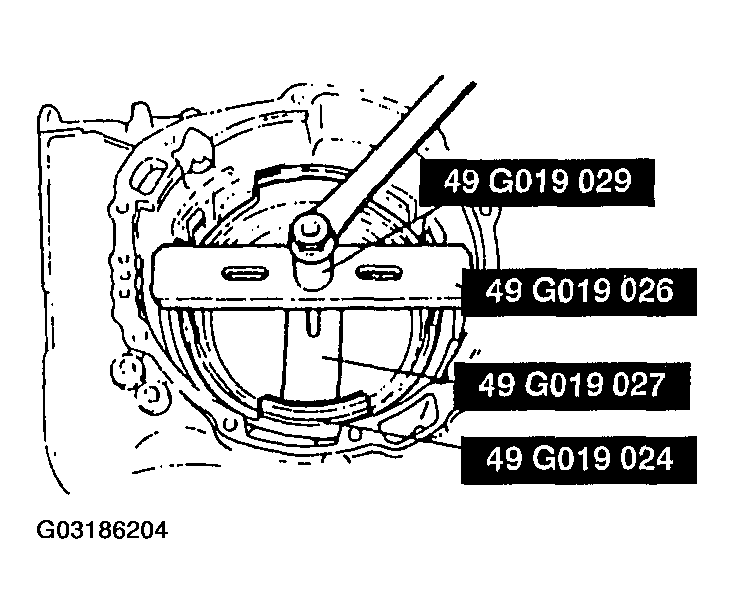

- Install the SSTs
in the transaxle case as shown.CAUTION:
- Depress the spring retainer only enough to remove the snap ring. Overpressing will damage the assembly edges.
- Compress the spring and retainer.
- Remove the snap ring.
- Remove the SSTs and remove the spring and retainer.
