Assembly Procedure

  1. Install the 3-4 shift spring, 3-4 shift valve, stop plug, and stop pin.
  2. Install the TCC shift spring, TCC shift valve, stop plug, and stop pin.

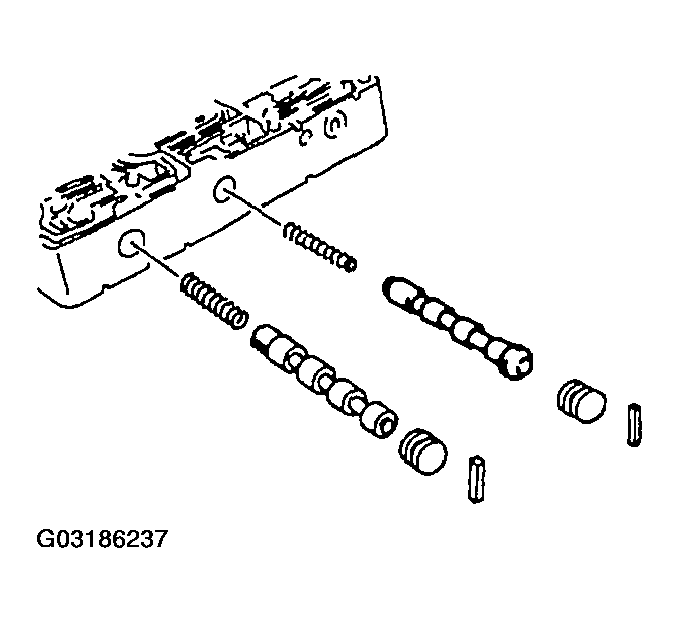

    Fig 1: Installing TCC Shift Spring, TCC Shift Valve, Stop Plug & Stop Pin
    G03186237
  3. Install the coast timing valve, coast timing spring, stop plug, and stop pin.

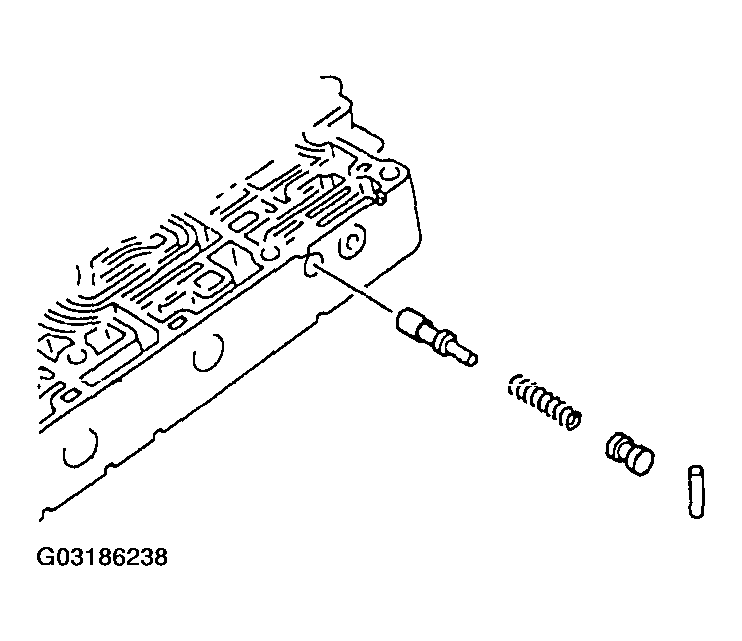

    Fig 2: Installing Coast Timing Valve, Coast Timing Spring, Stop Plug & Stop Pin
    G03186238
  4. Install the 1-2 shift spring, 1-2 shift valve, stop plug, and stop pin.
  5. Install the 2-3 shift spring, 2-3 shift valve, stop plug, and stop pin.

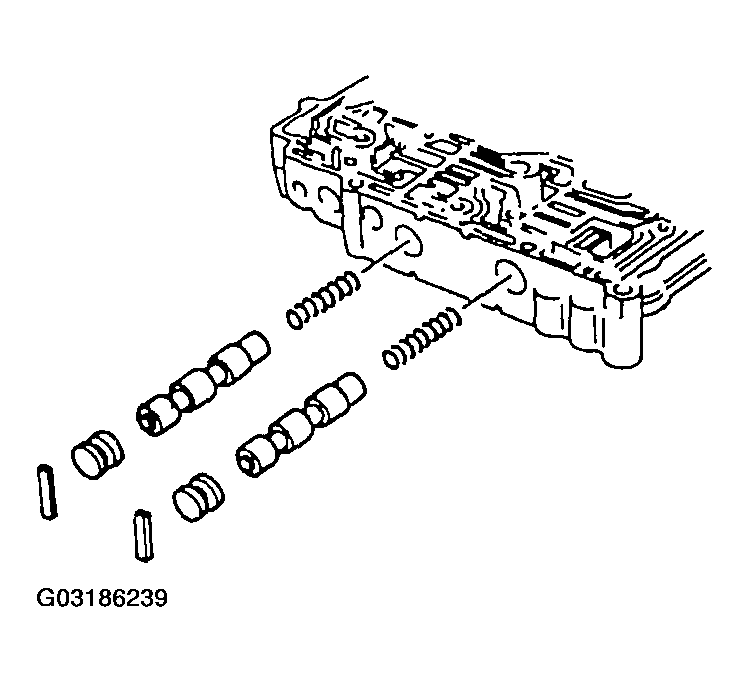

    Fig 3: Installing 1-2, 2-3 shift springs, 1-2, 2-3 shift valves, stop plugs & stop pins
    G03186239
  6. Install the low reducing valve, low reducing spring, and spring retainer.
  7. Install the solenoid reducing valve, spring, stop plug, and stop pin.
  8. Install the converter relief valve, converter relief spring, and spring retainer.

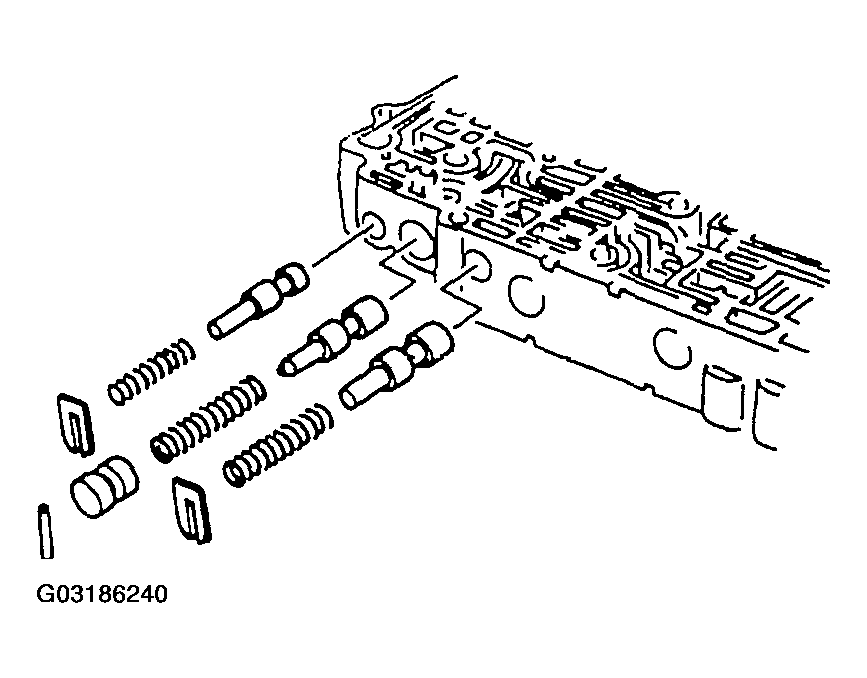

Fig 4: Installing low reducing valve, low reducing spring, solenoid reducing valve, spring, stop plug, and stop pin, converter relief valve, converter relief spring & spring retainers
G03186240
