Assembly Procedure

Press the new bearings onto the output gear using the SSTs .

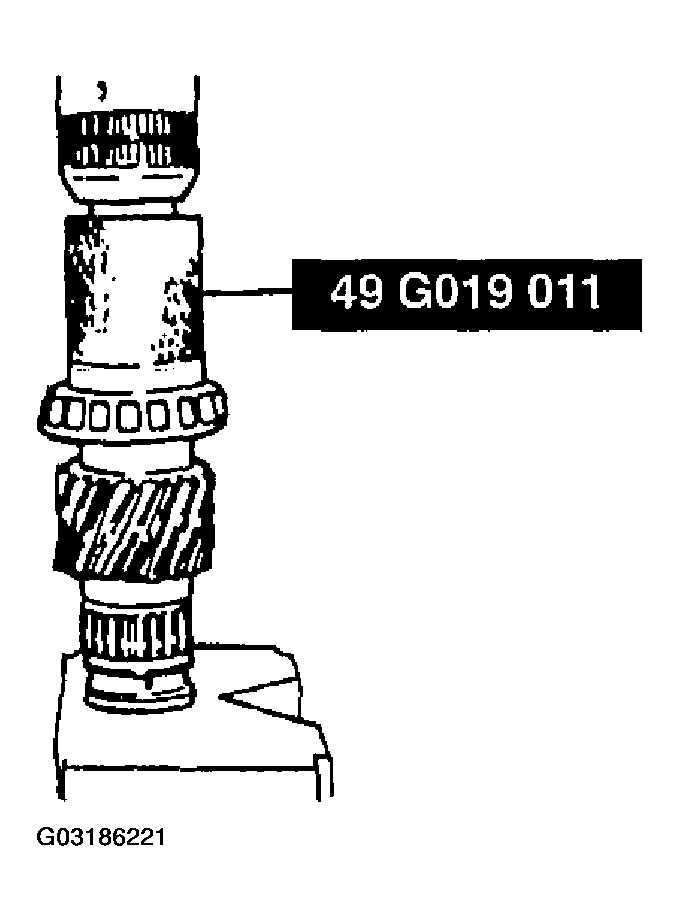

Fig 1: Installing Output Gear Bearings
NOTE:
- Do not damage the seal ring when installing it.
Apply ATF to new seal rings and install them to each side of the output gear.
Seal Ring Inner Diameter:
1. 36.6 mm {1.44 in}
