Assembly Procedure

Install the 2-3 timing valve, 2-3 timing spring, 2-3 timing plug, and stop pin.

Fig 1: Installing 2-3 Timing Valve, 2-3 Timing Spring, 2-3 Timing Plug & Stop Pin
Install the pressure regulator valve, pressure regulator spring, pressure regulator spring seat, pressure regulator plug, pressure regulator plug sleeve, and stop pin.

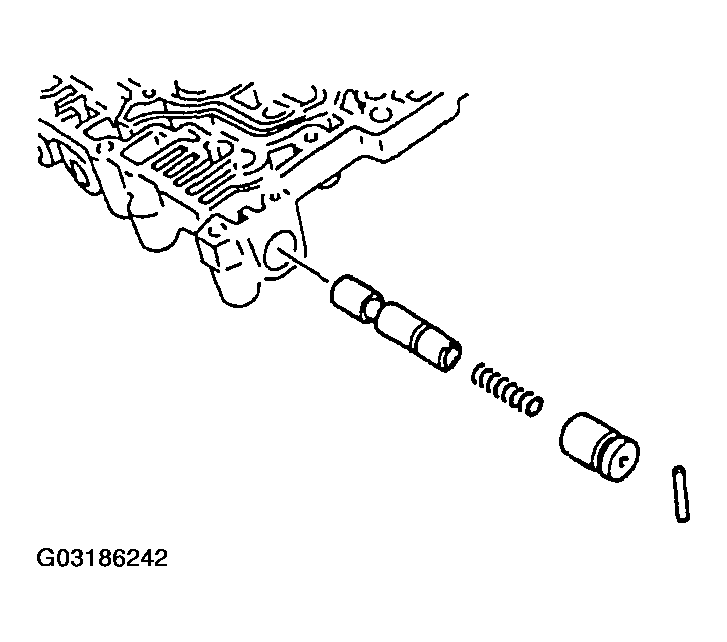

Fig 2: Installing pressure regulator valve, pressure regulator spring, pressure regulator spring seat, pressure regulator plug, pressure regulator plug sleeve & stop pin
Install the manual valve.

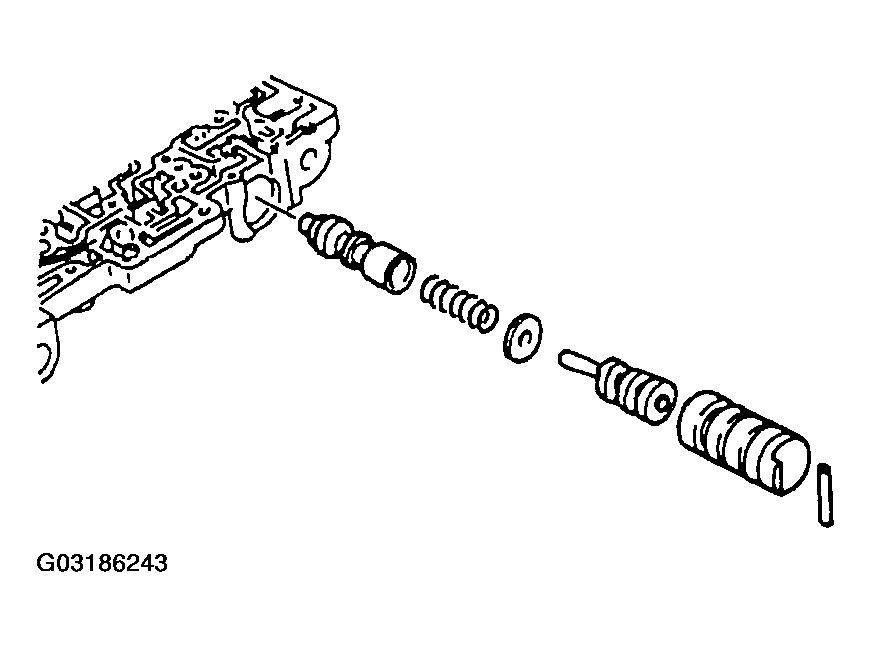

Fig 3: Installing Manual Valve
