3-4 Clutch Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

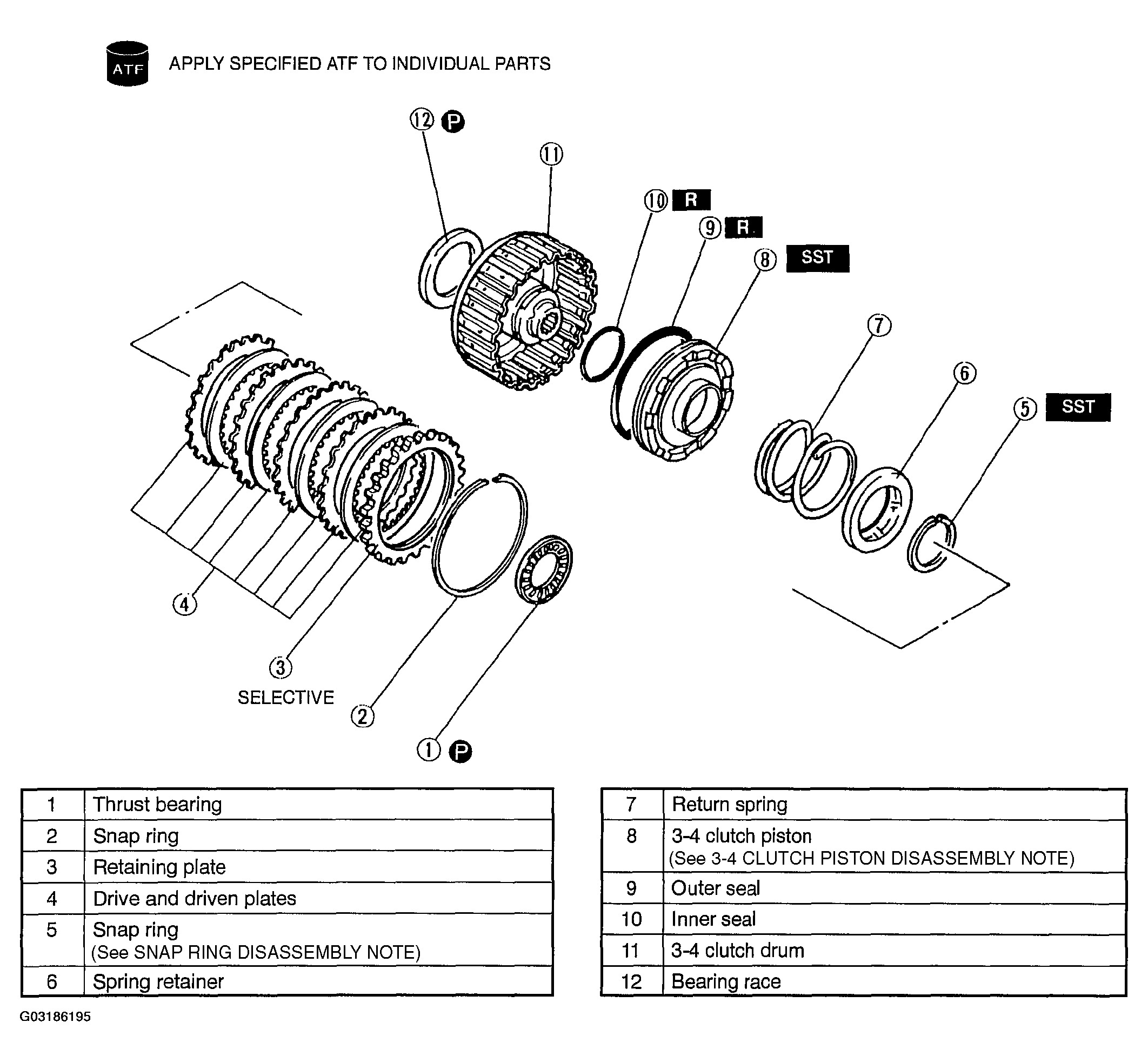

    Fig 1: Disassembling 3-4 Clutch
    G03186195
