Automatic Transaxle Assembly: Components

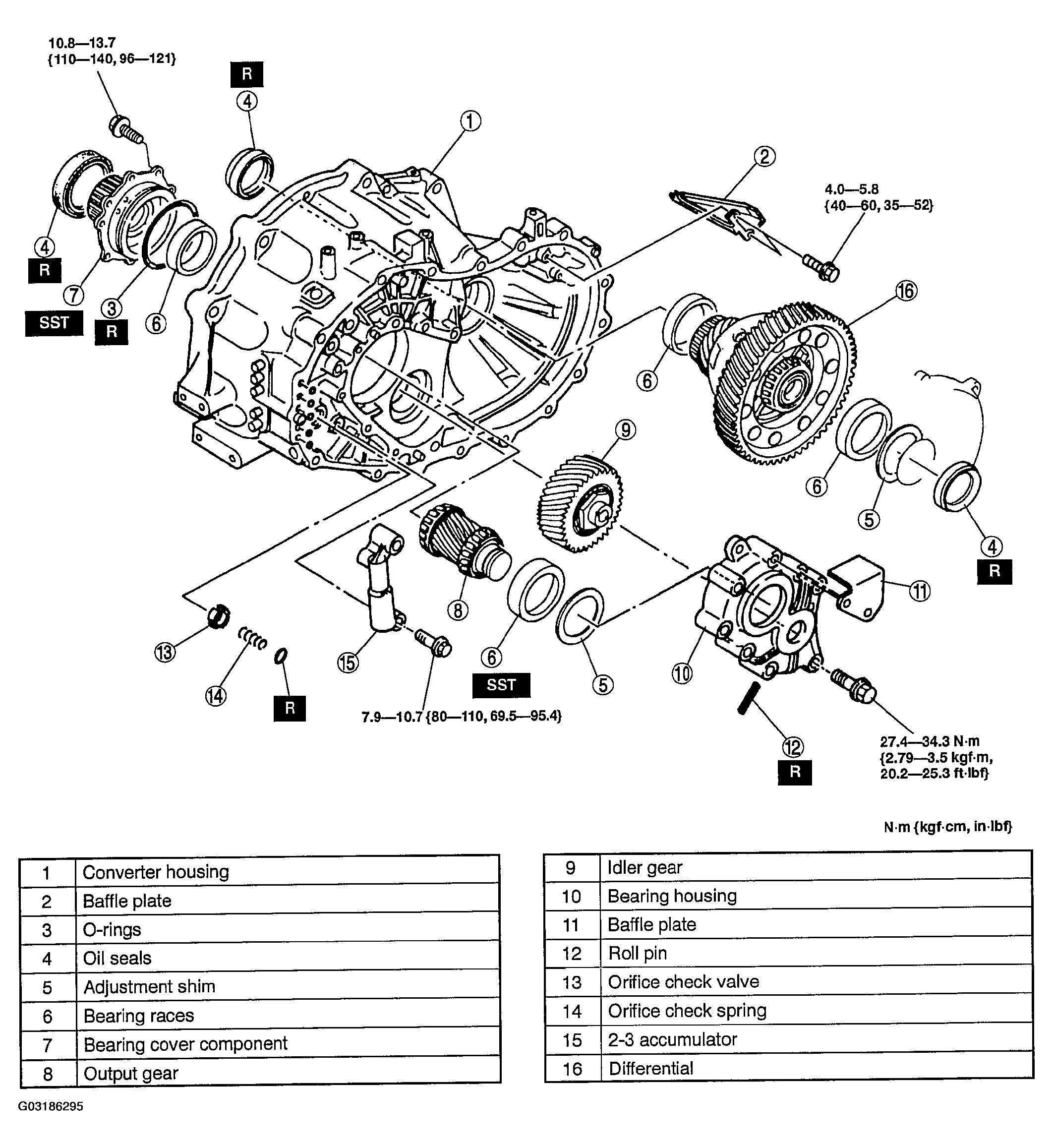

Fig 1: Installing Transmission Components (1 Of 4)
G03186295
Fig 2: Installing Transmission Components (2 Of 4)
G03186296

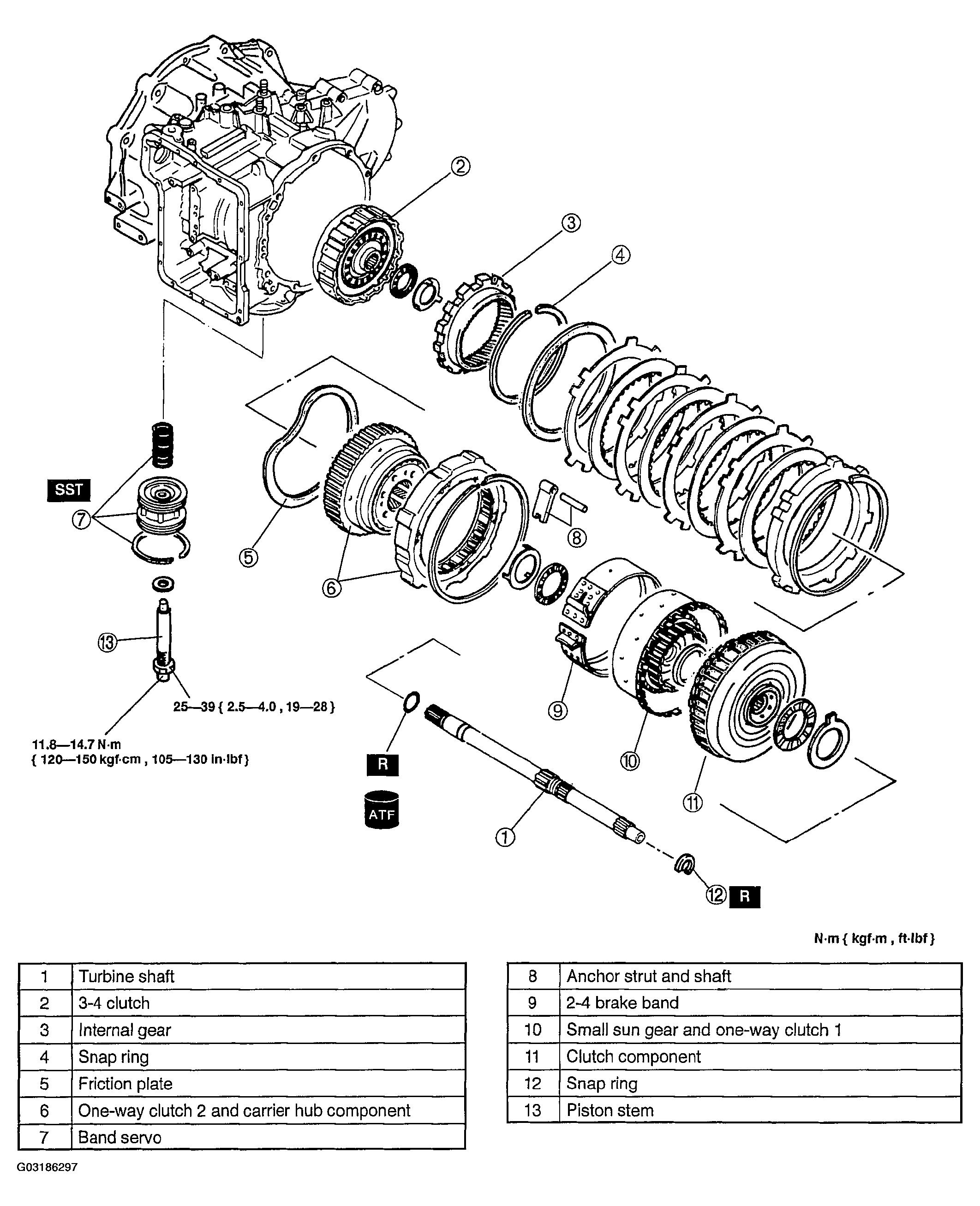

Fig 3: Installing Transmission Components (3 Of 4)
G03186297

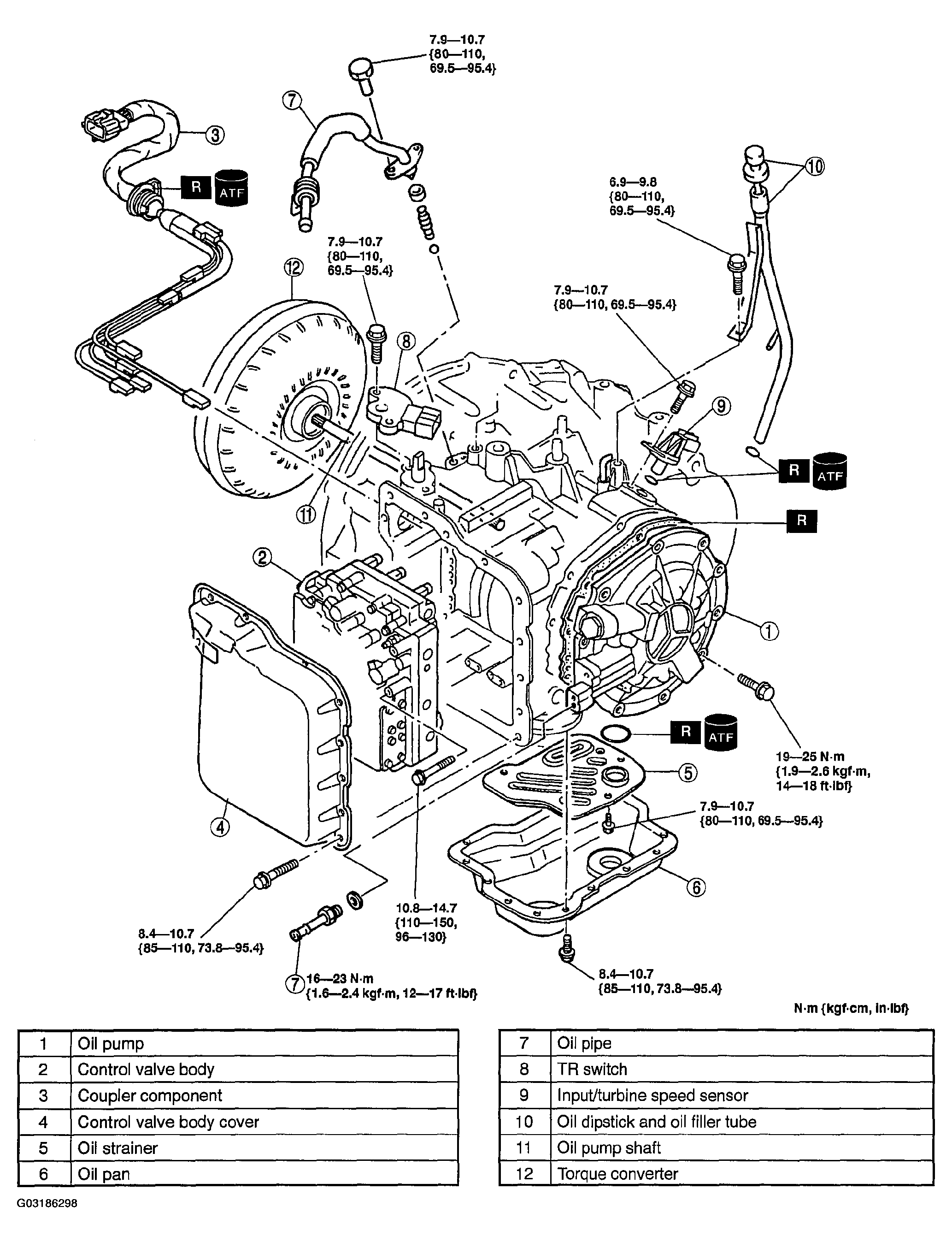

Fig 4: Installing Transmission Components (4 Of 4)
G03186298
