Disassembly Procedure

  1. Remove the torque converter, and immediately turn it so that the hole faces upward. This will help to keep any remaining fluid from spilling.
  2. Pull out the oil pump shaft by hand.
  3. Remove the oil dipstick and oil filler tube.
  4. Remove the O-ring from the oil filler tube.
  5. Remove the breather hose.
  6. Assemble the SST  .

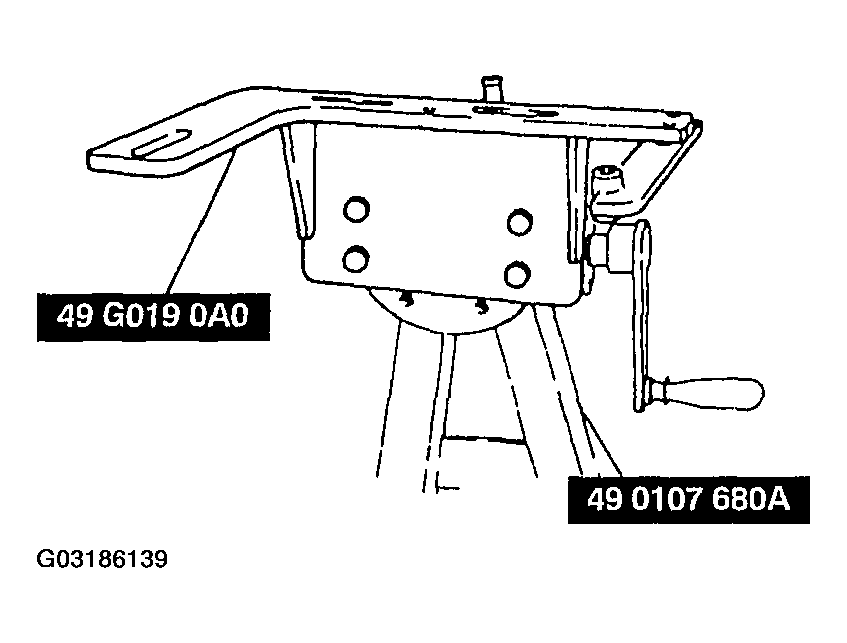

    Fig 1: Assembling SST (Stand)
    G03186139
  7. Attach suitable hangers to the oil pump as shown.

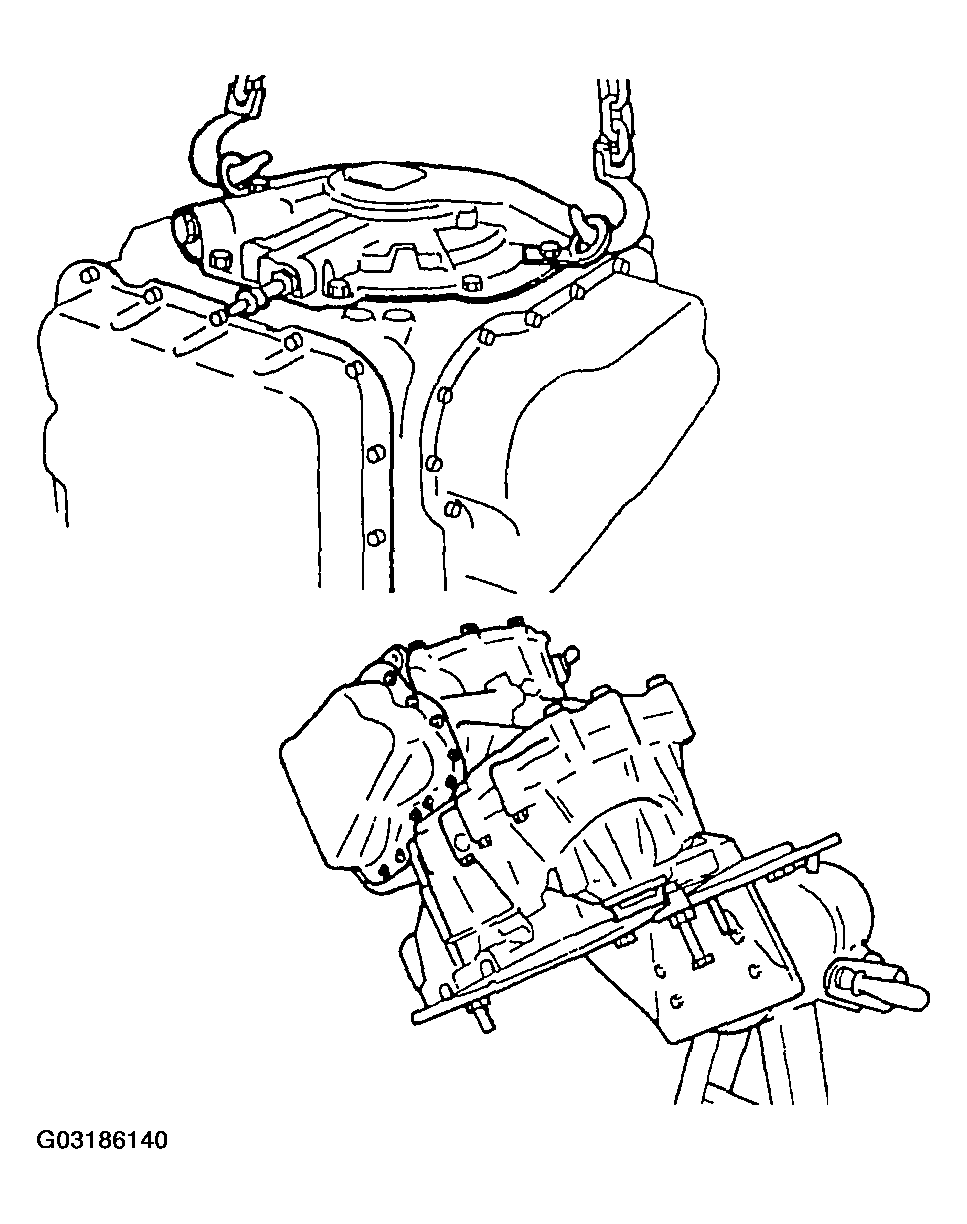

    Fig 2: Attaching Hangers To Oil Pump
    G03186140

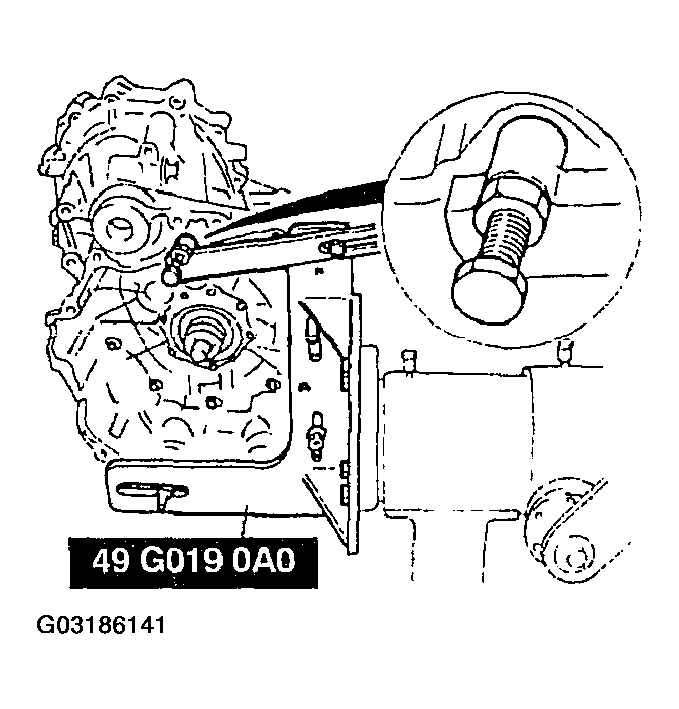

  8. Lift the transaxle and mount it on the SST  .
    Fig 3: Mounting Transaxle To SST
    G03186141
    NOTE:
    • When the manual shaft lever is installed to the manual shaft, use an adjustable wrench to hold the manual shaft lever, then use a wrench other than an impact wrench to remove the manual shaft nut and manual shaft lever.
    CAUTION:
    • Do not use an impact wrench or remove the manual shaft nut without holding the manual shaft lever, as the transaxle may become damaged.
  9. Remove the manual shaft nut.
  10. Remove the input/turbine speed sensor, TR switch, and bracket.
  11. Remove the O-ring from the input/turbine speed sensor.
  12. Remove the vehicle speedometer sensor.
  13. Remove the O-ring from the vehicle speedometer sensor.
  14. Disconnect the coupler.
  15. Remove the connector bolt.
  16. Remove the oil pipe, packing, spring, and steel ball.
    WARNING:
    • Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
    CAUTION:
    • Clean the transaxle exterior thoroughly with a steam cleaner or cleaning solvents before removal.
    • If any old sealant gets into the transaxle during installation of the oil pan, trouble may occur in the transaxle. Remove any old sealant from the transaxle case and oil pan, and clean with cleaning fluids.
  17. Remove the oil pan and inspect any material found in the pan or on the magnet to determine the condition of the transaxle.
    • If large amounts of material are found, replace the torque converter and carefully check the transaxle for the cause.
      • Clutch facing material: Drive plate and brake band wear
      • Steel (magnetic): Bearing, gear, and driven plate wear
      • Aluminum (nonmagnetic): Aluminum part wear
  18. Remove the oil strainer and O-ring.
    CAUTION:
    • If any old sealant gets into the transaxle during installation of the control valve body cover, trouble may occur in the transaxle. Remove any old sealant from the transaxle case and control valve body cover, and clean with cleaning fluids.
  19. Remove the control valve body cover.
  20. Disconnect the solenoid connectors and TFT sensor connector.
  21. Remove the coupler component.
  22. Remove the O-ring from the coupler component.
  23. Loosen the indicated bolts evenly and gradually.
  24. Remove the control valve body as an assembly.

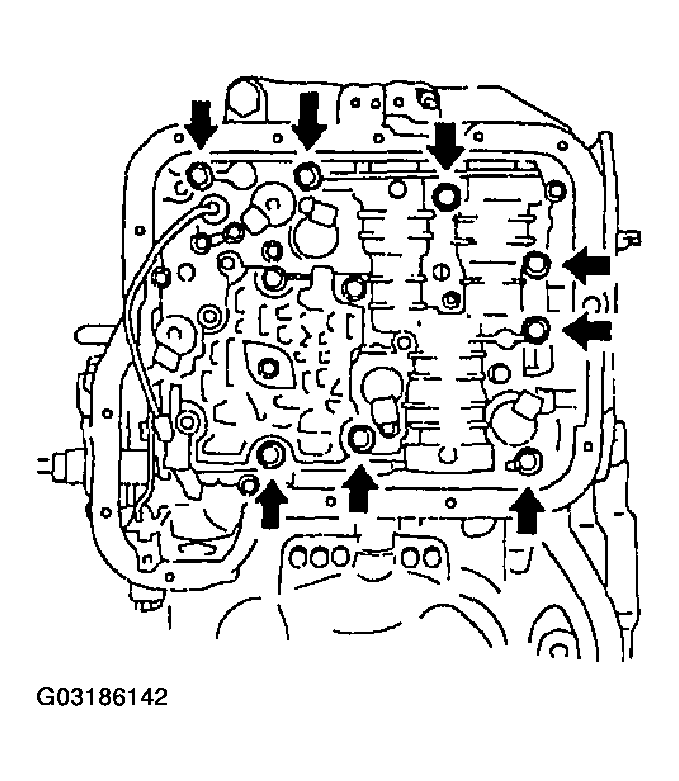

    Fig 4: Removing Control Valve Body Assembly
    G03186142
  25. Remove the oil pump and gasket.
  26. Remove the clutch component.
    1. Remove the turbine shaft snap ring.
    2. Pull the reverse and forward drum and remove the clutch component.
  27. Remove the small sun gear and one-way clutch 1.

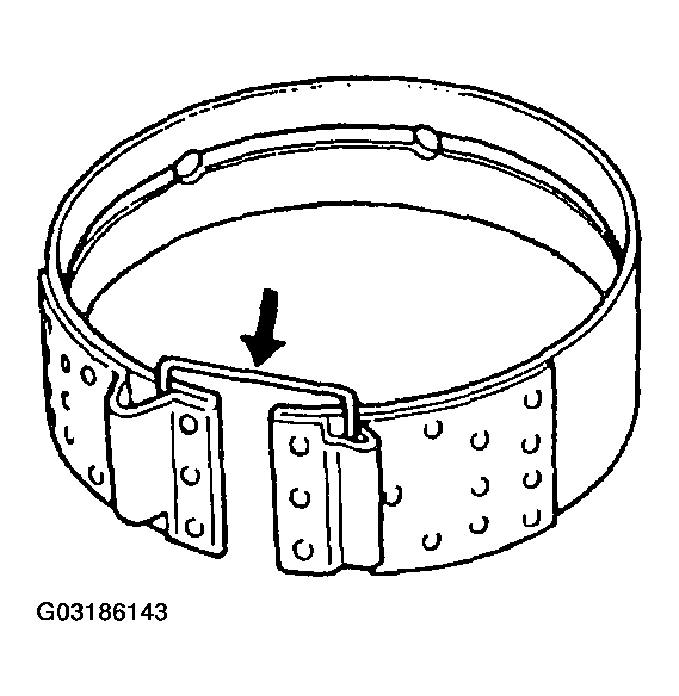

  28. Remove the 2-4 brake band, and hold it together using a piece of wire as shown in the figure.
    Fig 5: Holding 2-4 Brake Band Using Wire
    G03186143
  29. Pull out the anchor shaft while holding the strut, then remove the strut.
  30. Remove the piston stem from the band servo.
  31. Remove the band servo.

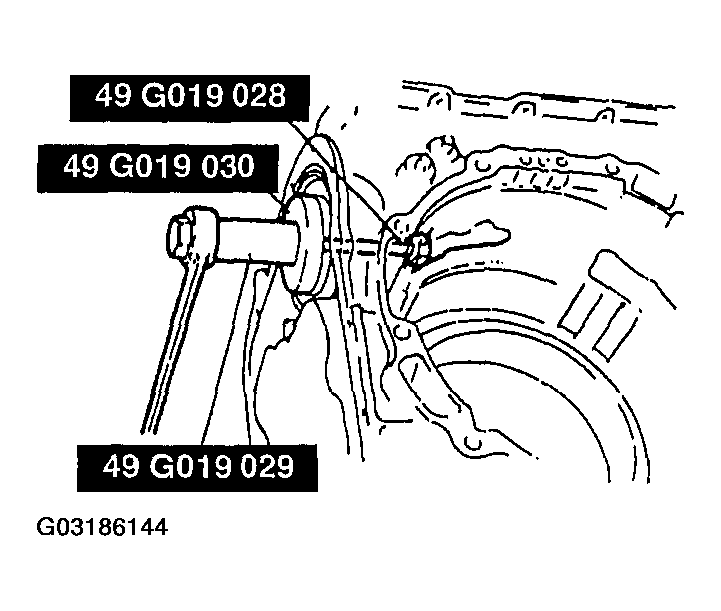

    1. Remove the snap ring using the SST  .
      Fig 6: Removing Band Servo
      G03186144
    2. Remove the band servo and spring.
  32. Remove the one-way clutch 2 and carrier hub component.
    1. Remove the snap ring.
    2. Remove the one-way clutch 2 together with the carrier hub component.
  33. Remove the friction plate.
  34. Remove the internal gear.

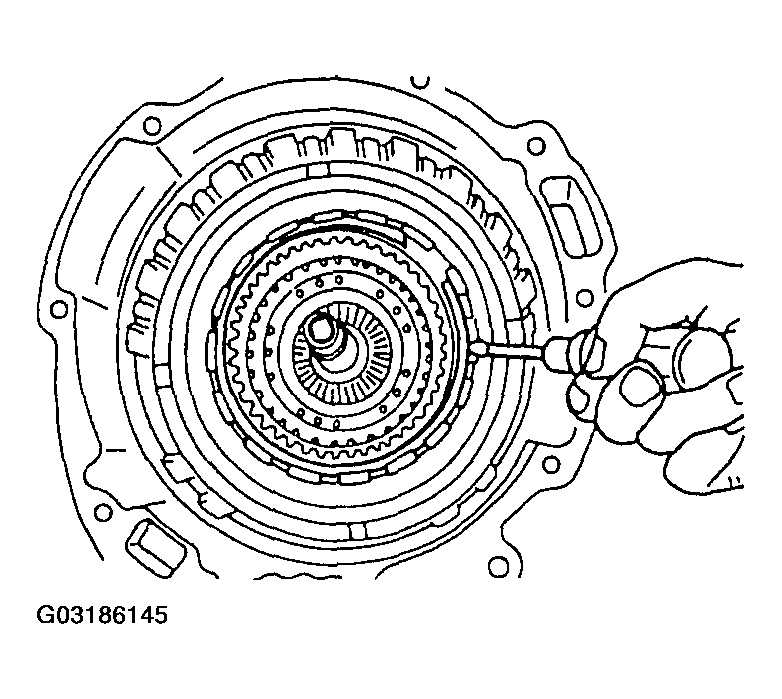

    1. Remove the snap ring from the output shell.
      Fig 7: Removing Snap Ring
      G03186145
    2. Remove the internal gear from the output shell.
  35. Remove the 3-4 clutch and turbine shaft.
    1. Remove the O-ring from the turbine shaft at the converter housing side.
    2. Remove the turbine shaft and 3-4 clutch together as an assembly.
    3. Separate the turbine shaft and 3-4 clutch.
    CAUTION:
    • If any old sealant gets into the transaxle during installation of the transaxle case, trouble may occur in the transaxle. Remove any old sealant from the transaxle case and converter housing, and clean with cleaning fluids.
  36. Remove the bolts and remove the transaxle case by tapping lightly with a plastic hammer.
  37. Remove the output shell from the output gear.
  38. Remove the manual shaft and manual plate.
    1. Remove the plug, packing, spring, and detent ball.
    2. Loosen the nut and pull out the manual shaft.
    3. Remove the nut, washer, spacer, and manual plate.
  39. Remove the differential.
  40. Remove the 2-3 accumulator.
  41. Remove the orifice check valve spring and orifice check valve.
  42. Remove the baffle plate.
  43. Remove the bearing housing.
    1. Remove the roll pin using a pin punch.

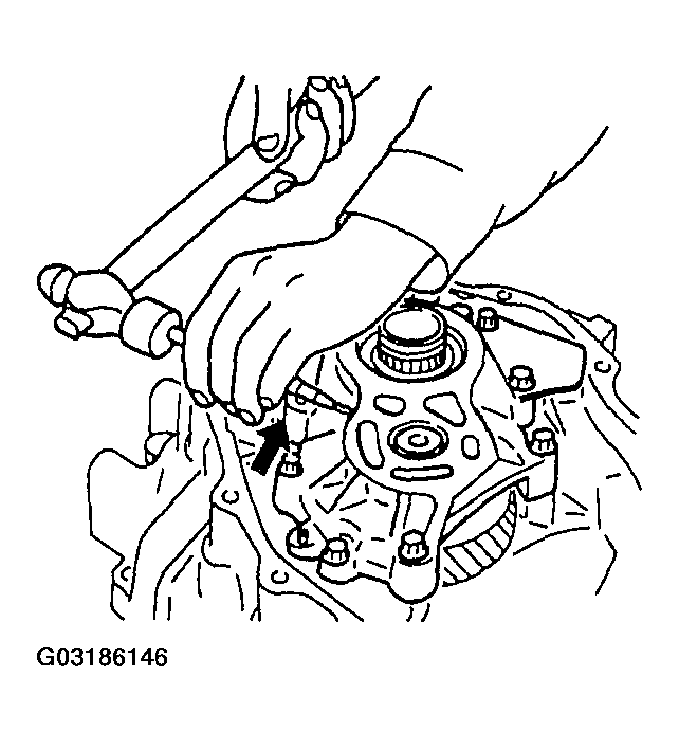

      Fig 8: Removing Roll Pin
      G03186146
    2. Remove the baffle plate.
    3. Remove the bearing housing by tapping lightly with a plastic hammer.
  44. Remove the idler gear and output gear by tapping it out from the torque converter side.
  45. Remove the bearing cover component.
    1. Remove the bearing cover bolts.
    2. Remove the converter housing from the SST  (transaxle hanger).
    3. Press the bearing cover out of the converter housing using a suitable pipe.

    Outer diameter of pipe 80 mm {3.1 in}

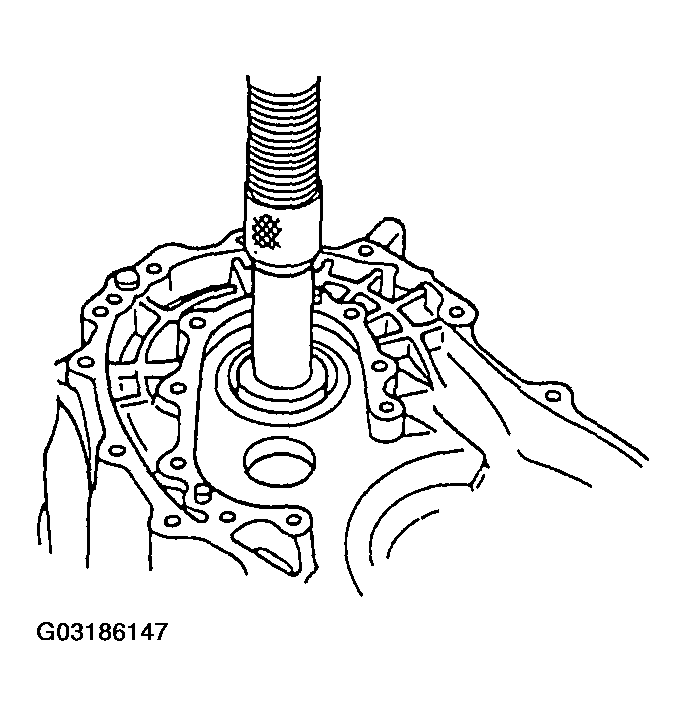

    Fig 9: Pressing Bearing Cover Out Of Converter Housing
    G03186147
  46. Press out the bearing race using the SST  .
Fig 10: Pressing Out Bearing Race
G03186148
