Assembly Procedure

Apply ATF to the new O-ring and install it to the bearing cover.
O-Ring Inner Diameter
1. 85.1 mm {3.35 in}

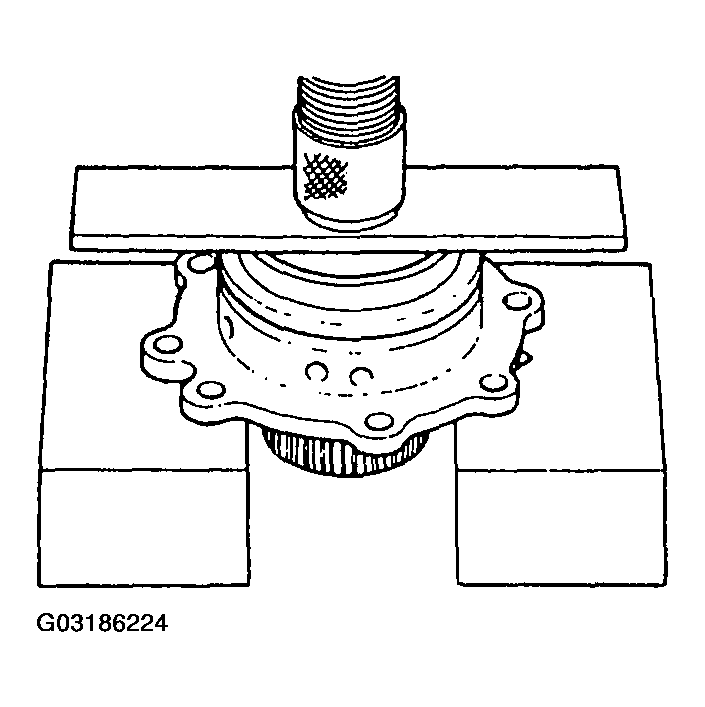

Press the new bearing race into the bearing cover.

Fig 1: Installing Bearing Race Into Bearing Cover

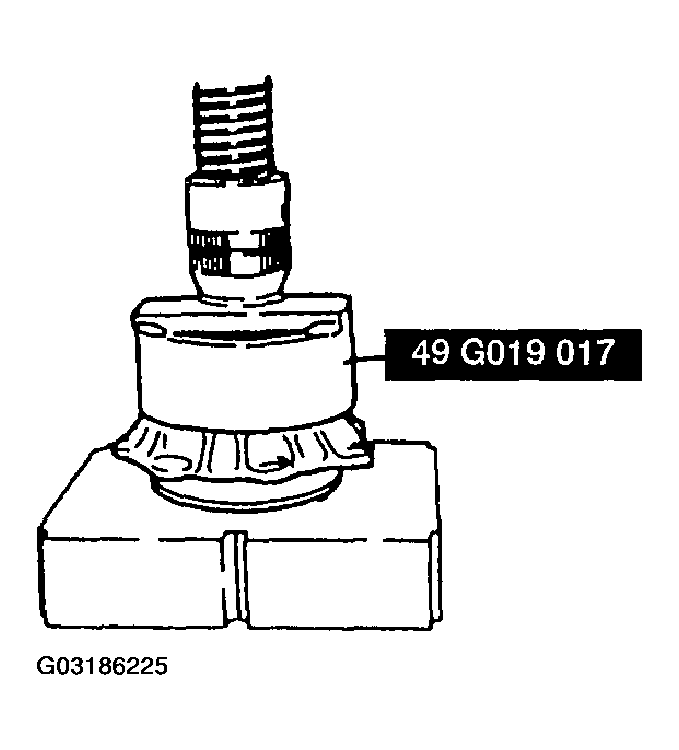

Press the new oil seal into the bearing cover using the SST .

Fig 2: Installing Bearing Cover Oil Seal
