Coasting Clutch Piston Disassembly Note

WARNING:

Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.

Remove the coasting clutch piston from the coasting clutch drum by applying compressed air through the fluid passage.
Air Pressure
1. 390 kPa {4.0 kgf/cm ² , 57 psi} max.

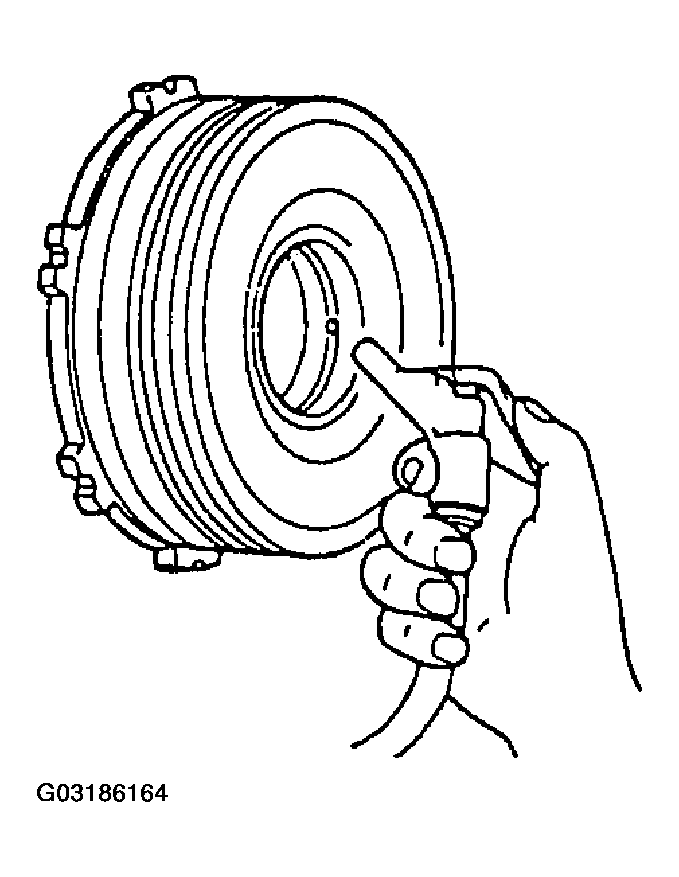

Fig 1: Removing Coasting Clutch Piston
