Spring And Retainer Inspection

  1. Measure the free length of the spring and inspect for deformation.
    • If not within the specification, replace the spring and retainer.

    Free Length

    1. 31.54 mm {1.242 in}

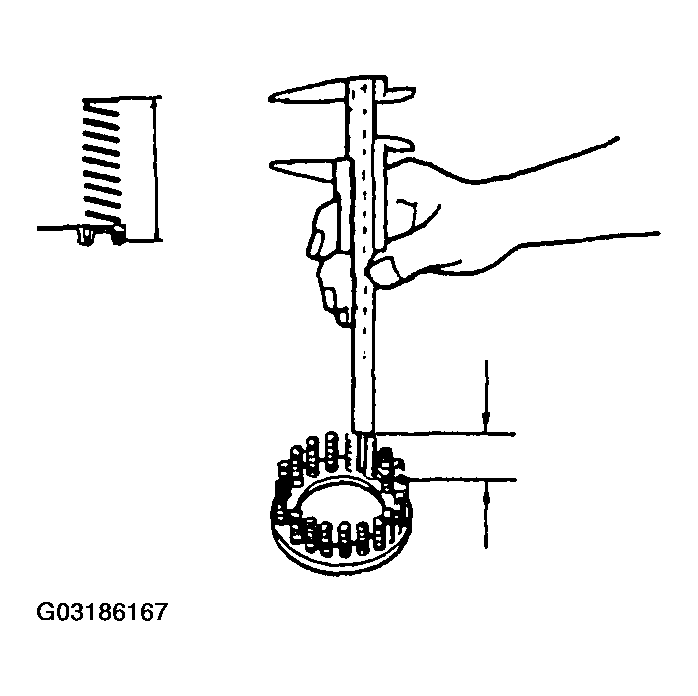

    Fig 1: Measuring Spring Free Length
    G03186167
