Assembly Procedure

Install The Oil Strainer And Rubber Balls Into The Main Control Valve Body.

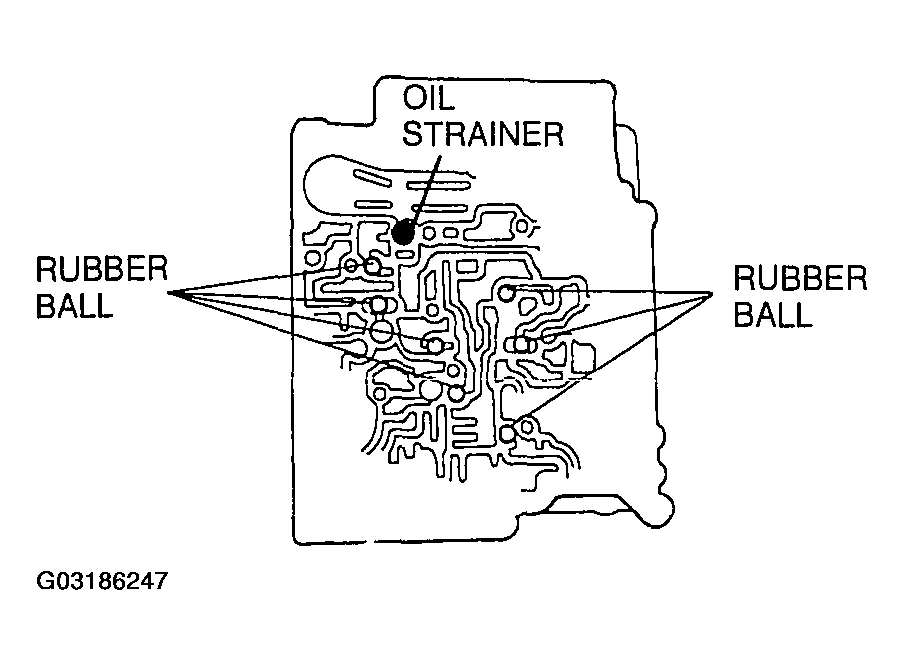

Fig 1: Installing Oil Strainer & Rubber Balls Into Main Control Valve Body
Install the oil strainer and rubber ball into the rear control valve body.

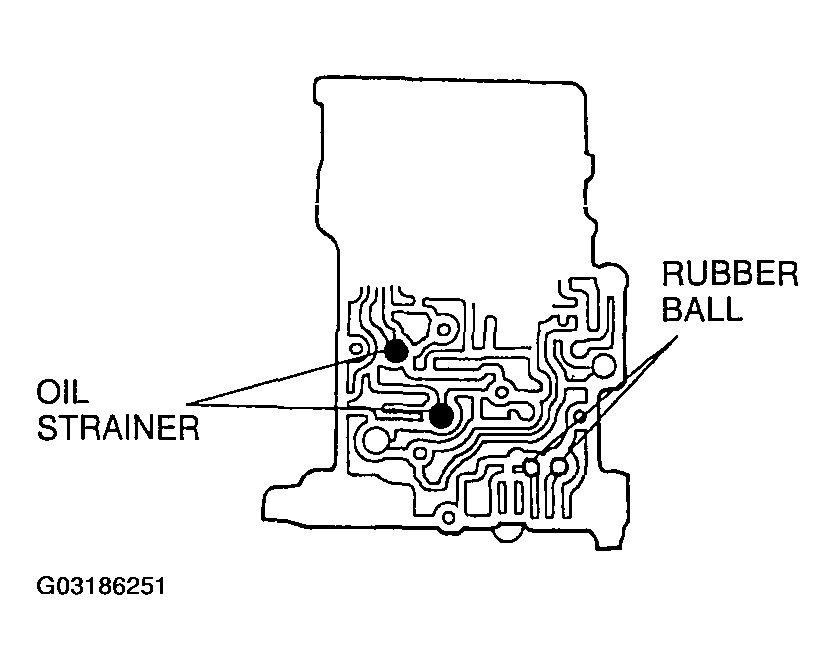

Fig 2: Installing Oil Strainer & Rubber Ball Into Rear Control Valve Body
Set the new main/rear front gasket, rear separator plate, and new main/rear rear gasket on the rear control valve body. Refer to the figure to distinguish the two gaskets.

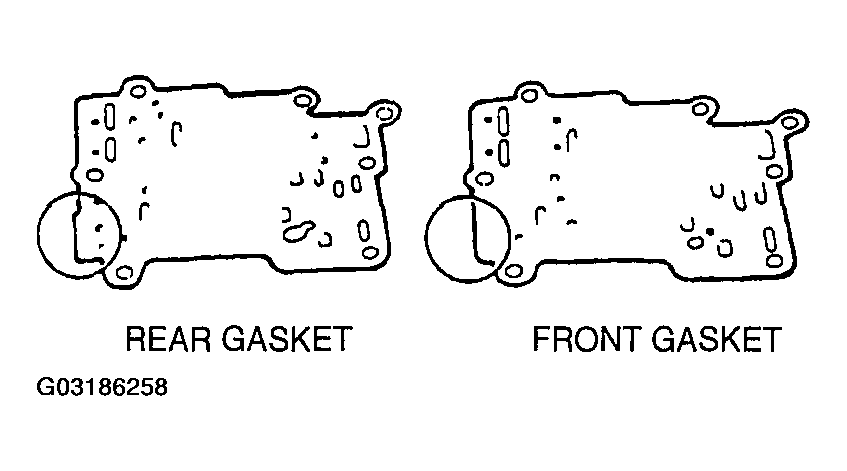

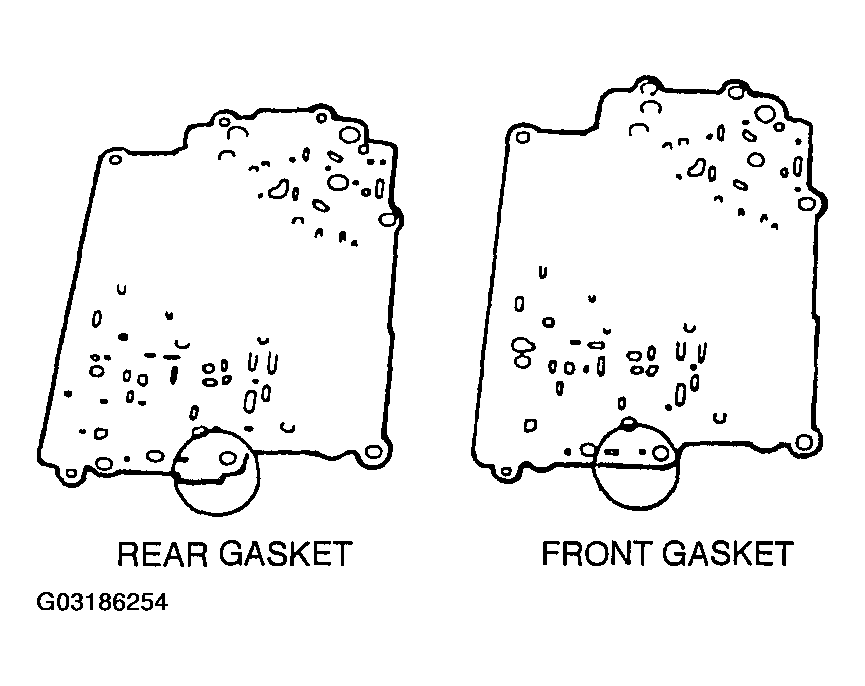

Fig 3: Identifying Front & Rear Gasket
Set the rear control valve body onto the main control valve body.
Install and hand-tighten the bolts shown in the figure. Each type of bolt has a different letter on its head. Match the bolt letter with the letter stamped next to its installation hole on the valve body.

Fig 4: Installing Rear Control Valve Body Bolts
Install the oil strainers and rubber balls into the main control valve body.

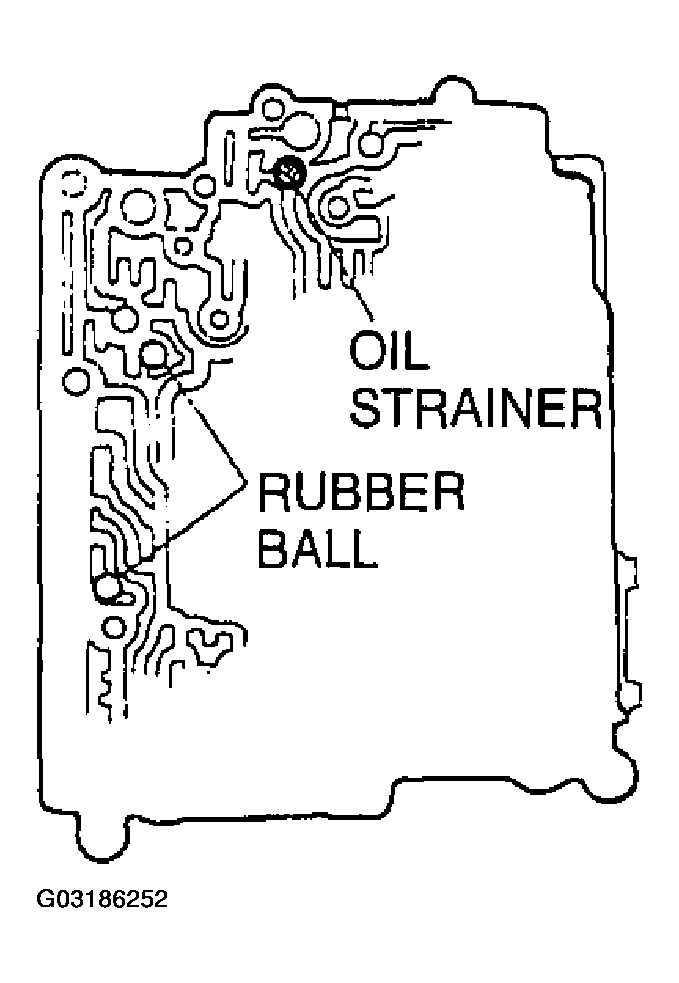

Fig 5: Installing Oil Strainers &D Rubber Balls Into Main Control Valve Body
Install the oil strainer and rubber balls into the premain control valve body.

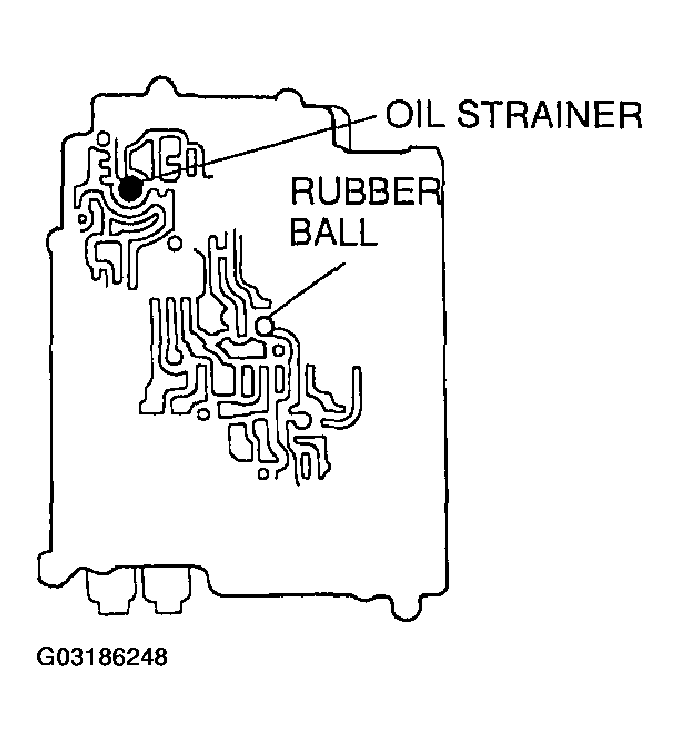

Fig 6: Installing Oil Strainer & Rubber Balls Into Premain Control Valve Body
Install the jet orifice and nuts to the main separator plate.
Tightening Torque
1. 1.7-2.2 N.m {17-23 kgf.cm, 15-19 in.lbf}

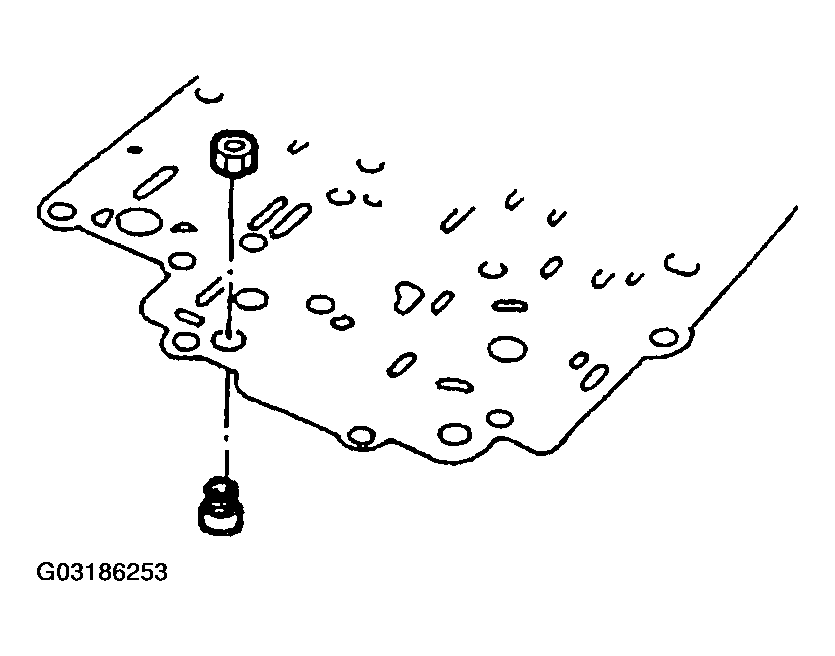

Fig 7: Installing Jet Orifice & Nuts To Main Separator Plate
Set a new premain/main rear gasket, main separator plate, and new premain/main front gasket on the premain control valve body. Refer to the figure to distinguish the two gaskets.

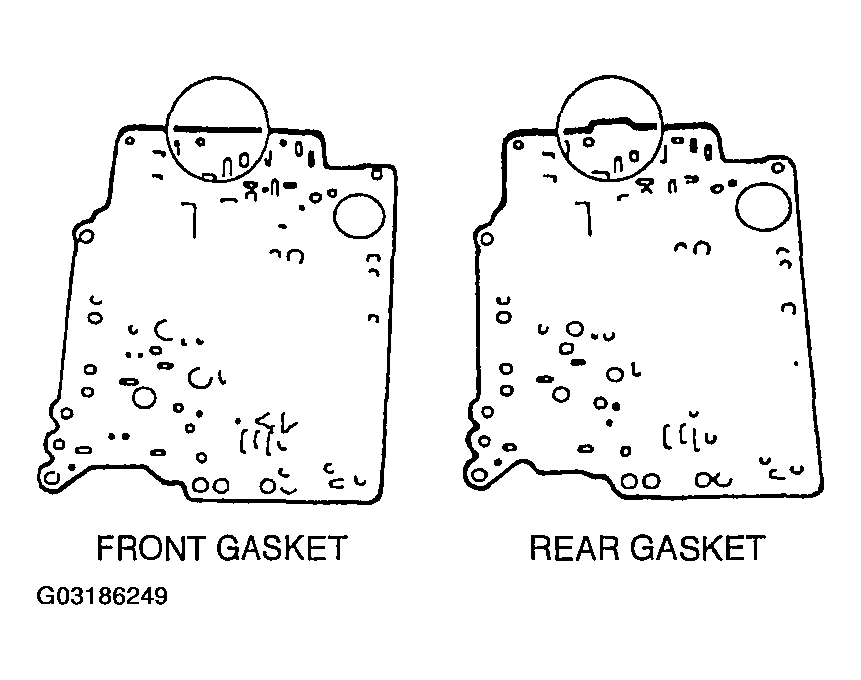

Fig 8: Identifying Front & Rear Gaskets
Set the premain control valve body onto the main control valve body.

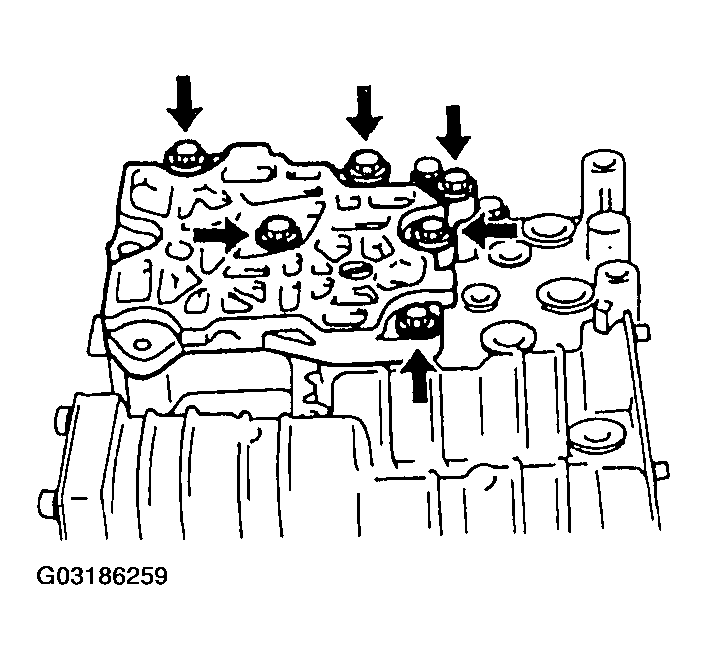

Install and hand-tighten the bolts indicated by the arrows. Each type of bolt has a different letter on its head. Match the bolt letter with the letter stamped next to its installation hole on the valve body.

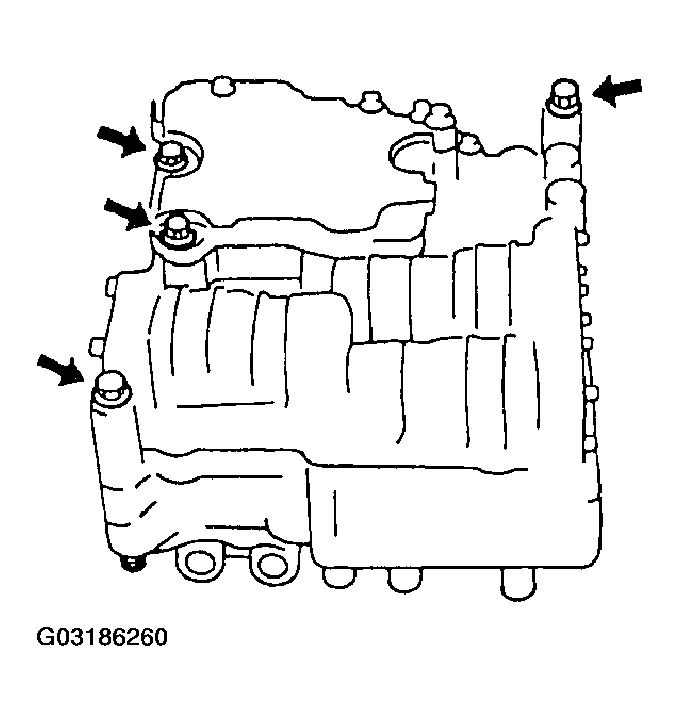

Fig 9: Installing Premain Control Valve Body
Install the rubber ball into the premain control valve body.

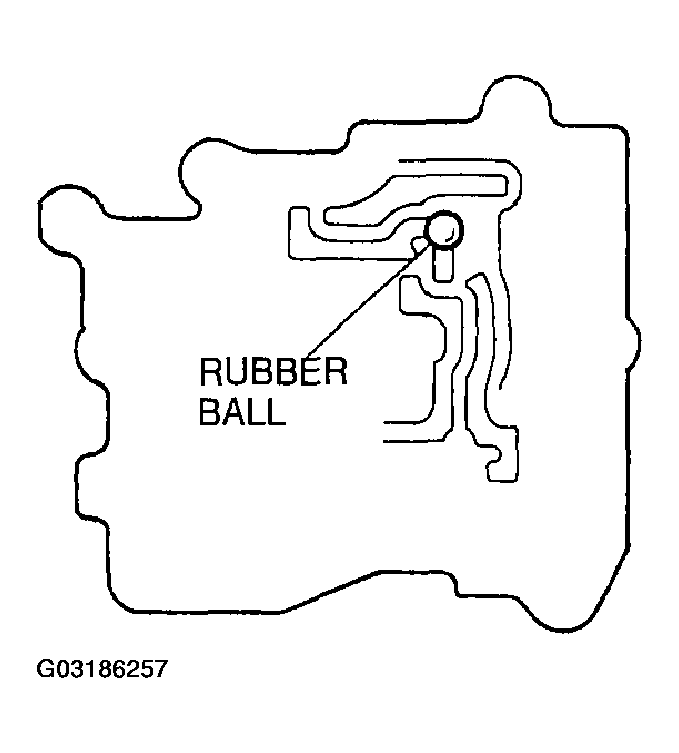

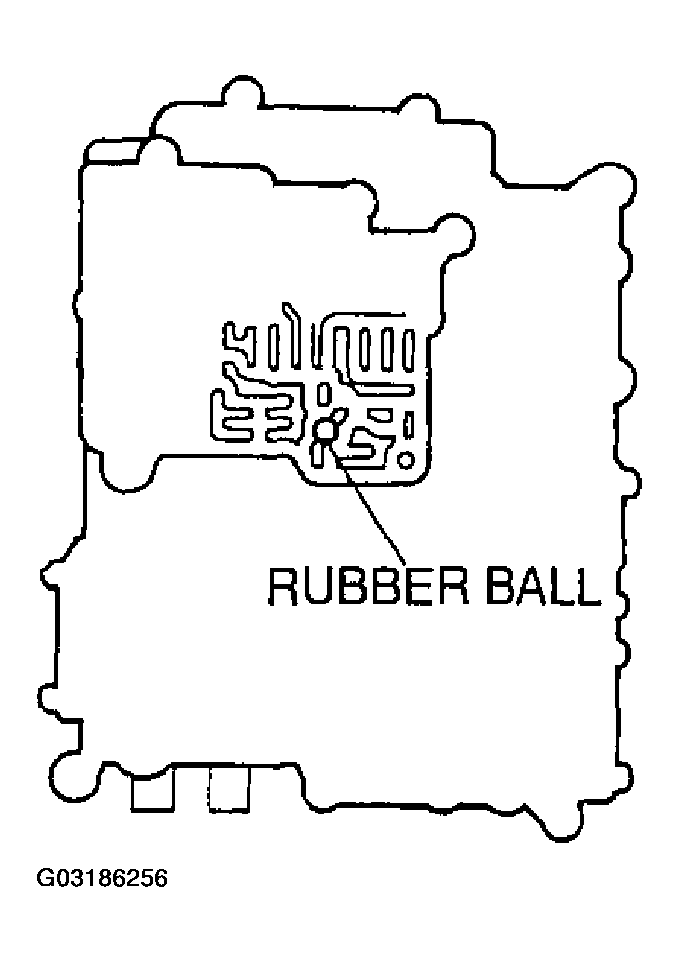

Fig 10: Installing Rubber Ball Into Premain Control Valve Body
Install the rubber ball into the front control valve body.

Fig 11: Installing Rubber Ball Into Front Control Valve Body
Set a new front/premain rear gasket, premain separator plate, and new front/premain front gasket on the front control valve body. Refer to the figure to distinguish the two gaskets.

Fig 12: Identifying Front & Rear Gaskets
Set the front control valve body onto the premain control valve body.
Install and hand-tighten the bolts indicated by the arrows. Each type of bolt has a different letter on its head. Match the bolt letter with the letter stamped next to its installation hole on the valve body.

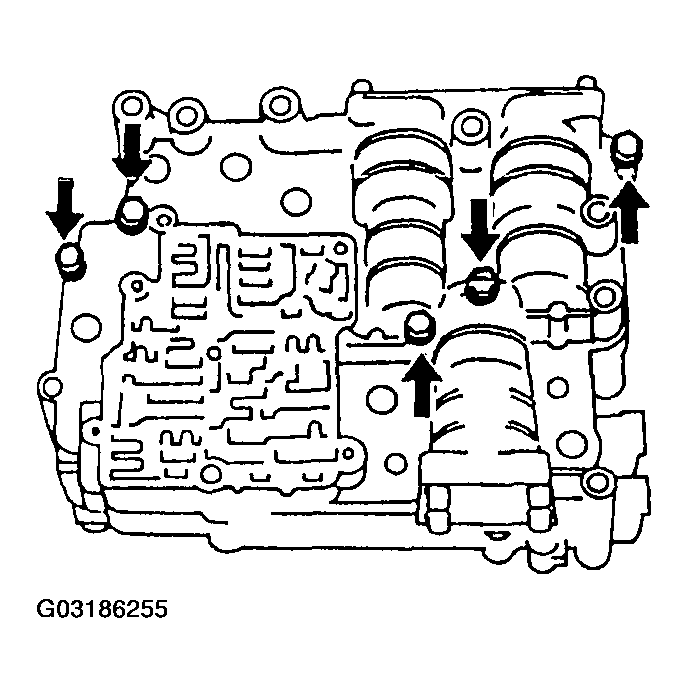

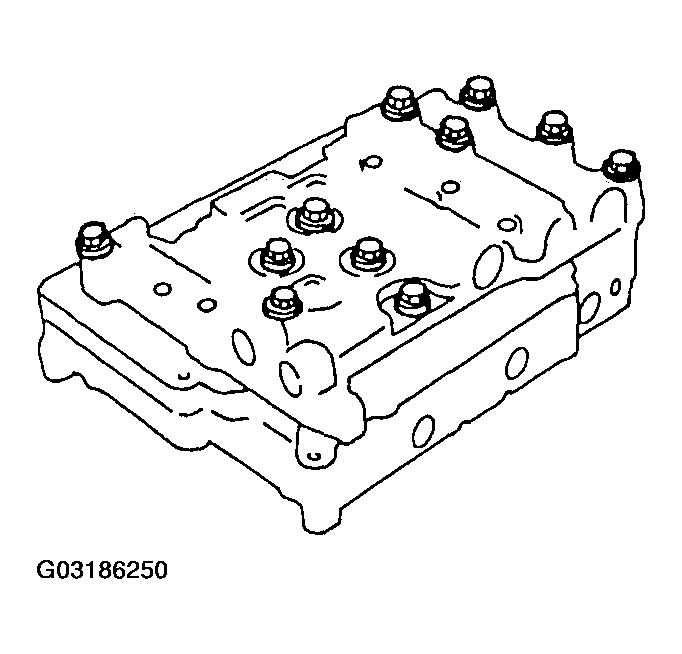

Fig 13: Installing Front Control Valve Body
Install four control valve body bolts as shown for alignment.

Fig 14: Installing Four Control Valve Body Bolts
Tighten the mounting bolts.
1. Tighten the front control valve body.
  Tightening Torque:
  1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
2. Tighten the rear control valve body.
Tightening Torque
1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
Apply ATF to new O-rings and install them onto the solenoid valve.
Install the solenoid valve.
Tightening Torque
1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
Apply ATF to new O-ring and install them onto the oil pipe component.
Install the oil pipe component.
Tightening Torque
1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
Install the oil baffle.
Tightening Torque
1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
Install the TFT sensor.
Tightening Torque
1. 6.5-7.8 N.m {66-80 kgf.cm, 58-69 in.lbf}
