Control Valve Body Assembly: Notes

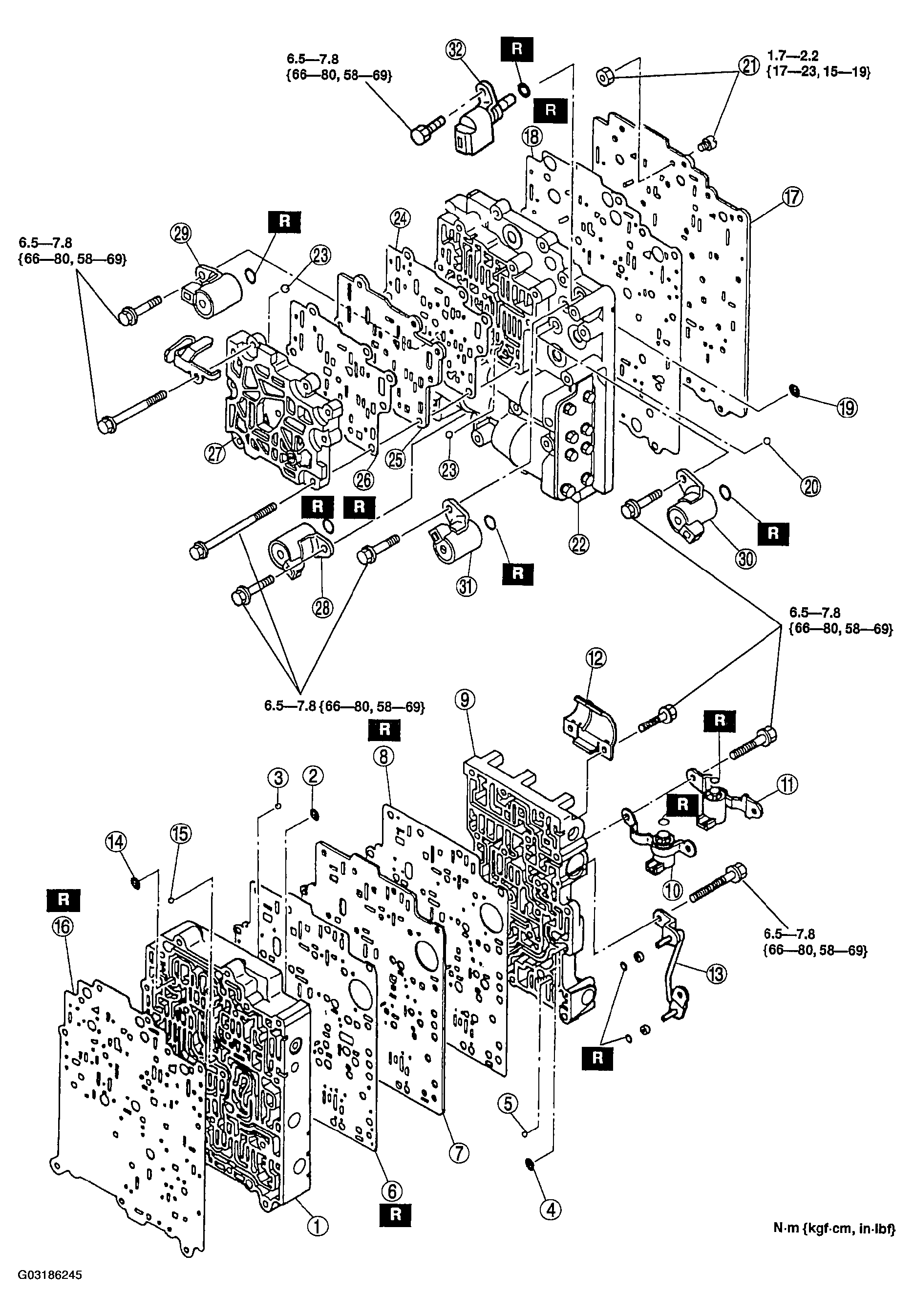

Fig 1: Exploded View Of Control Valve Body

G03186245

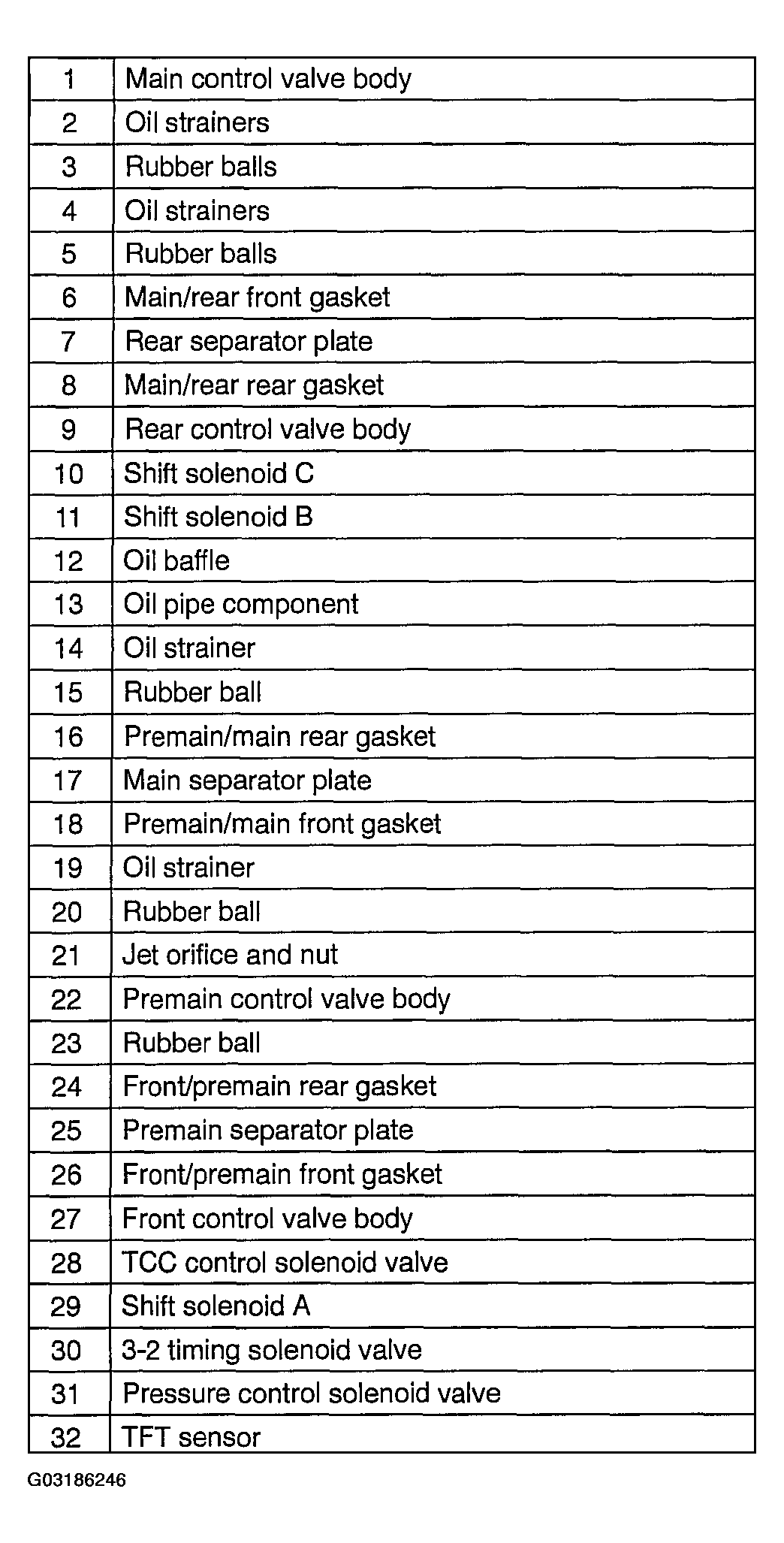

Fig 2: Identifying Control Valve Body Components

G03186246
