Backlash Inspection

• If not as specified, replace parts as necessary. (Refer to DIFFERENTIAL DISASSEMBLY .) (Refer to DIFFERENTIAL ASSEMBLY .)

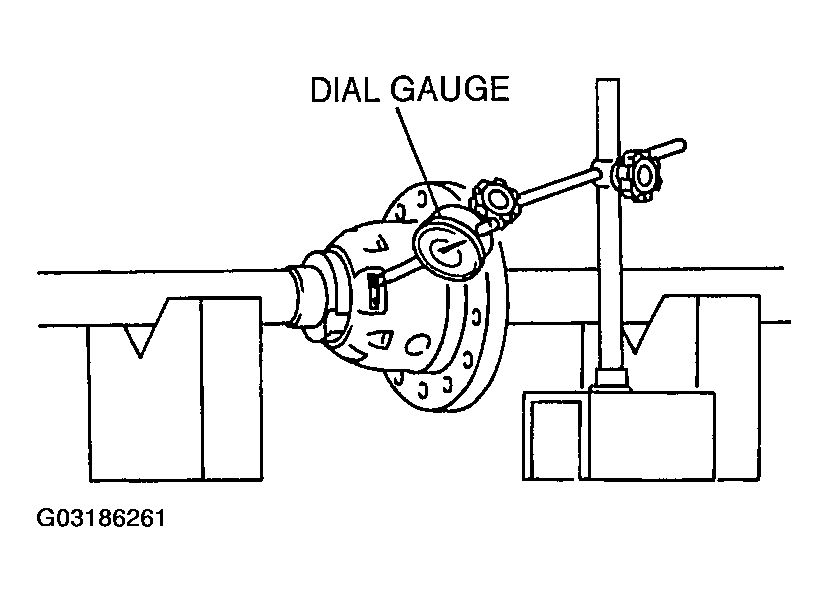

Fig 1: Measuring Side Gear Backlash

Backlash Standard:

1. 0.025-0.10 mm {0.0010-0.0039 in}
2. Maximum: 0.10 mm {0.0039 in}
