Assembly Procedure

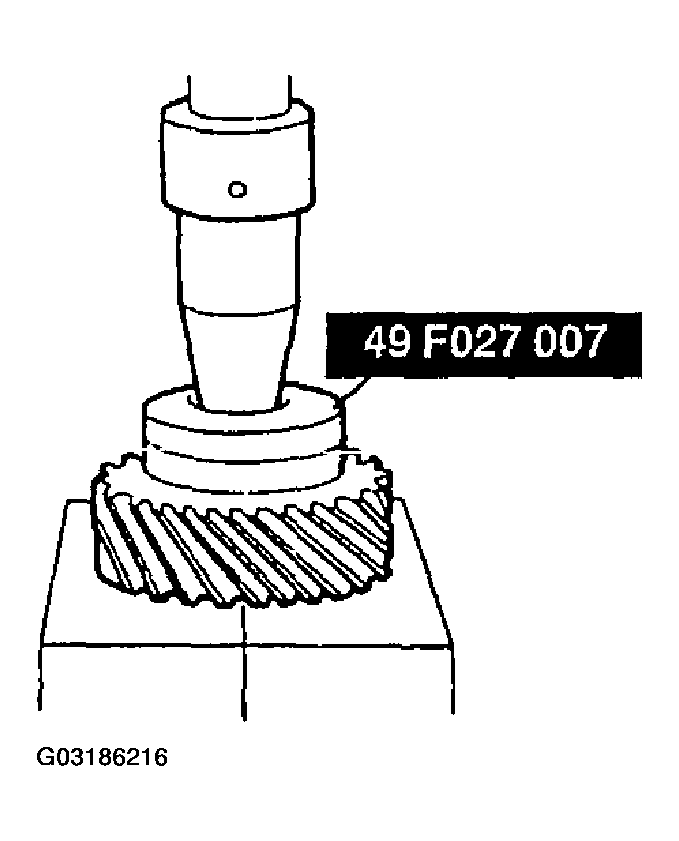

- Press the new bearing races in using the SST .
- Install a new bearing onto the idle gear shaft, and install the idler gear, spacer, and bearing component.

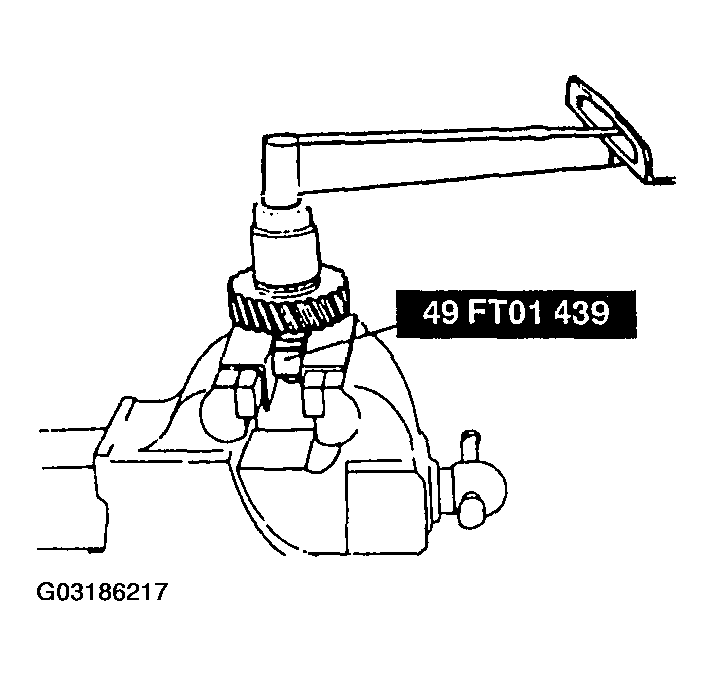

- Secure the SST and the idler gear shaft component in a vise.
- Install the locknut.
Tightening Torque
- 148-196 N.m {15-20 kgf.m, 109-144 ft.lbf}
CAUTION:- Use protective plates in the vise to prevent damage to the idler gear.
NOTE:- Read the preload when the idler shaft starts to turn.
- Secure the idler gear in a vise.NOTE:
- Measure several times and calculate the average value.

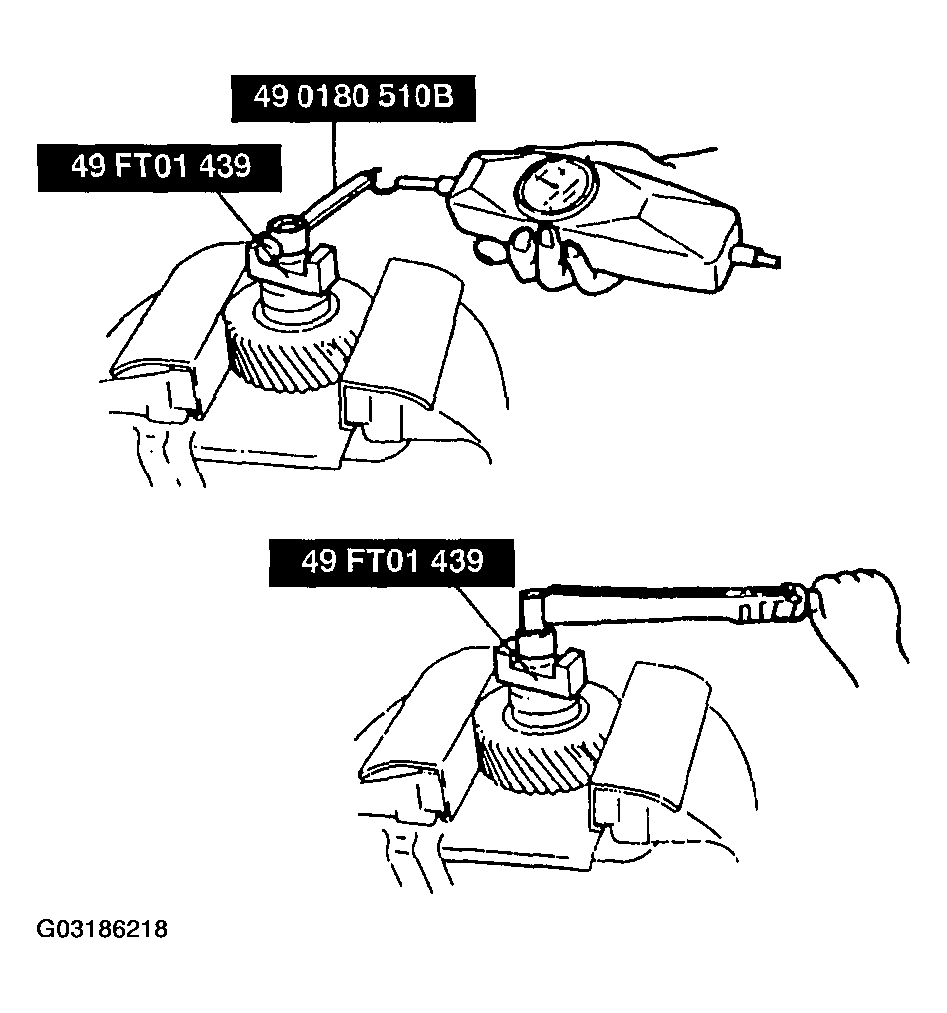

- Measure the bearing preload using the SSTs
.
- If the specified preload cannot be obtained within the specified tightening torque, adjust it by selecting the proper spacer from below.
NOTE:- Preload is reduced by increasing the thickness of the spacer or increased by reducing the thickness.
Thickness Of Spacer
THICKNESS OF IDLER GEAR SPACER (mm {in})4.540(0.179} 4.575(0.180} 4.610(0.181} 4.645(0.183} 4.680(0.184} 4.715(0.186} 4.750(0.187} 4.785(0.188} 4.820(0.190} 4.855(0.191} 4.890(0.193} 4.925(0.194} 4.960(0.195} 4.995(0.197} 5.030(0.198} 5.065(0.199} 5.100(0.201} 5.135(0.202} 5.170(0.204} 5.205(0.205} 5.240(0.206} 5.275(0.208} 5.310(0.209} - Pull Scale Reading
- 0.3-8.8 N {0.03-0.9 kgf, 0.07-1.98 lbf}
Preload
- 0.03-0.8 N.m {0.3-9.0 kgf.cm, 0.27-7.8 in.lbf}
- Apply ATF to a new O-ring and install it to the idler gear shaft.
O-Ring Inner Diameter:
- 33.0 mm {1.30 in}
