Locknut Disassembly Note

CAUTION:
  • Use protective plates in the vise to prevent damage to the SST.
  1. Secure the SST  and the idler gear component in a vise.
  2. Remove the locknut.

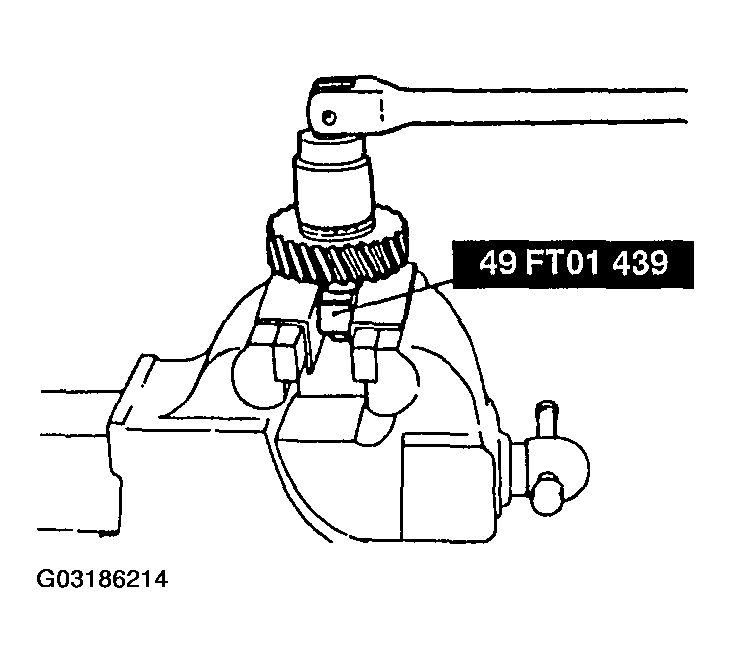

    Fig 1: Removing Locknut
    G03186214
