Oil Pump Inspection

1. Measure the clearance between the end of the oil pump housing and the outer rotor and inner rotor at four places along their circumferences.
   • If not as specified, replace the oil pump.

   Clearance

   1. Standard: 0.02-0.04 mm {0.0008-0.0015 in}
   2. Maximum: 0.05 mm {0.0019 in}

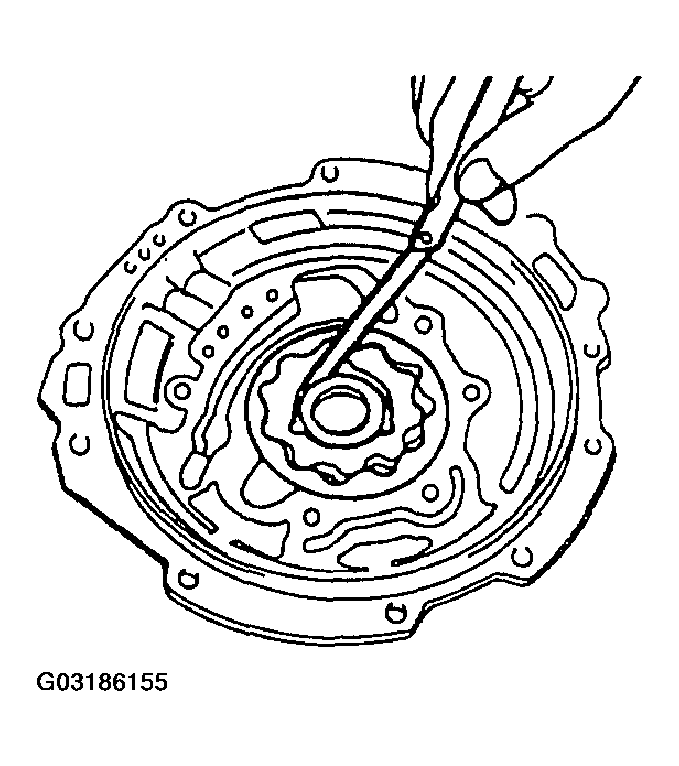

   Fig 1: Measuring Clearance Between End Of Oil Pump Housing & Outer Rotor & Inner Rotor


2. Measure the clearance between the oil pump boss and the inner rotor.
   • If not within the specification, replace the oil pump.

   Oil Clearance

   1. Standard: 0.040-0.115 mm {0.00157-0.00453 in}
   2. Maximum: 0.125 mm {0.00492 in}
   Fig 2: Measuring Clearance Between Oil Pump Boss & Inner Rotor


3. Measure the spring free length.
   • If not as specified, replace the oil pump.

   Specification

   OIL PUMP SPRING SPECIFICATIONS



   Outer Diameter (mm {in})	Free Length (mm {in})	No. Of Coils	Wire Diameter (mm {in})
   13.0 {0.512}	53.0 {2.09}	12.0	1.2 {0.047}

4. Measure the spool and inspect for wear.
   • If not as specified, replace the oil pump.

Outer Diameter

1. Standard: 13.970-13.980 mm {0.5500-0.5503 in}
2. Minimum: 13.970 mm {0.5500 in}

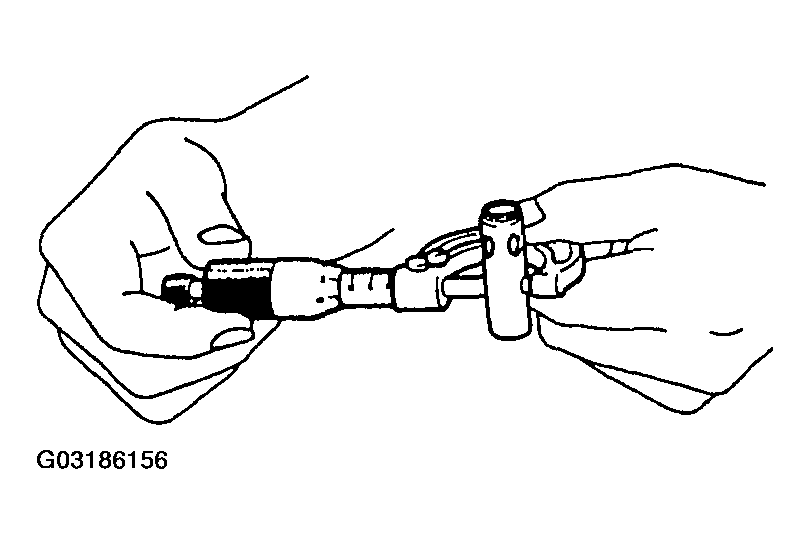

Fig 3: Measuring Spool Outer Diameter
