Key Interlock Solenoid: Millenia

  1. Disconnect negative battery cable. Remove instrument cluster. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. Disconnect key interlock solenoid connector.
  2. Inspect for continuity between terminals "B" and "C". See Fig 1 . Continuity should be present. Replace key interlock solenoid as needed. See KEY INTERLOCK SOLENOID  under REMOVAL & INSTALLATION. Connect the key interlock solenoid connector. Install the instrument cluster. Connect the negative battery cable.

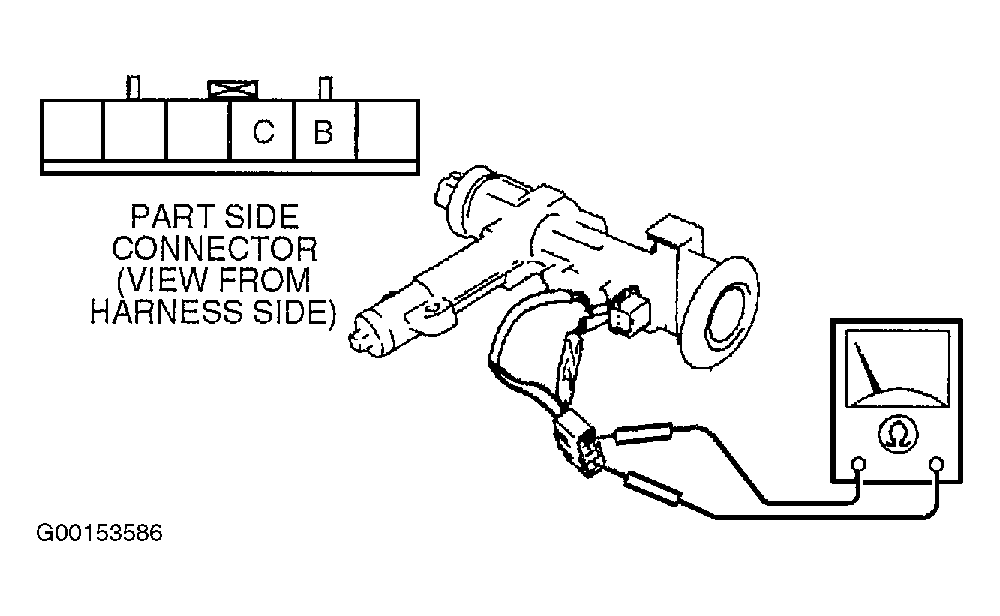

Fig 1: Testing Key Interlock Solenoid (Millenia)
G00153586Courtesy of MAZDA MOTORS CORP.
