Low And Reverse Brake Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

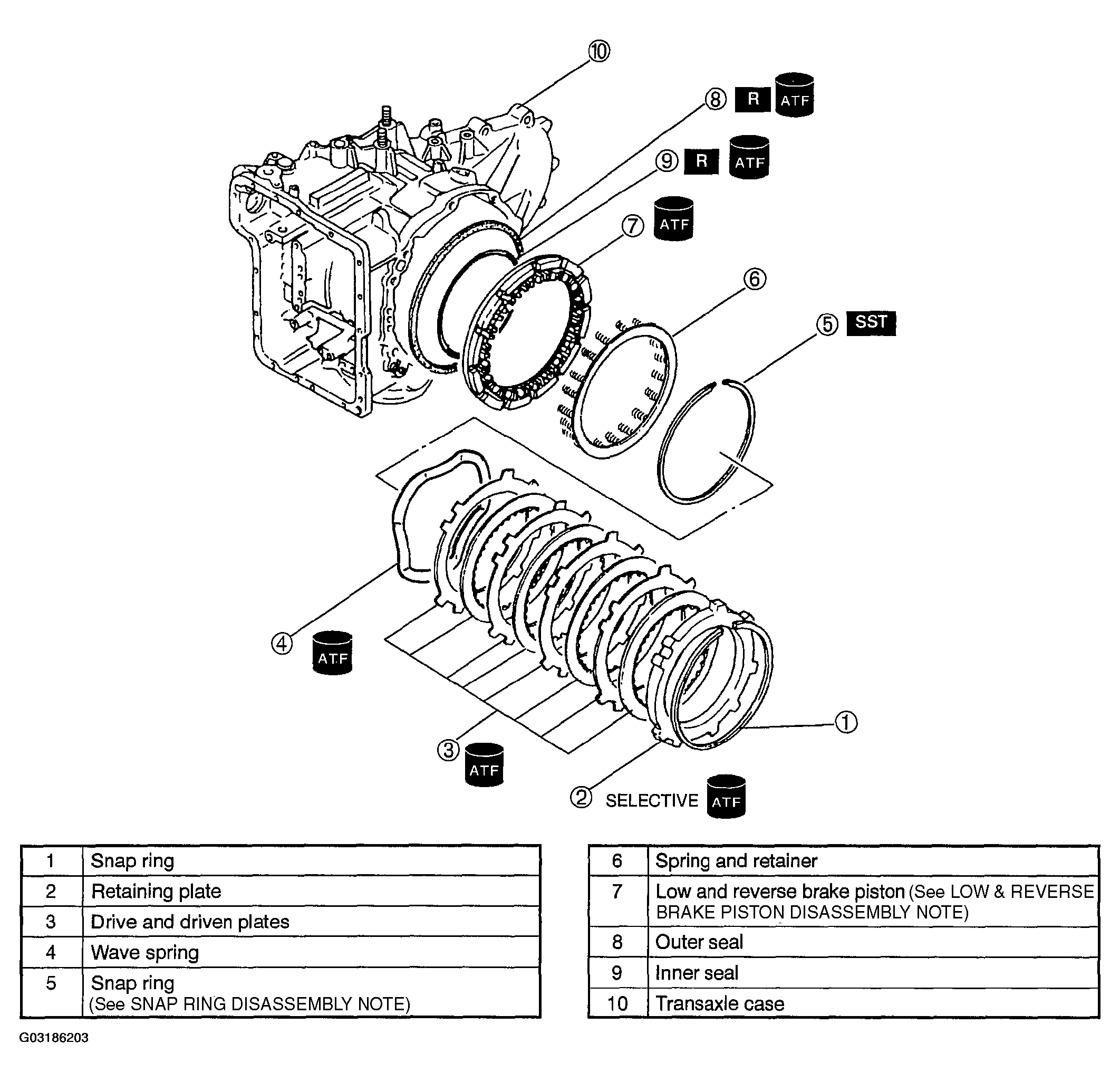

    Fig 1: Disassembling Low & Reverse Brake
    G03186203
