Oil Pump Cover Disassembly Note

  1. Loosen the mounting bolts evenly in the pattern shown and remove the oil pump cover from the oil pump housing.

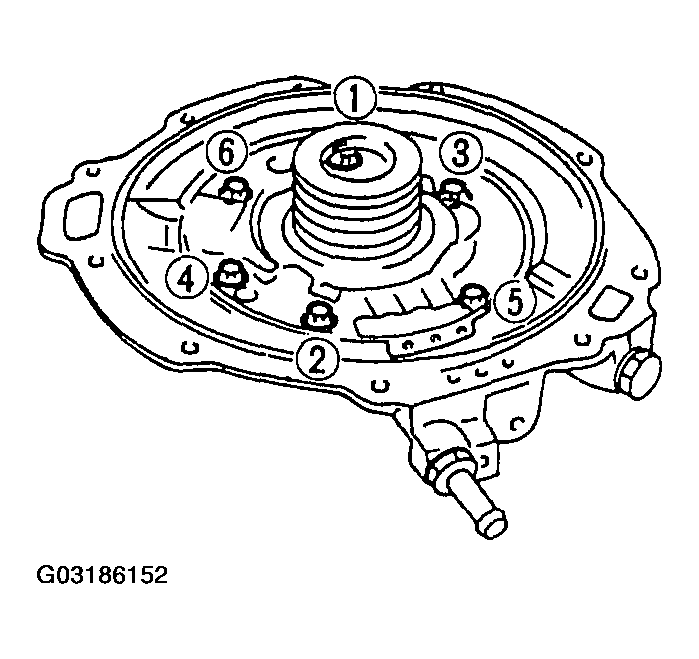

Fig 1: Oil Pump Cover Bolt Loosening Sequence
G03186152
