Key Interlock Control Unit: Miata

Remove front side trim. Turn ignition on. Inspect terminal voltages. See Fig 1 . If voltage is not as specified, repair wiring harness and/or key lock unit.

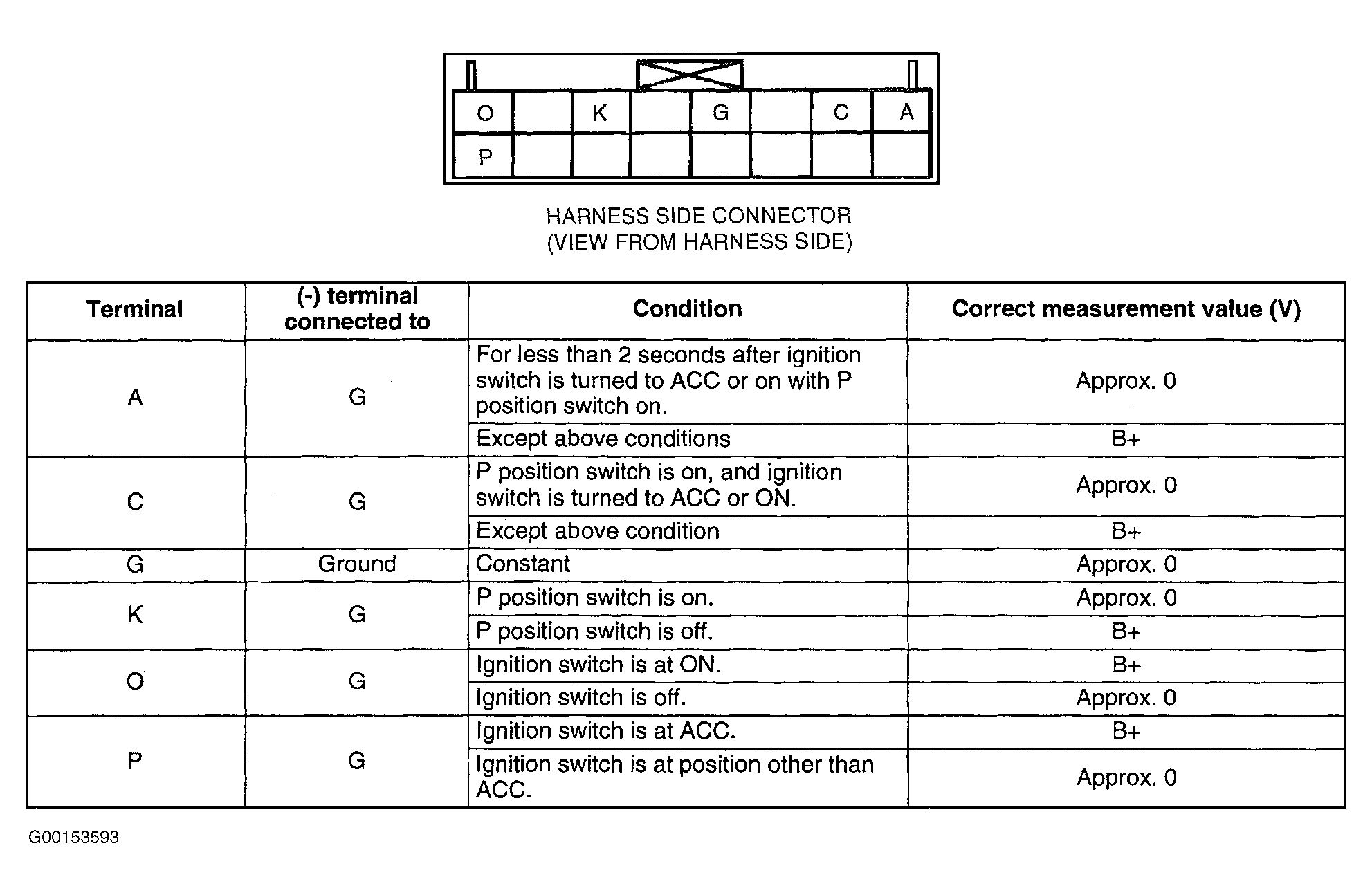

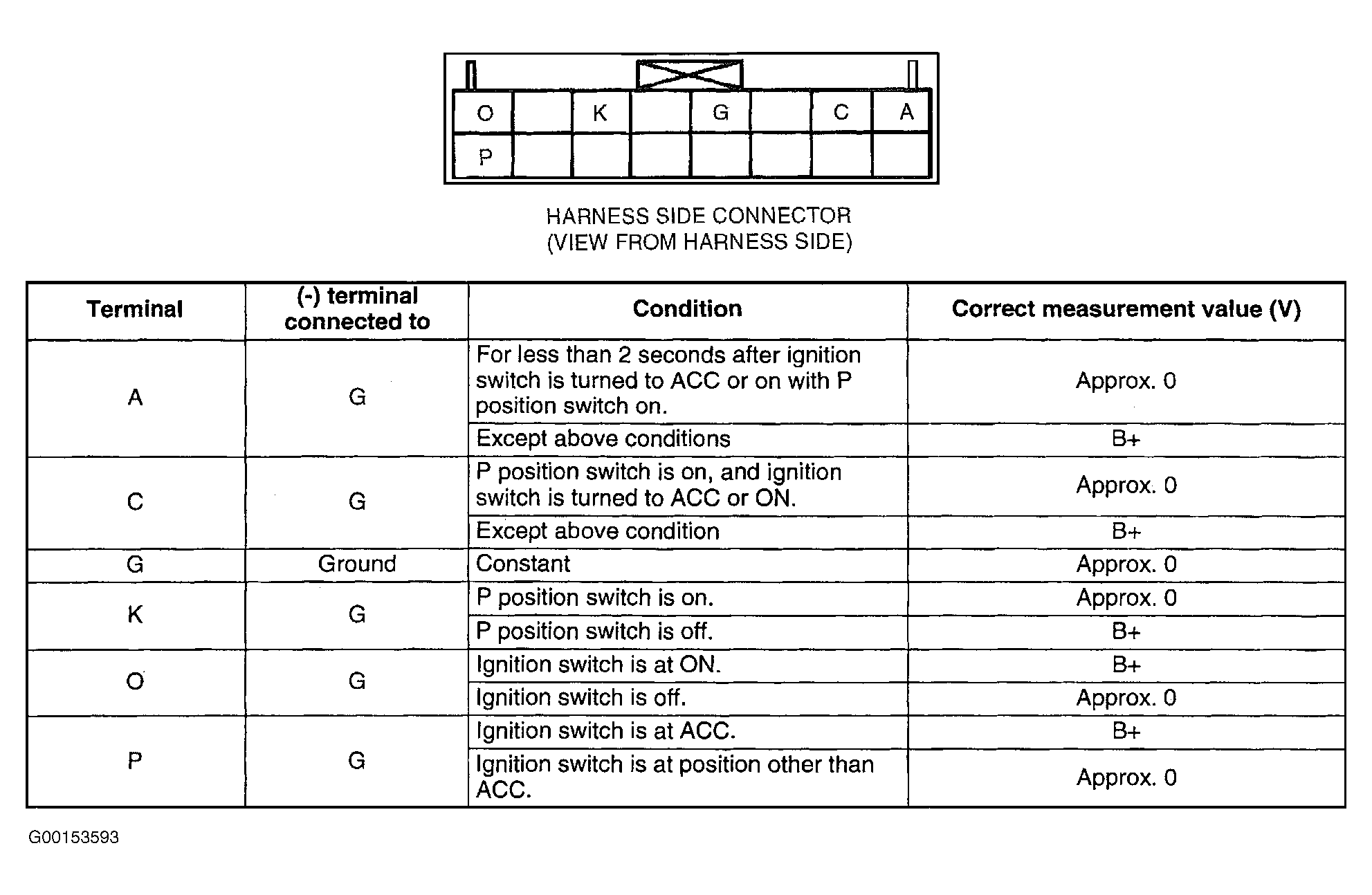

Fig 1: Key Lock Control Unit Pin Voltage Inspection Chart

Courtesy of MAZDA MOTORS CORP.
