Key Interlock Resistor: MPV

Disconnect negative battery cable. Disconnect key interlock resistor connector. Measure resistance between component connector terminals. See Fig 1 . Resistance should be 6.65-7.35 ohms. Replace resistor as needed. Connect negative battery cable.

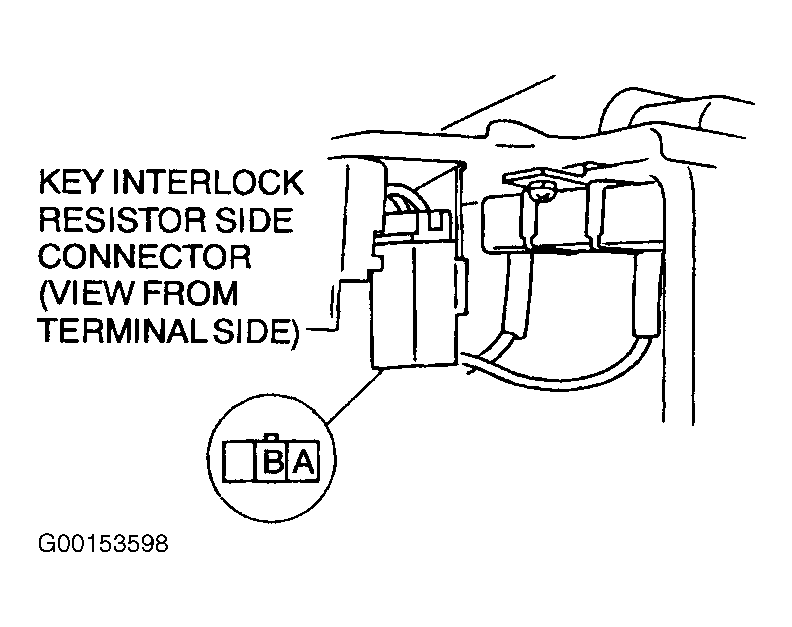

Fig 1: Identifying Key Interlock Resistor Connector Terminals

Courtesy of MAZDA MOTORS CORP.
