Switch Operation Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between terminals C and D.
    • If there is no continuity, replace the TCS OFF switch.

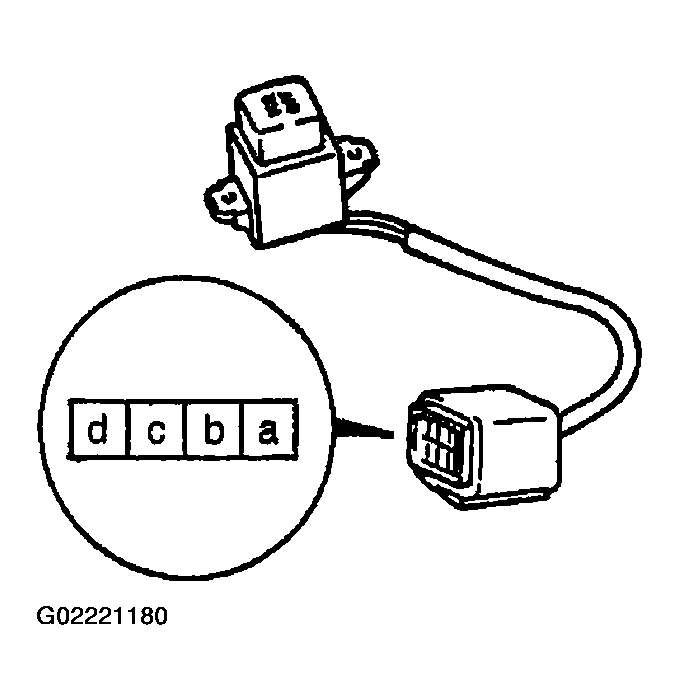

      • Fig 1: Identifying TCS OFF Switch Connector
      G02221180Courtesy of MAZDA MOTORS CORP.
