Without Using SST (WDS Or Equivalent)

CAUTION: Connecting the wrong DLC terminal may possibly cause a malfunction. Carefully connect the specified terminal only.
  1. Connect the TBS terminal at DLC to body ground using a jumper wire.
  2. Turn the ignition key to ON (engine OFF).

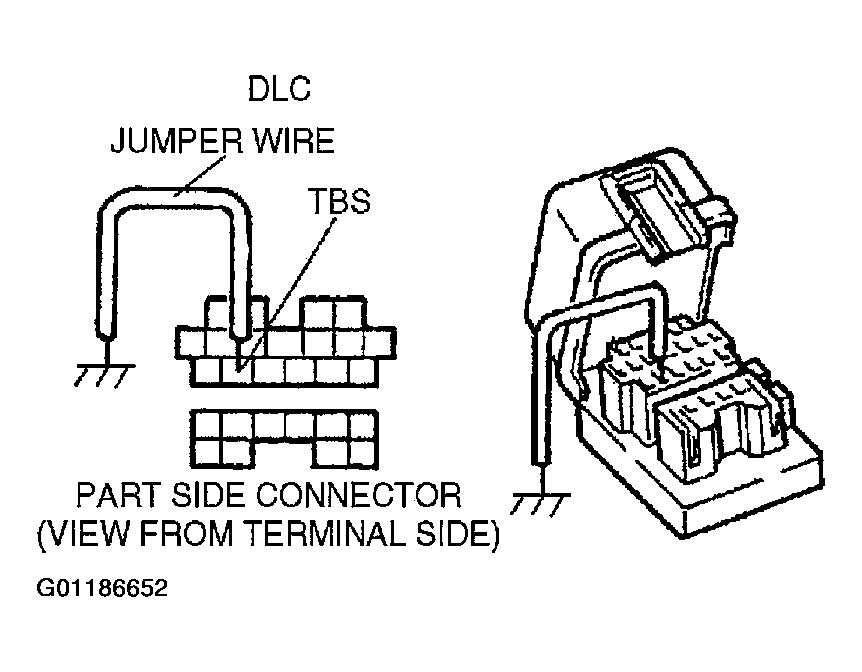

    Fig 1: Identifying DLC-2 TBS Terminal
    G01186652Courtesy of MAZDA MOTORS CORP.
  3. After the ABS warning light illuminates for 3 sec,  the ABS warning light indicates DTCs.
  4. After completion of repairs, clear DTCs.
    Fig 2: Identifying Warning Light Flashing Pattern (DTC 22 Shown)
    G01186653Courtesy of MAZDA MOTORS CORP.
