Base Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Cut away all of the original sealant using a razor.
Clean and decrease the ceramic coating on the glass and the base.
Apply primer to the bonding area of the glass and the base.
CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface. Otherwise, the primer may not properly bond to the surface of the glass.
Apply a 3.0 mm {0.12 in} layer of sealant to the base.

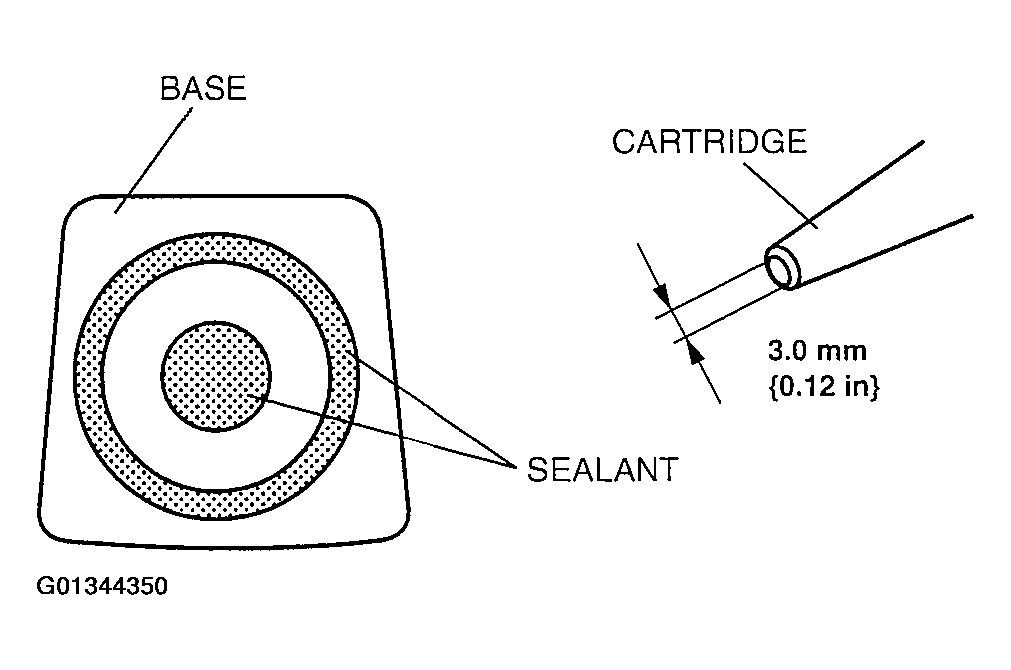

Fig 1: Measuring Cartridge Area
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Use only glass primer on the glass, and body primer on the base. Allow the primer to dry for approx. 30 min.
Center the base in the ceramic coating and press it onto the glass.

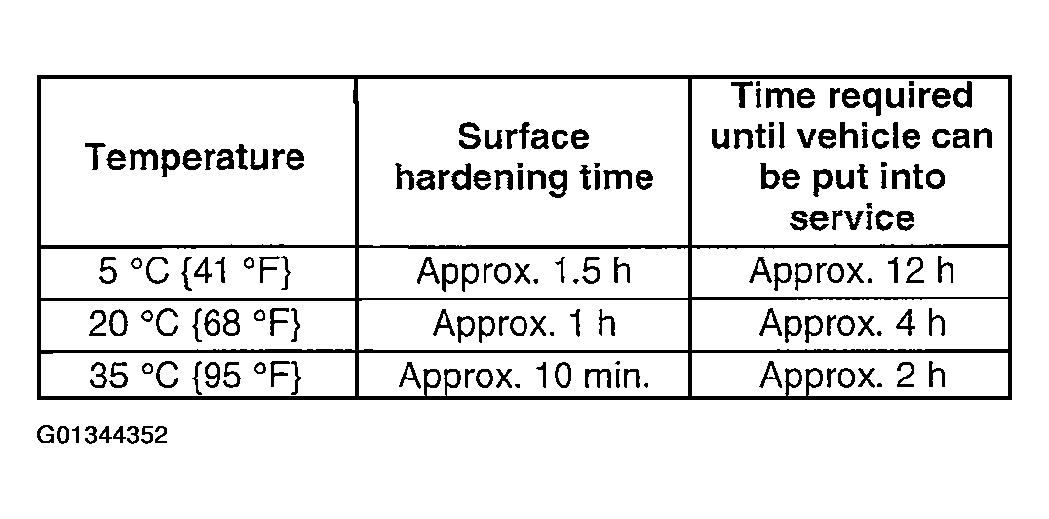

Fig 2: Sealant Specifications
Courtesy of MAZDA MOTORS CORP.
Use isopropyl alcohol to remove any excess repair sealant.

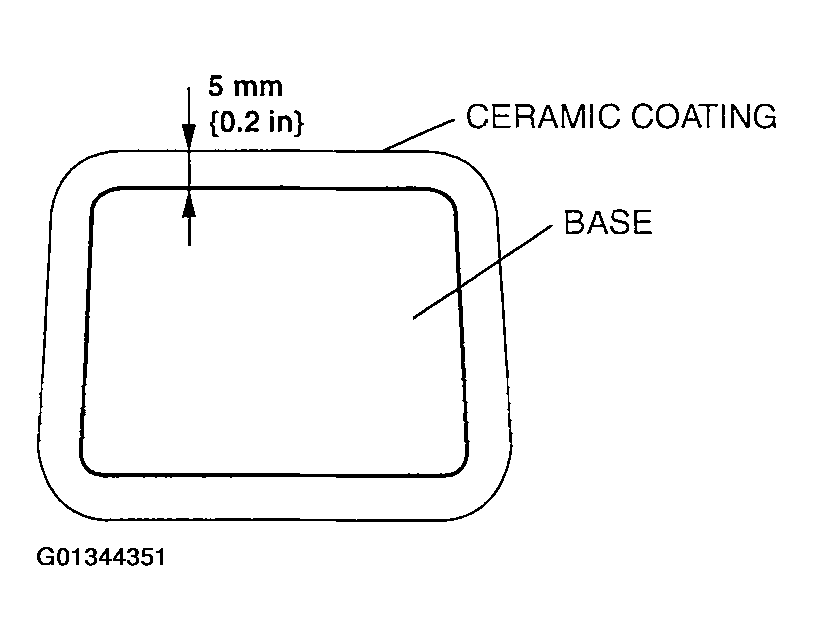

Fig 3: Measuring Ceramic Coating Thickness
Courtesy of MAZDA MOTORS CORP.
Install the rearview mirror.
