Power Outer Mirror Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disengage clips using a tape-wrapped flathead screwdriver.

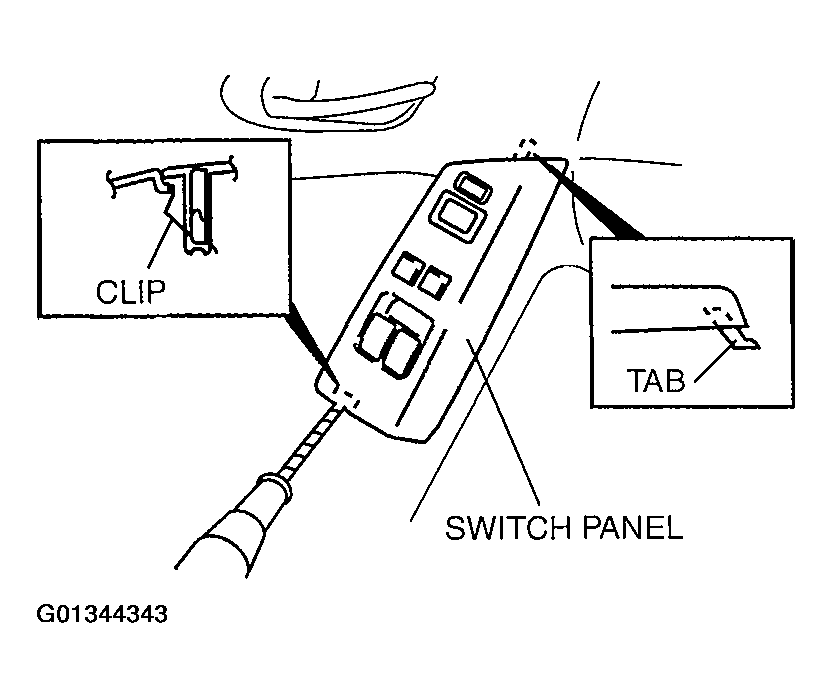

    Fig 1: Removing/Installing Power Outer Mirror Switch
    G01344343Courtesy of MAZDA MOTORS CORP.
  3. Remove the switch panel from the front door trim keeping the tab from catching.
  4. Disconnect the power window main switch connector and power outer mirror switch connector.
  5. Remove the screws and the power outer mirror switch.

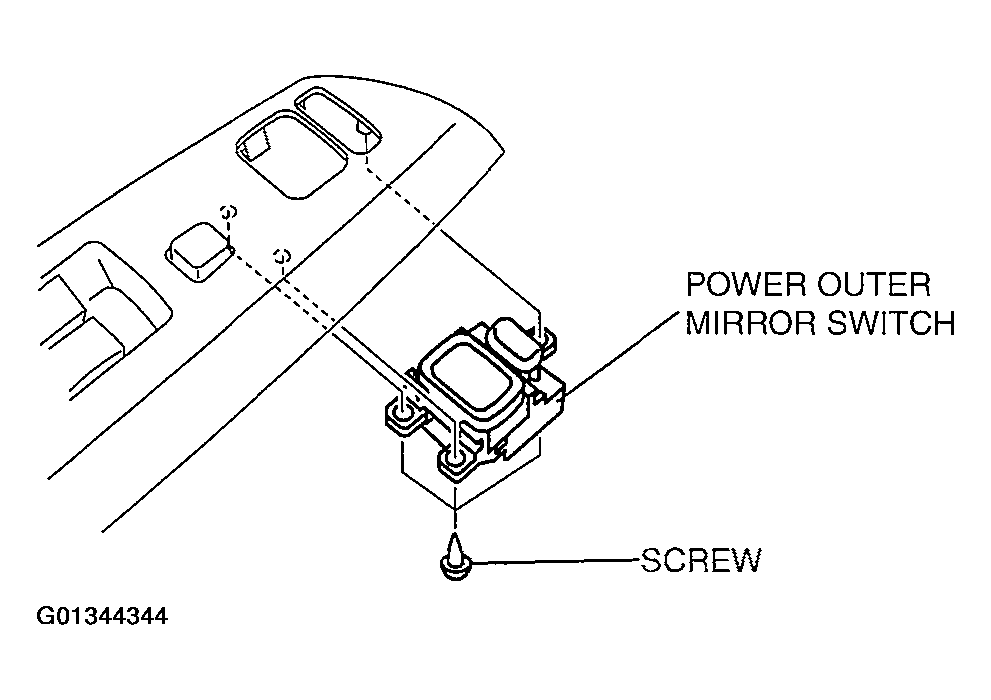

    Fig 2: Removing Power Outer Mirror Switch
    G01344344Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
