Power Window SUBSWITCH Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify continuity as indicated.

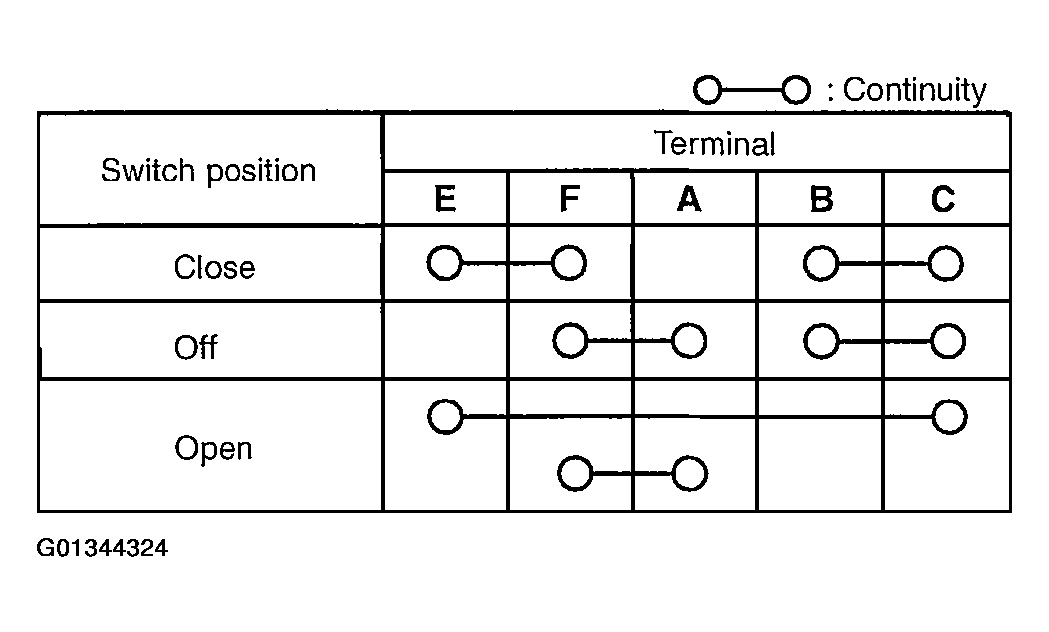

Fig 1: Checking Power Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.
- If not as indicated, replace the power window subswitch.

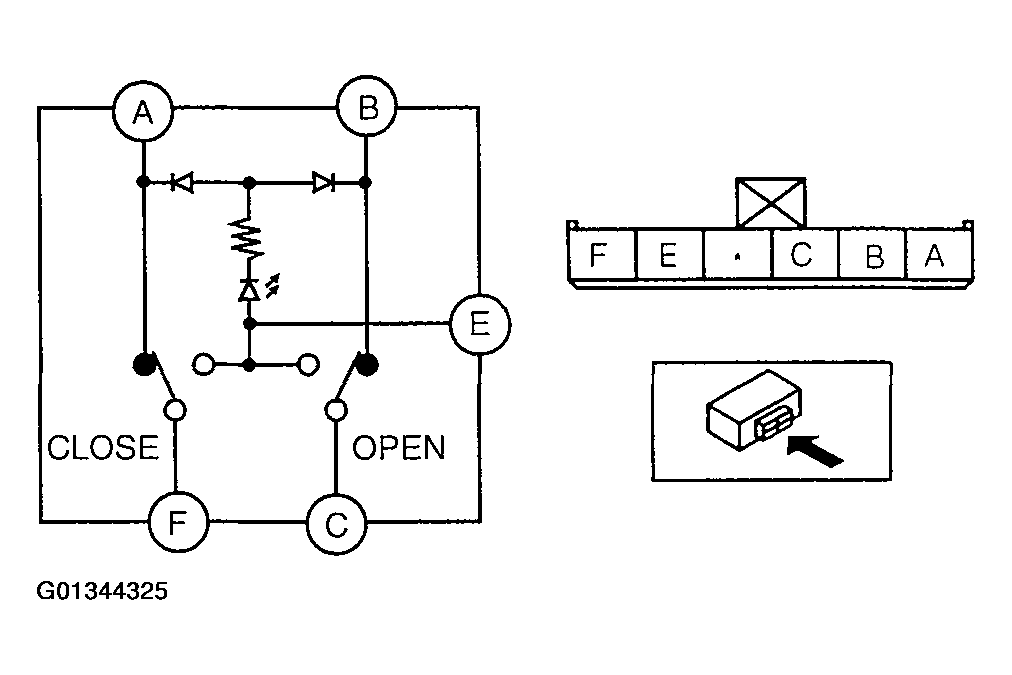

Fig 2: Inspecting Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Connect battery positive voltage to terminal E and ground to the terminal A. Verify that continuity exists.
- If not as specified, replace the power window subswitch.
Connect battery positive voltage to terminal E and ground to the terminal B. Verify that continuity exists.

If not as specified, replace the power window subswitch.
