Power Window SUBSWITCH Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Using a flathead screwdriver wrapped with protective tape, pry up the rear of the switch panel and detach the clip.

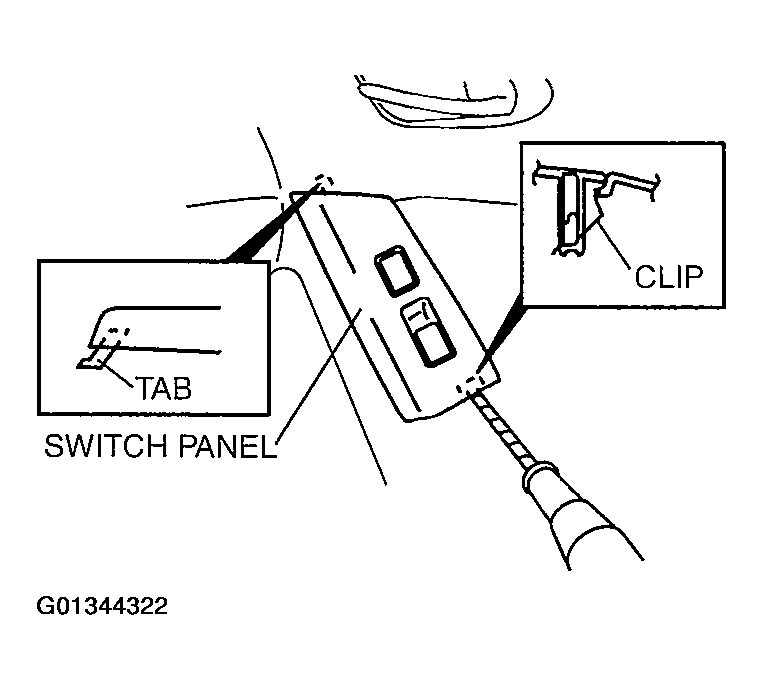

Fig 1: Removing/Installing Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Remove the switch panel from the front door trim keeping the tab from catching.
Disconnect the power window subswitch connector.
Remove the screws, then remove the power window subswitch.

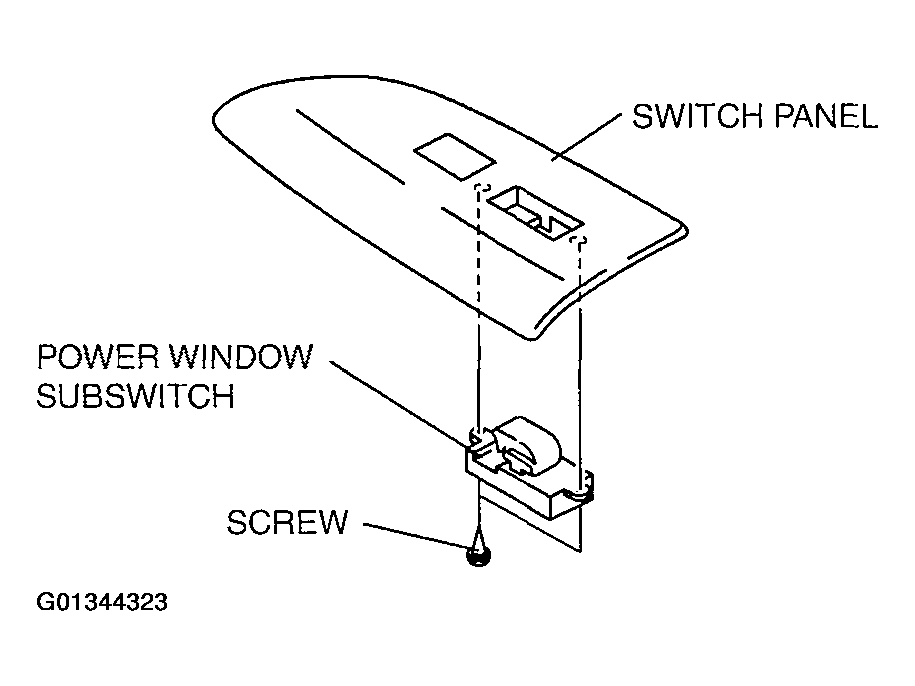

Fig 2: Removing Power Window Subswitch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
