Auto-Dimming Mirror
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

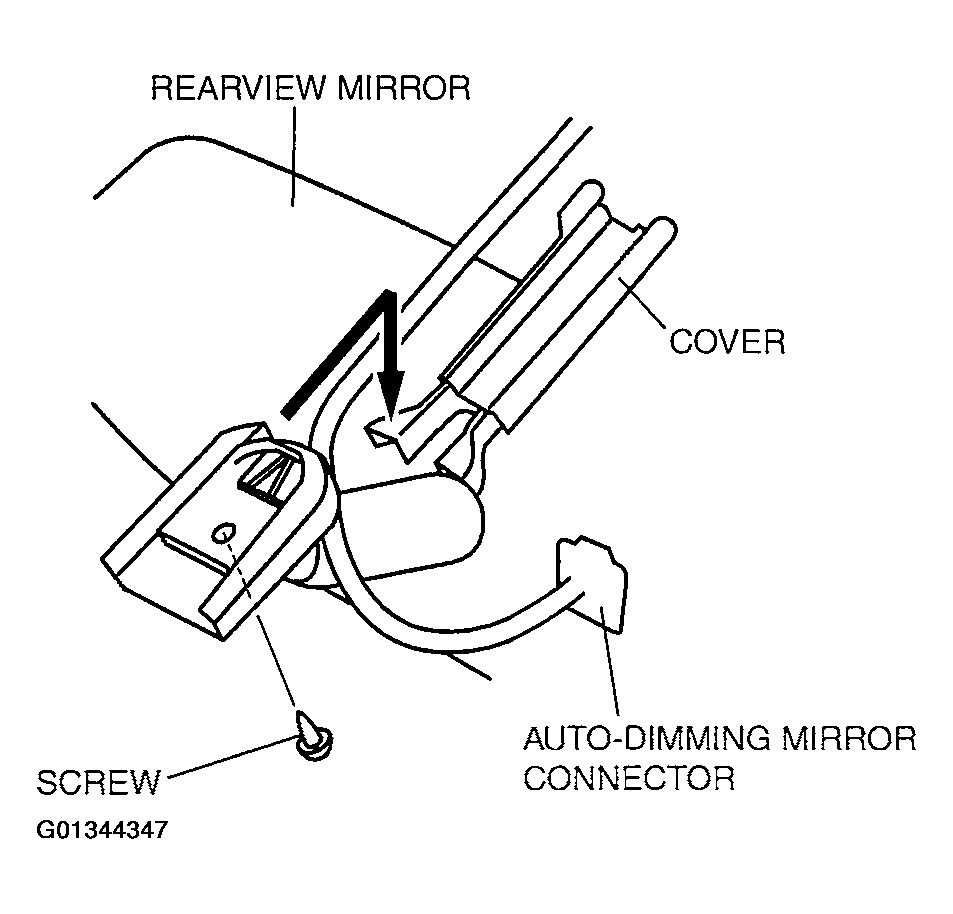

- Disconnect the negative battery cable.
- Remove the cover.
- Disconnect the auto-dimming mirror connector.
- Remove the screw.
Courtesy of MAZDA MOTORS CORP.
- Remove the rearview mirror.
- Install in the reverse order of removal.
