Not Reusing Windshield

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • For the areas of the sealant that are difficult to cut, use the SST  (piano wire) and follow the procedure under REUSING WINDSHIELD  .
  1. Remove the base. (See BASE REMOVAL  .)
  2. Cut out the sealant all around the glass using a sealant remover.
  3. Remove the sealant by pulling it off.
  4. Remove the windshield.

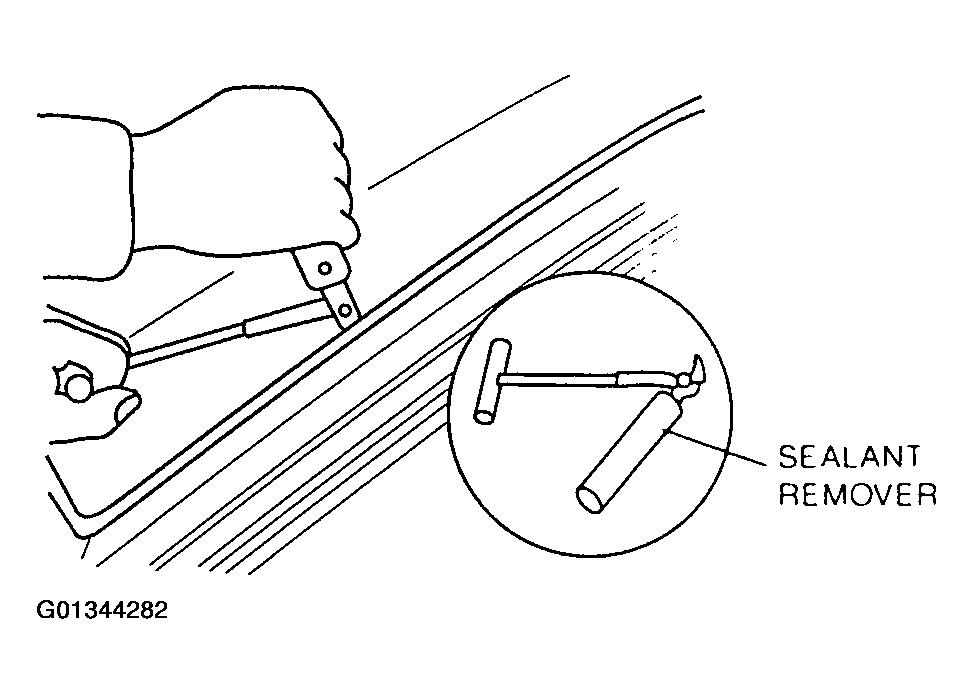

    Fig 1: Removing Windshield
    G01344282Courtesy of MAZDA MOTORS CORP.
