Assembly Note

  1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
    1. Position the bearing with the part number facing toward the handle of the special tool.
      NOTE:
      • The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

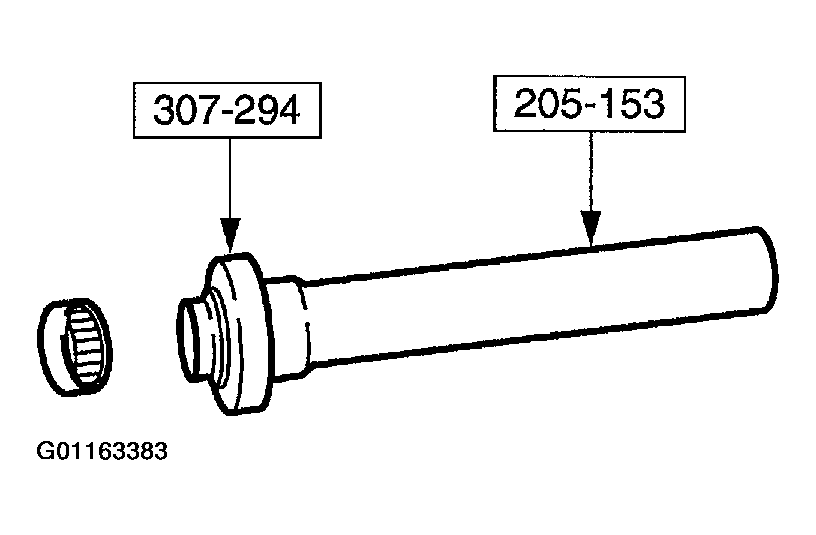

    Fig 1: Positioning No. 16 Reverse/Overdrive Ring Gear Bearing
    G01163383
  2. Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.

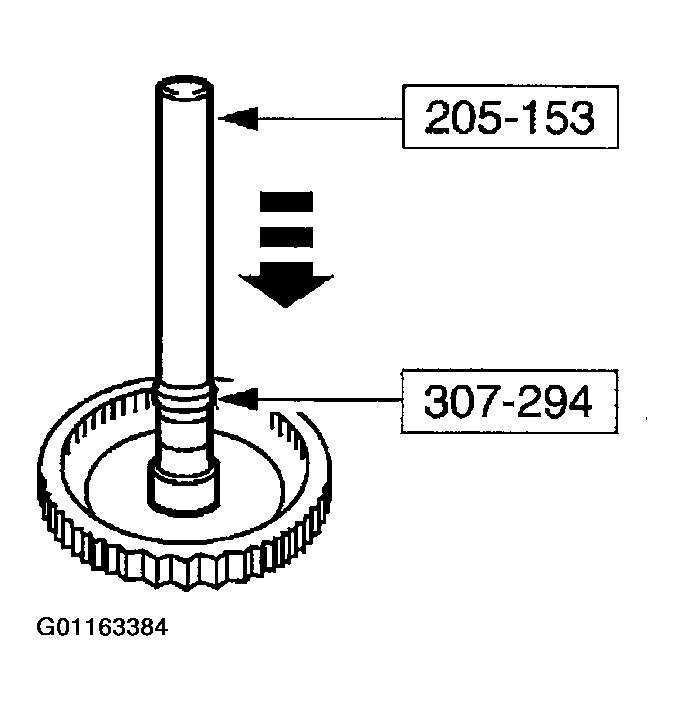

    Fig 2: Installing No. 16 Reverse/Overdrive Ring Gear Bearing
    G01163384
  3. Position the No. 17 stator support bearing on the special tools.
    1. Position the bearing with the part number facing toward the handle of the special tool.
      NOTE:
      • The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.
      2. Fig 3: Positioning No. 17 Stator Support Bearing
      G01163385
  4. Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.

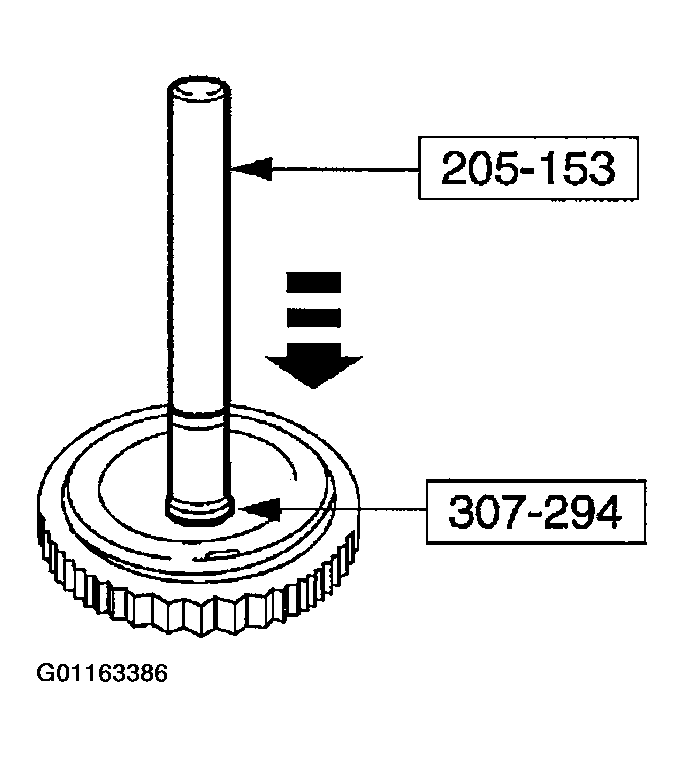

    5. Fig 4: Installing No. 17 Stator Support Bearing
    G01163386
