Disassembly Note

CAUTION:

Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

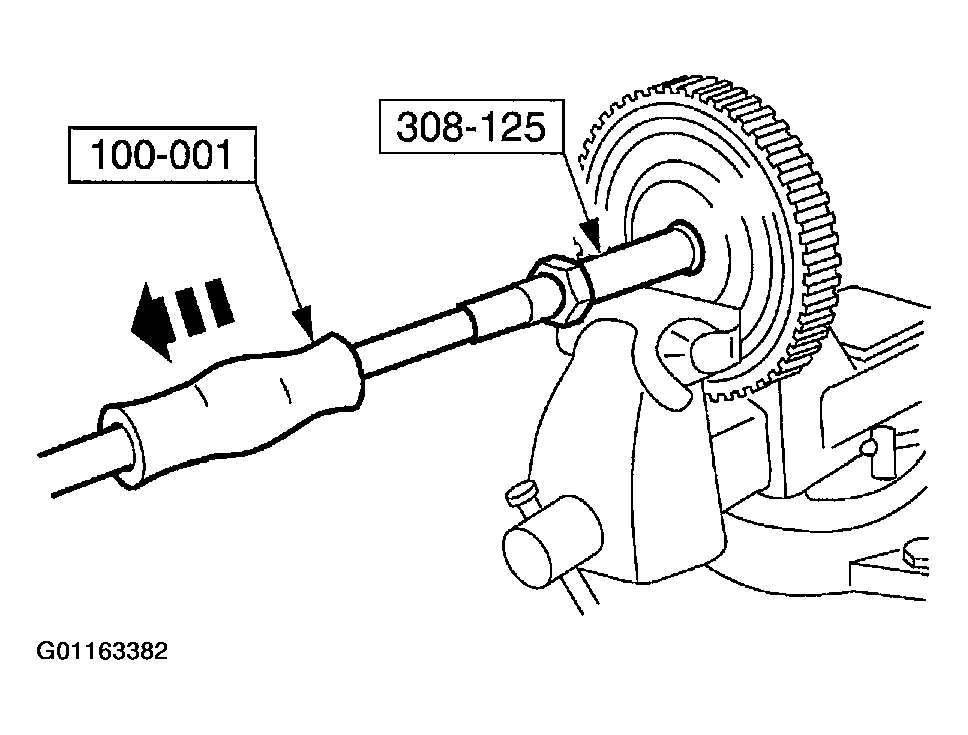

Fig 1: Remove The No. 16 Reverse/Overdrive Ring Gear Bearing
Using the special tools, remove the No. 17 stator support bearing, as necessary.

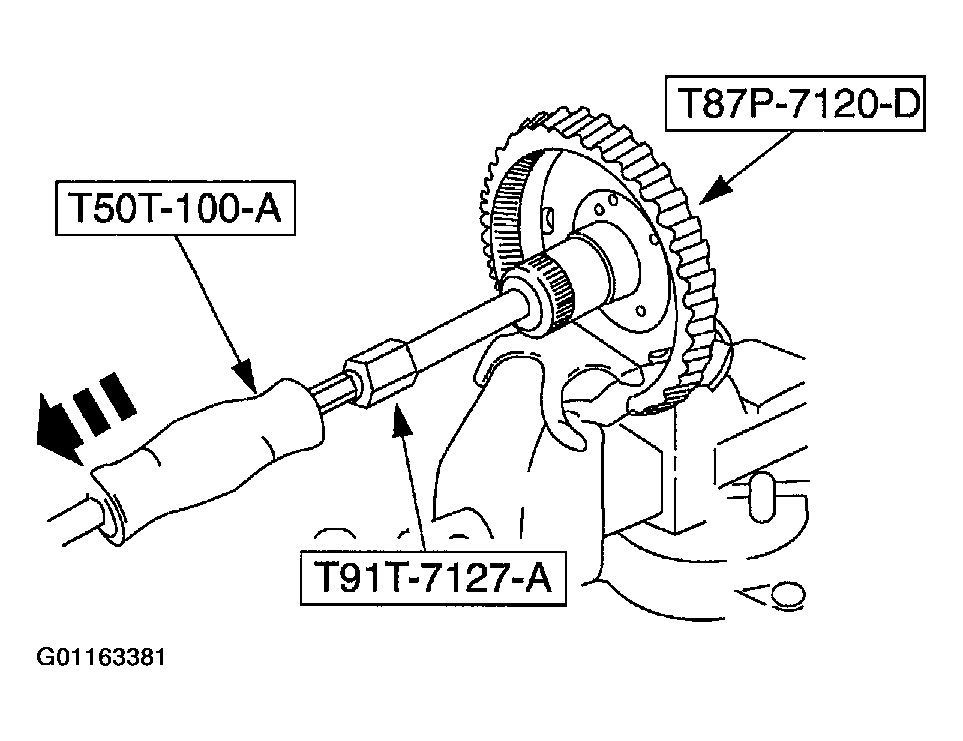

Fig 2: Removing No. 17 Stator Support Bearing
