Disassembled Views

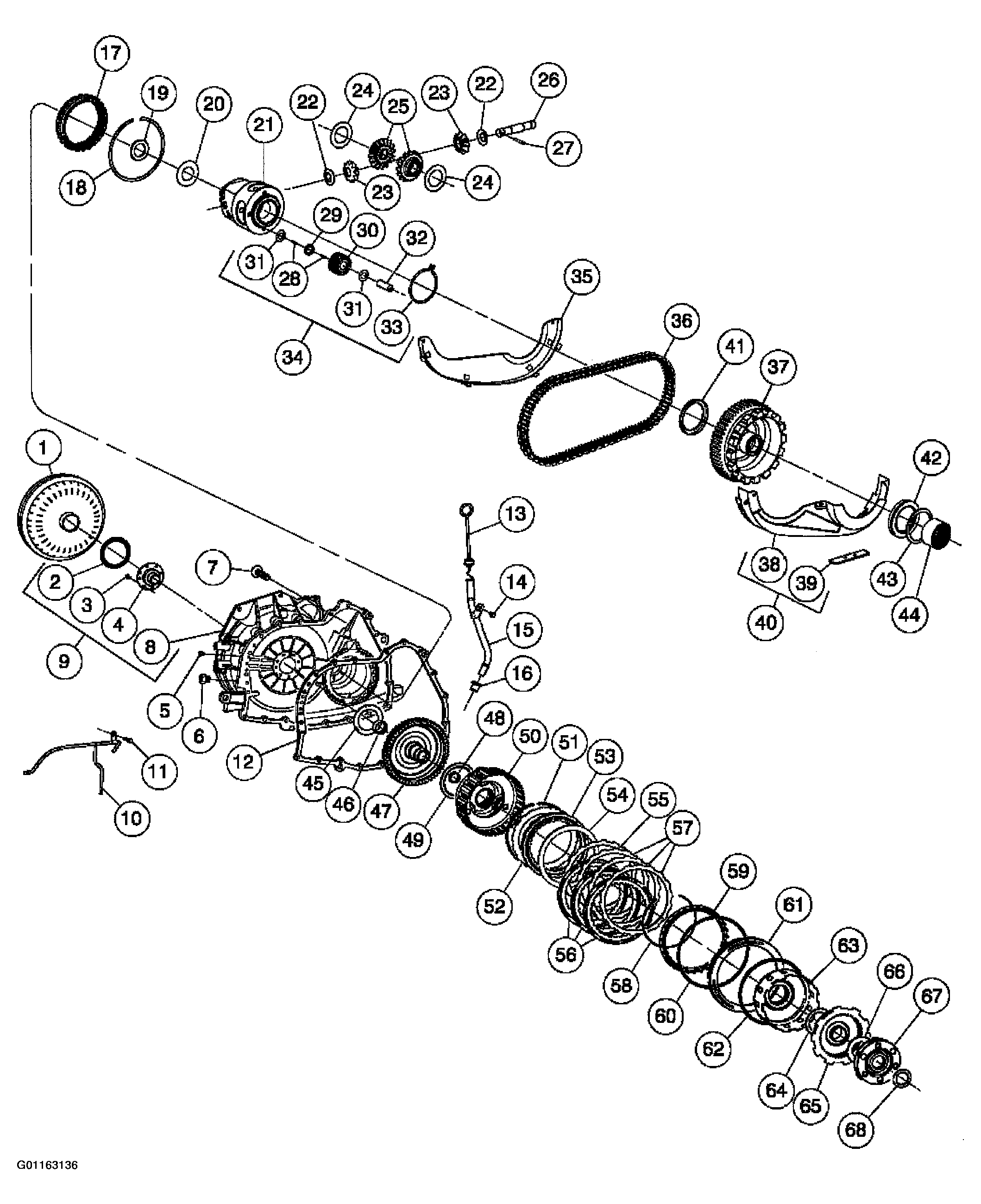

Fig 1: Disassembled View Of Transaxle (1 Of 3)
G01163136

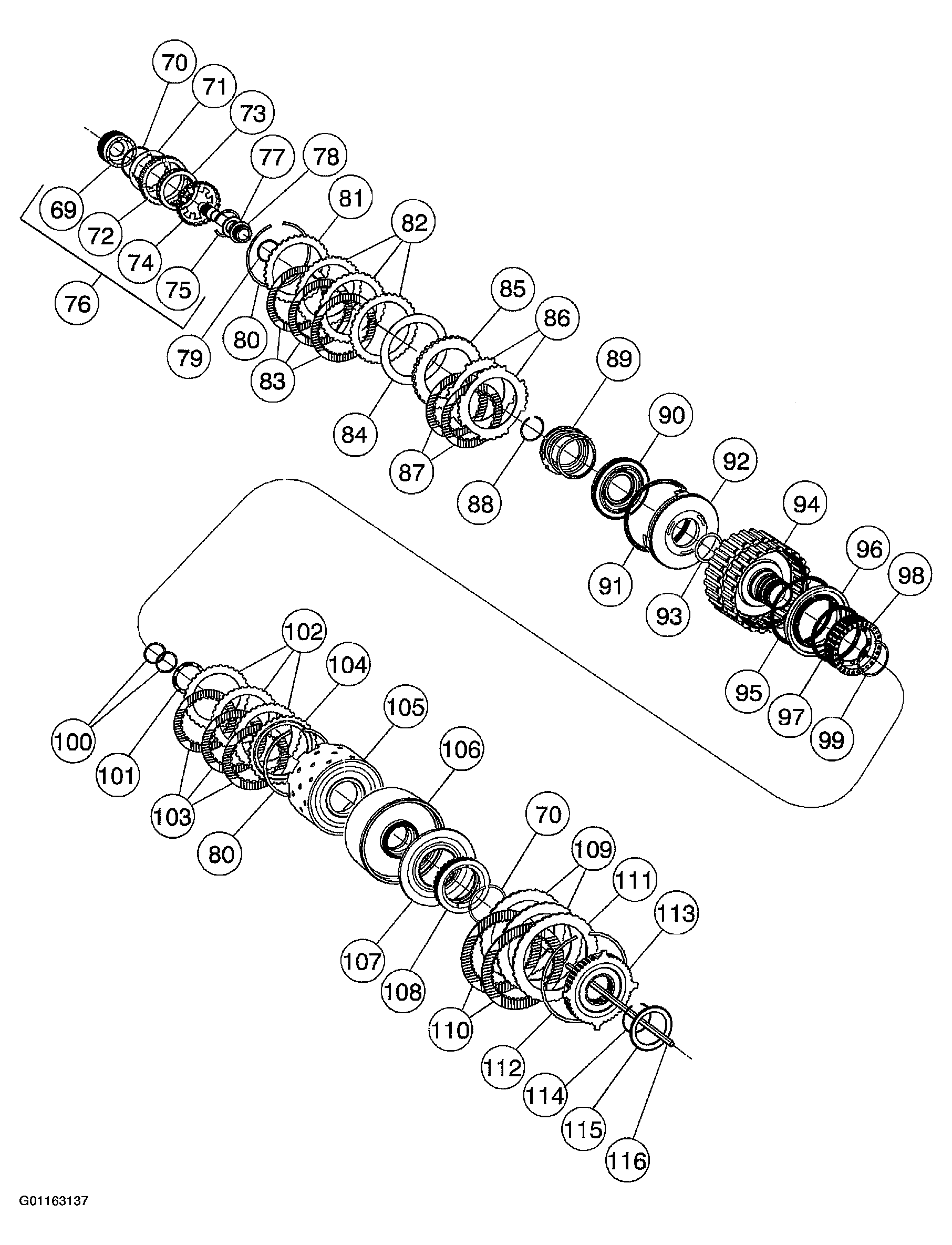

Fig 2: Disassembled View Of Transaxle (2 Of 3)
G01163137

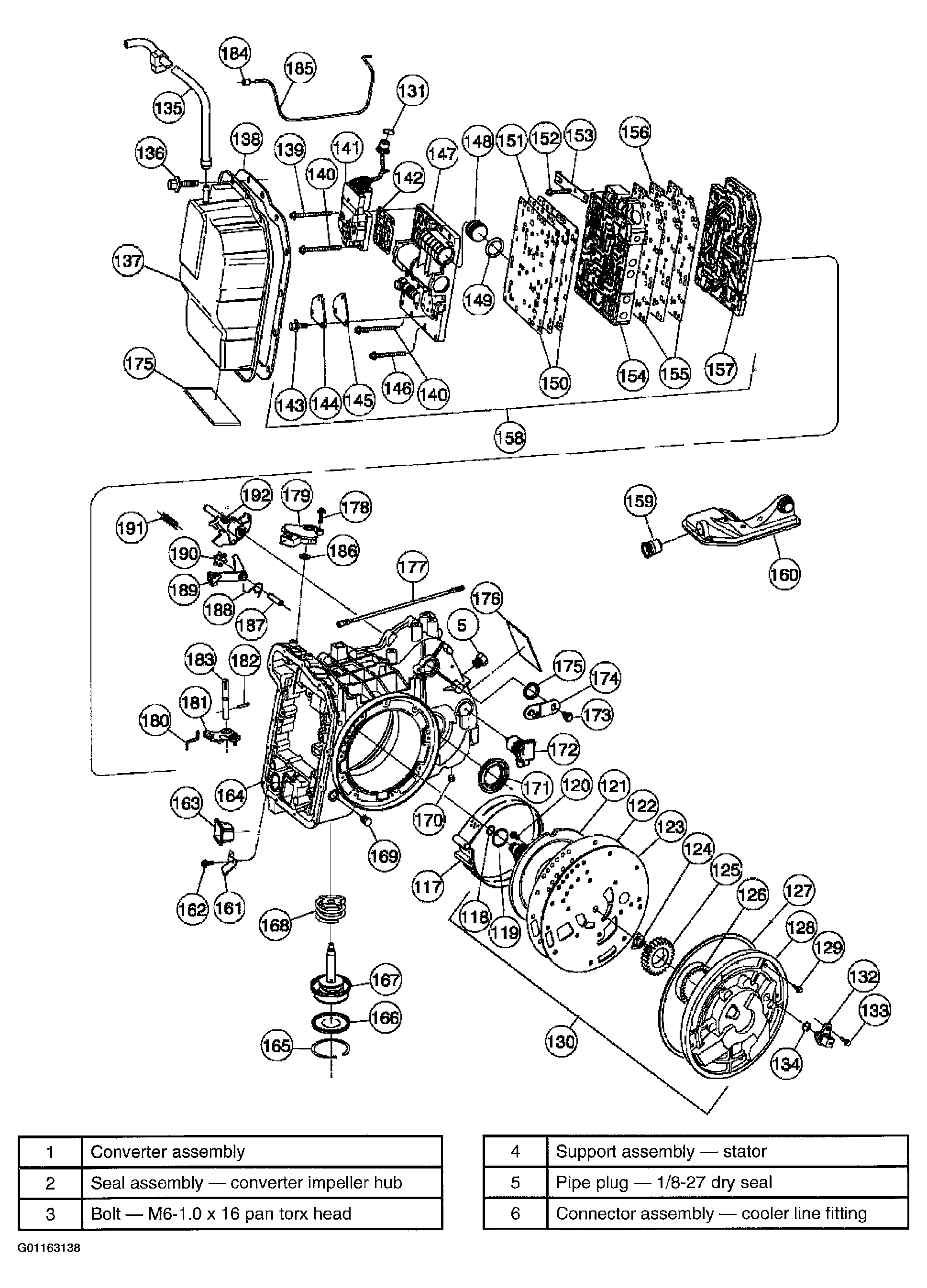

Fig 3: Disassembled View Of Transaxle (3 Of 3) & Legend (Component Numbers 1-6)
G01163138

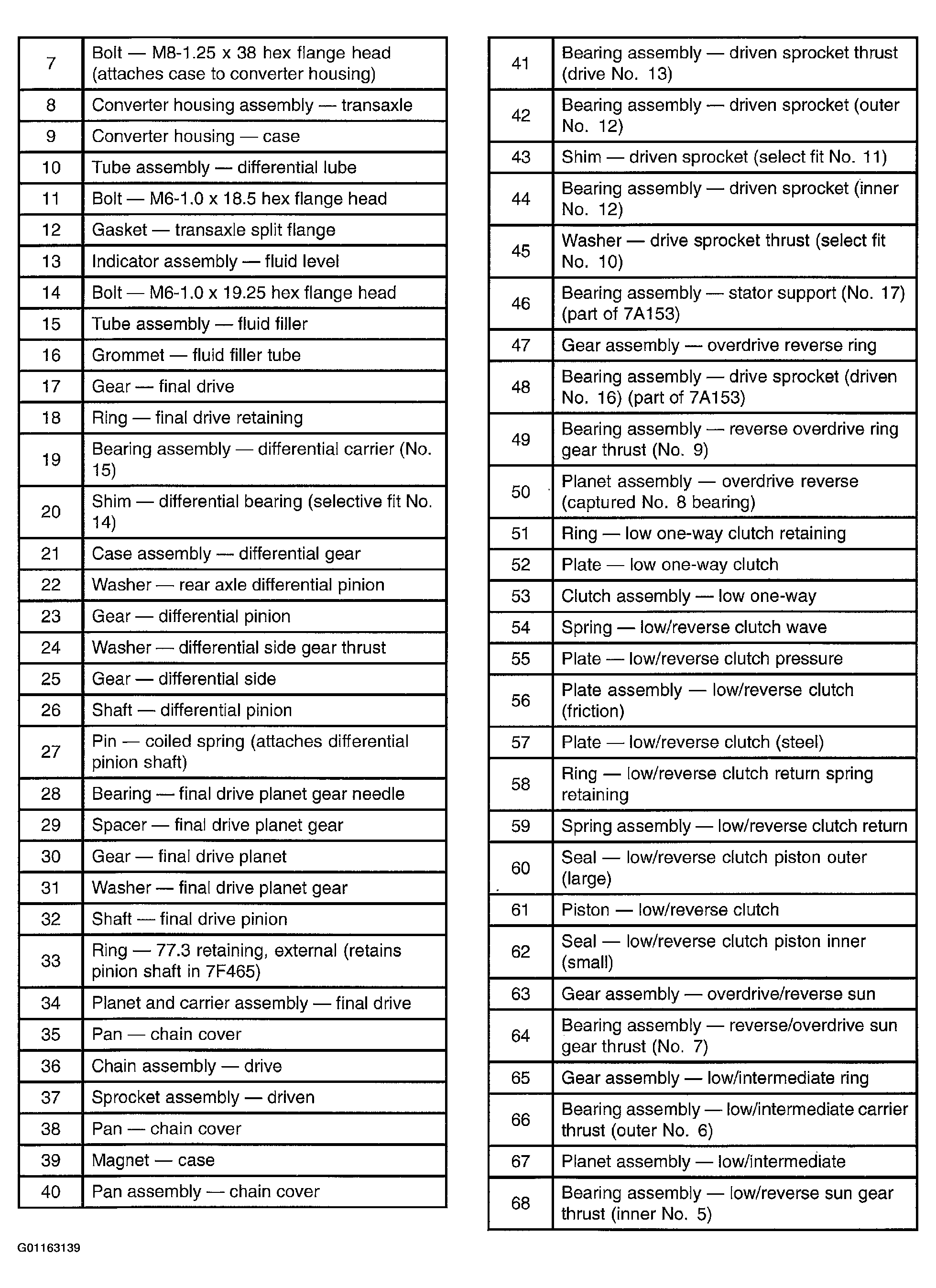

Fig 4: Legend (Component Numbers 7-68)
G01163139

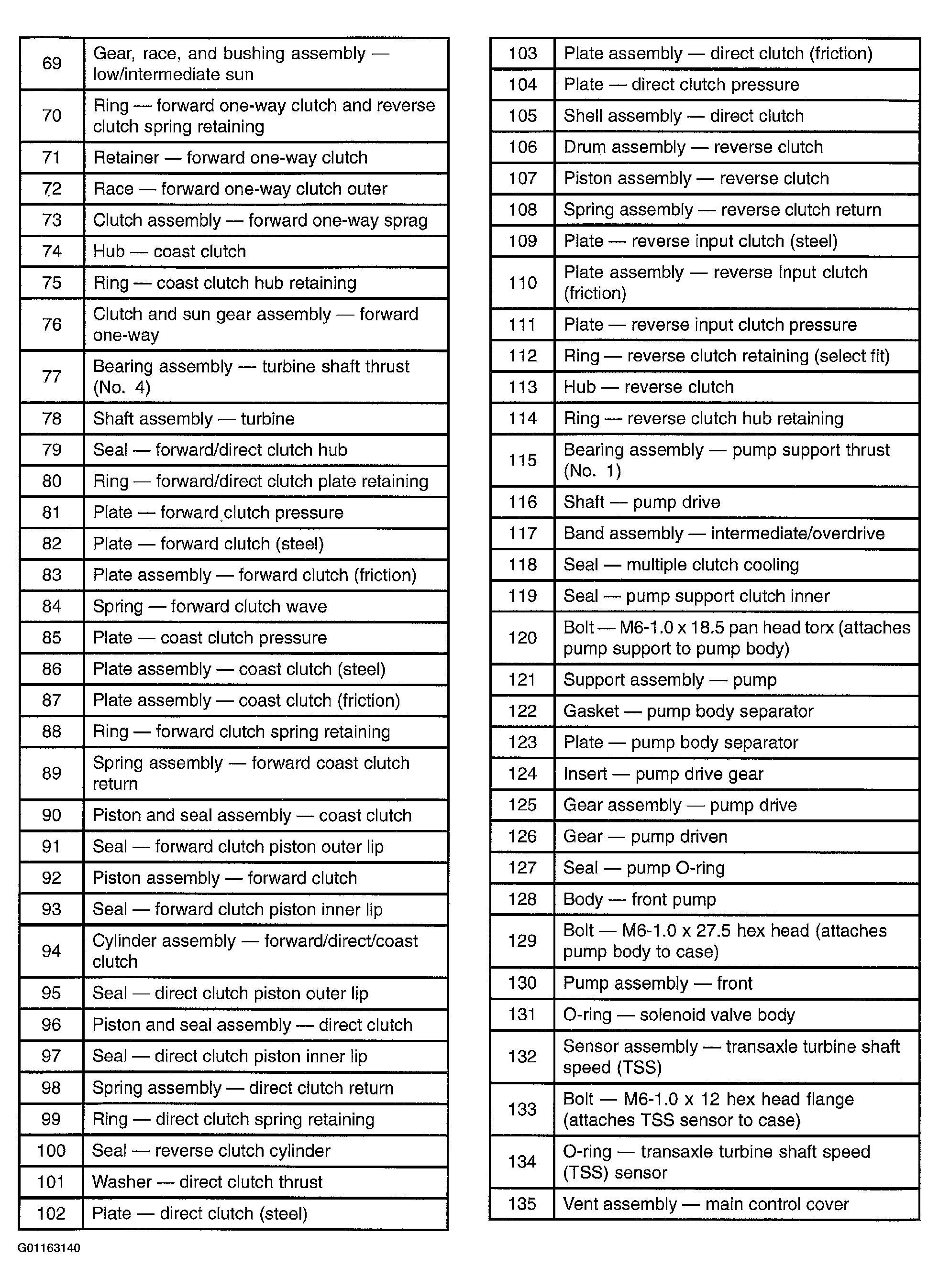

Fig 5: Legend (Component Numbers 69-135)
G01163140

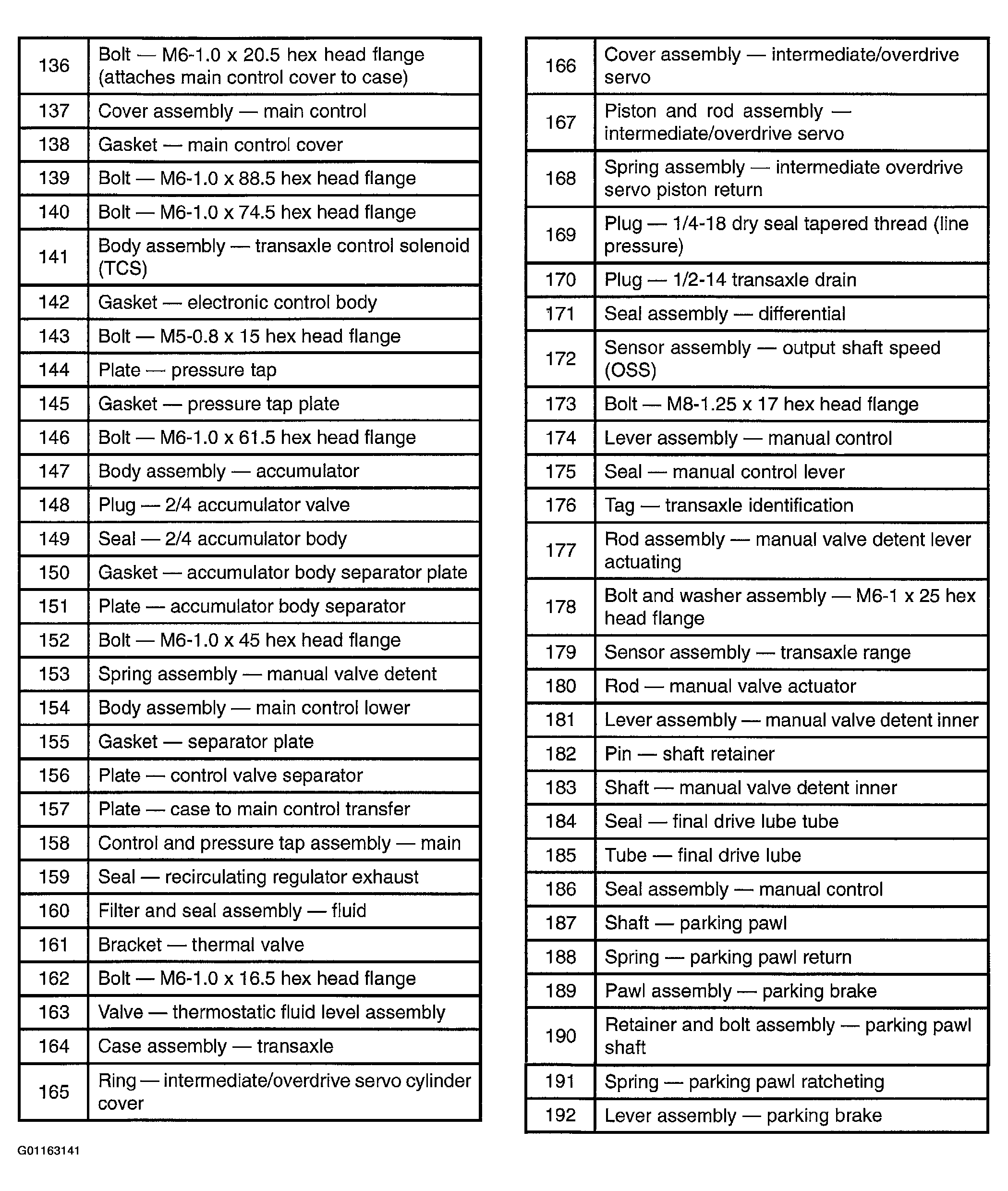

Fig 6: Legend (Component Numbers 136-190)
G01163141
