Assembly Note

  1. Install the low/reverse clutch piston outer seal on the low/reverse clutch piston.

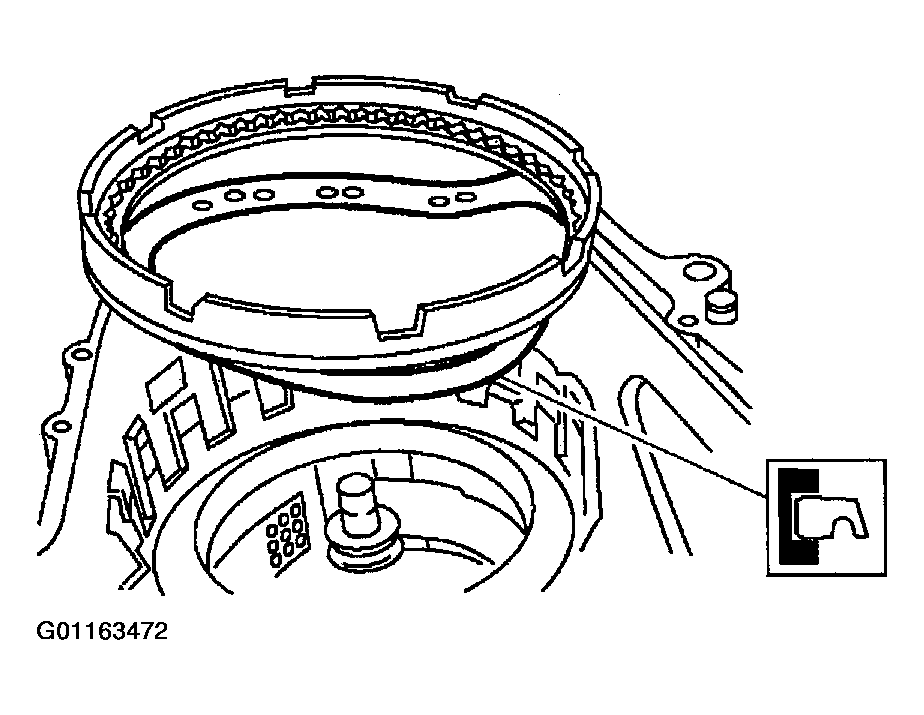

    Fig 1: Installing Low/Reverse Clutch Piston Outer Seal
    G01163472
  2. Install the low/reverse clutch piston inner seal on the low/reverse clutch piston.

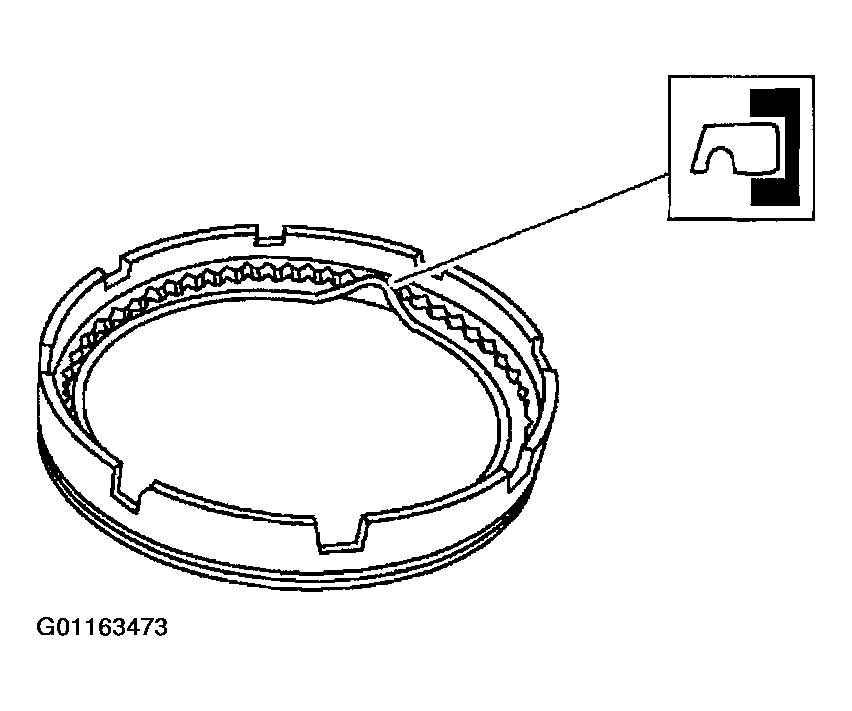

    Fig 2: Installing Low/Reverse Clutch Piston Inner Seal
    G01163473
