Assembly Note

WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
CAUTION: If the valve sticks in its bore and cannot be freed, install a new main control valve body.
NOTE: Clean the main control valve body and accumulator body assembly of the main control in cleaning solvent. Blow dry with moisture-free regulated compressed air. The solenoid valve body should not be cleaned in cleaning solvent. It may be blown clean with compressed air or wiped clean with a lint-free cloth.
  1. Install a new intermediate and overdrive accumulator plug seal and coat with petroleum jelly.

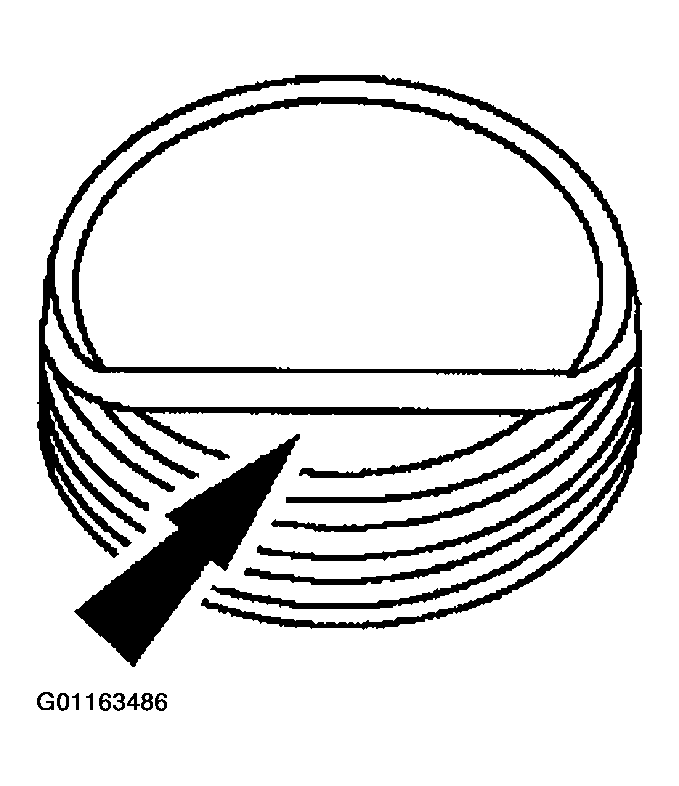

    Fig 1: Installing A New Intermediate And Overdrive Accumulator Plug Seal
    G01163486
    CAUTION: Do not install the intermediate and overdrive accumulator valve plug and seal too far into the bore and damage the seal. Only push the intermediate and overdrive accumulator valve plug until it is flush with the accumulator body assembly.
  2. Install the intermediate and overdrive accumulator valve plug.

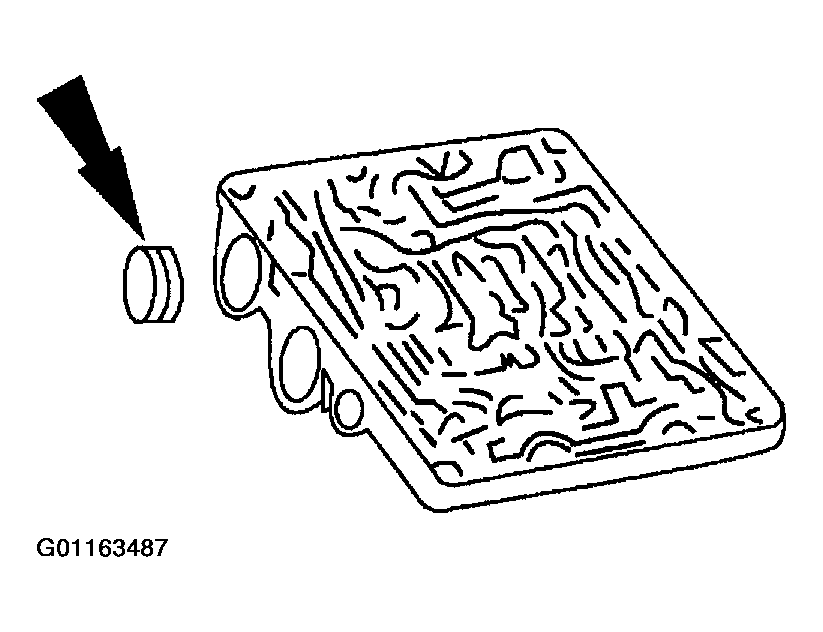

    Fig 2: Installing Intermediate And Overdrive Accumulator Valve Plug
    G01163487
  3. Install the intermediate and overdrive accumulator valve plug retaining plate.

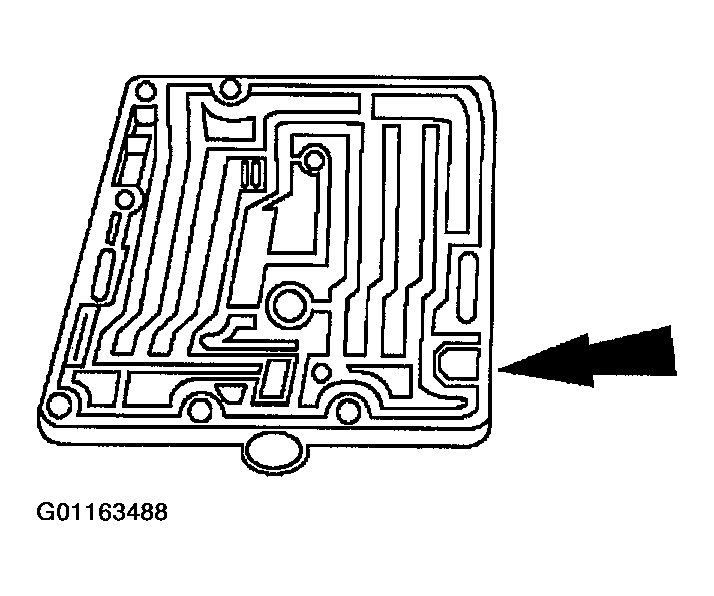

    Fig 3: Installing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate
    G01163488
  4. Install the special tool.

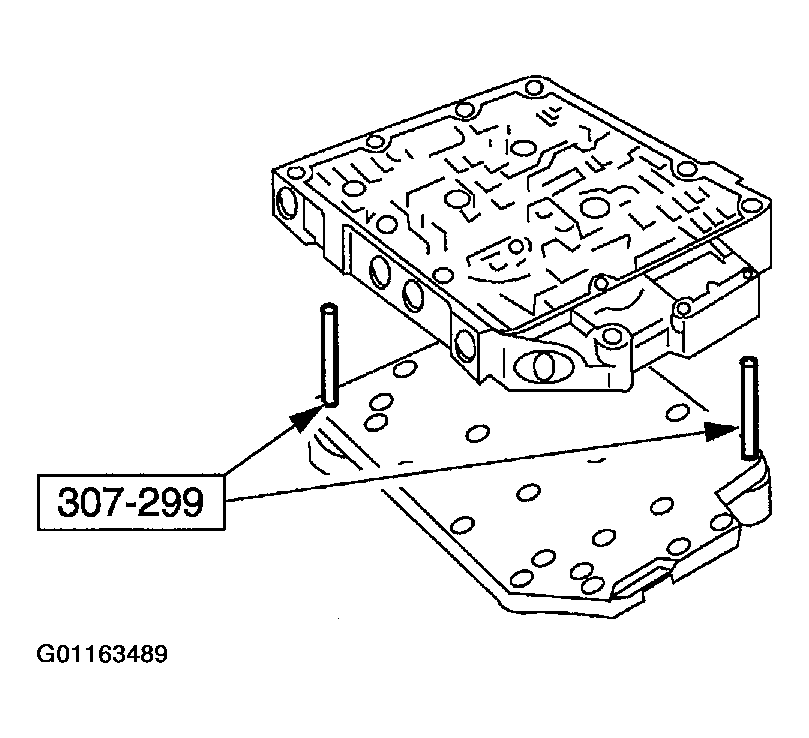

    Fig 4: Installing Special Tool
    G01163489
  5. Using the special tool, install the valve body separator plate gaskets and valve body separator plate.
    1. Install a new valve body separator plate gasket.
    2. Install the valve body separator plate.
    3. Install a new valve body separator plate gasket.

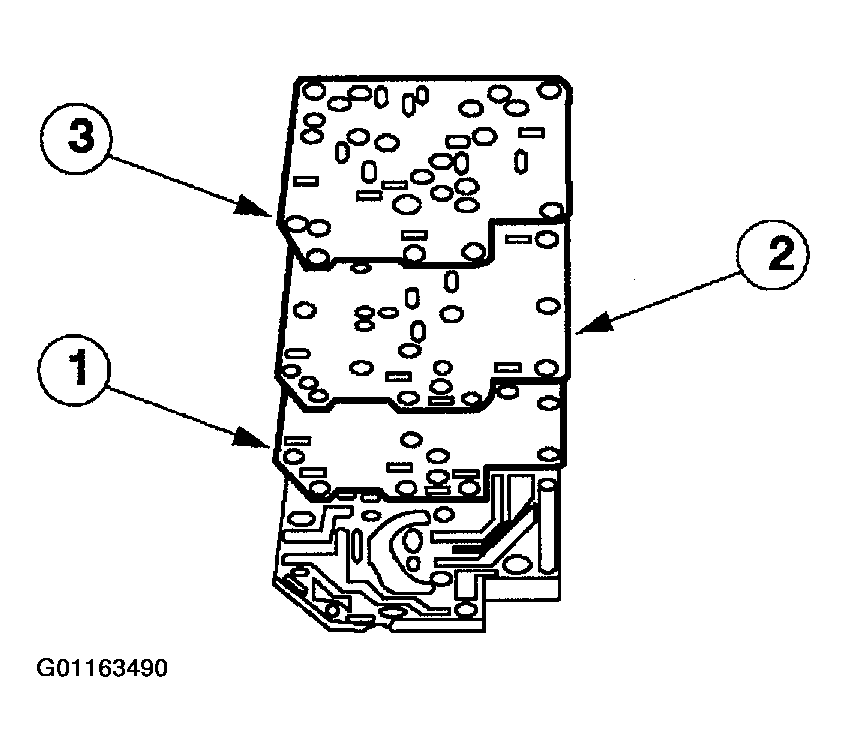

    Fig 5: Installing Valve Body Separator Plate
    G01163490
  6. Using the special tool, install the main control valve body.

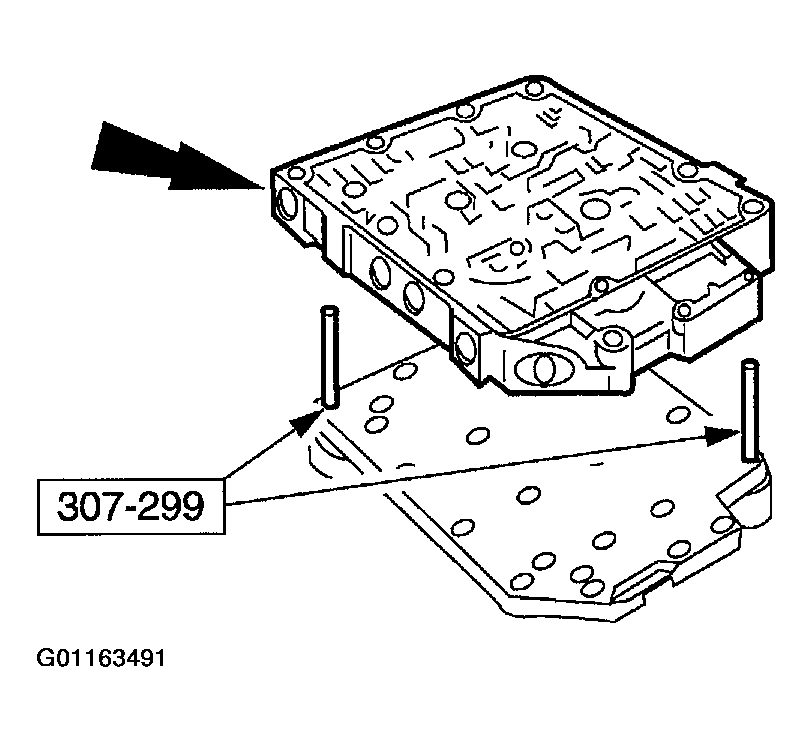

    Fig 6: Installing Main Control Valve Body
    G01163491
  7. Using the special tool, install the accumulator body separator plate and gaskets.
    1. Install a new accumulator body separator plate gasket.
    2. Install the accumulator body separator plate.
    3. Install a new accumulator body separator plate gasket.

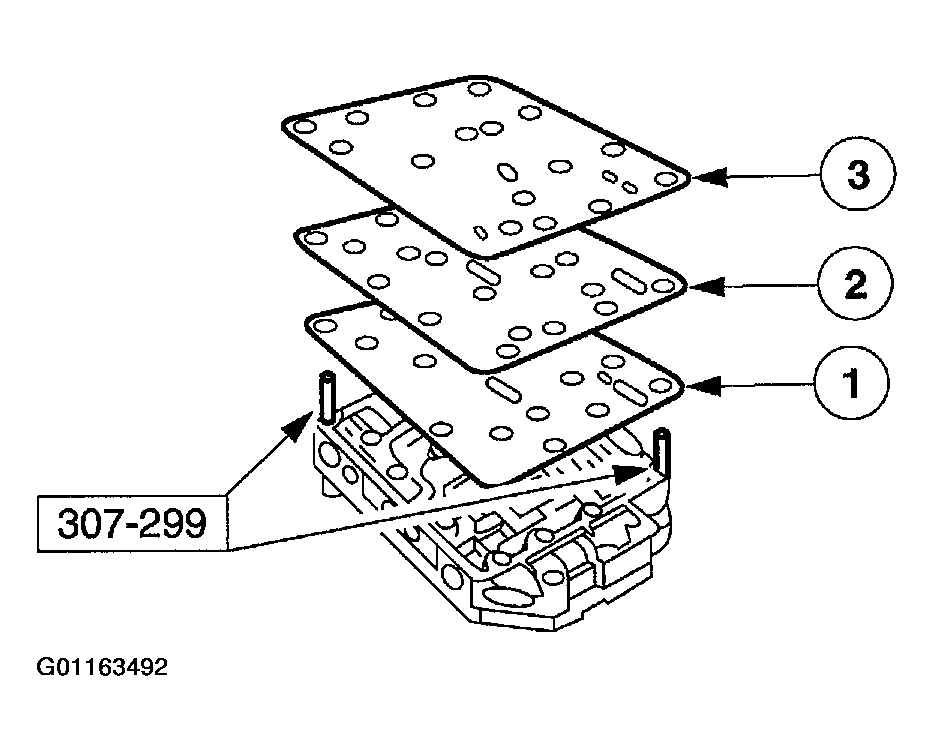

    Fig 7: Installing Accumulator Body Separator Plate And Gaskets
    G01163492
  8. Using the special tool, install the accumulator body assembly.

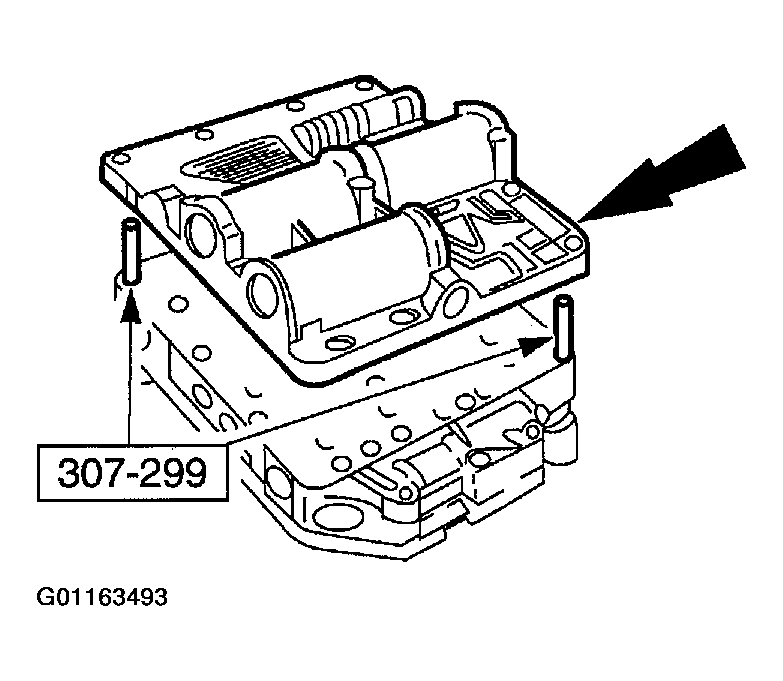

    Fig 8: Installing Accumulator Body Assembly
    G01163493
  9. Starting with the bolts in the middle and working outward, install the accumulator body transfer plate.

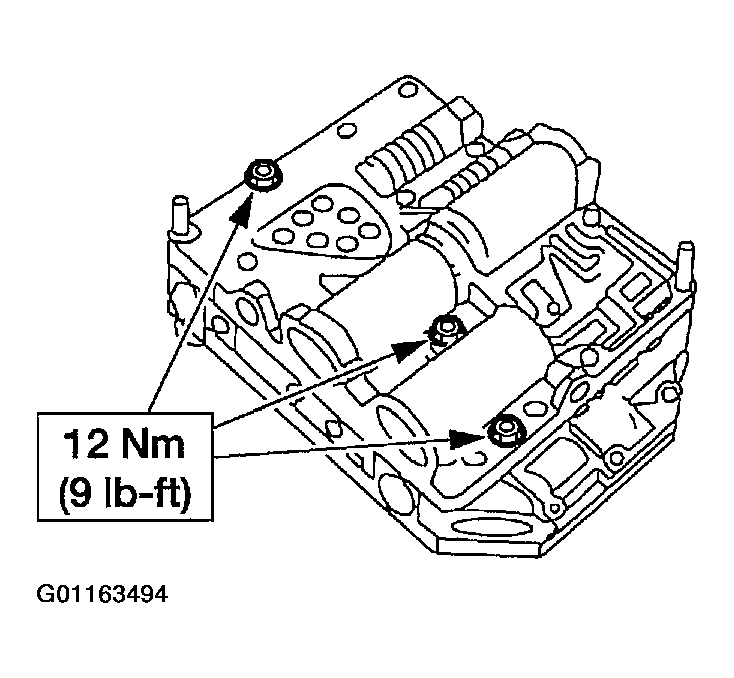

    Fig 9: Installing Accumulator Body Transfer Plate
    G01163494
  10. Starting with the bolts in the middle and working outward, install the main control valve body to transfer plate.
    1. Install the manual valve detent spring.
    2. Install the control valve body to transfer plate bolts.

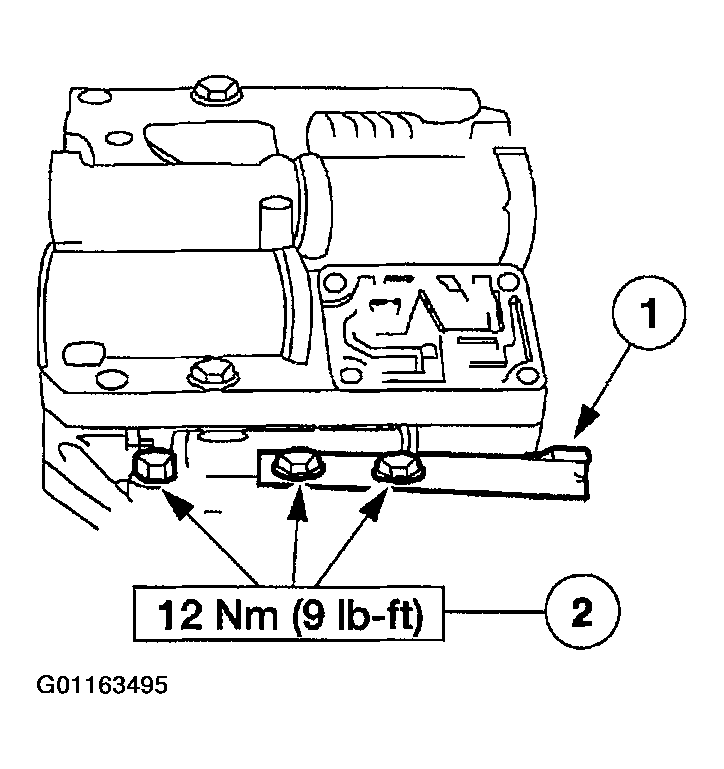

    Fig 10: Installing Main Control Valve Body To Transfer Plate
    G01163495
  11. Install a new pressure tap plate gasket.

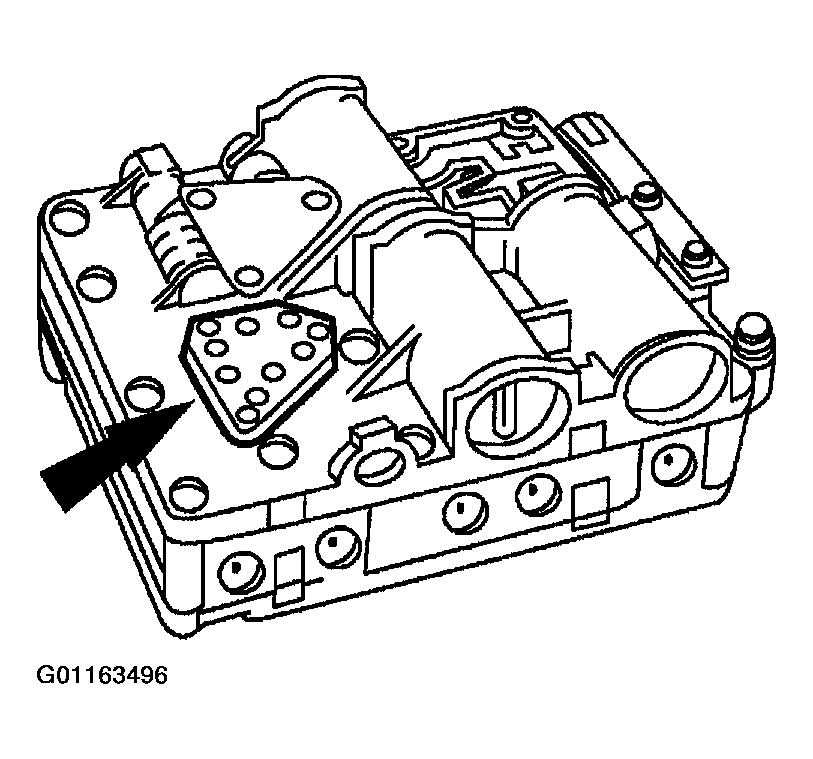

    Fig 11: Installing A New Pressure Tap Plate Gasket
    G01163496
  12. Install the pressure tap plate and bolts.

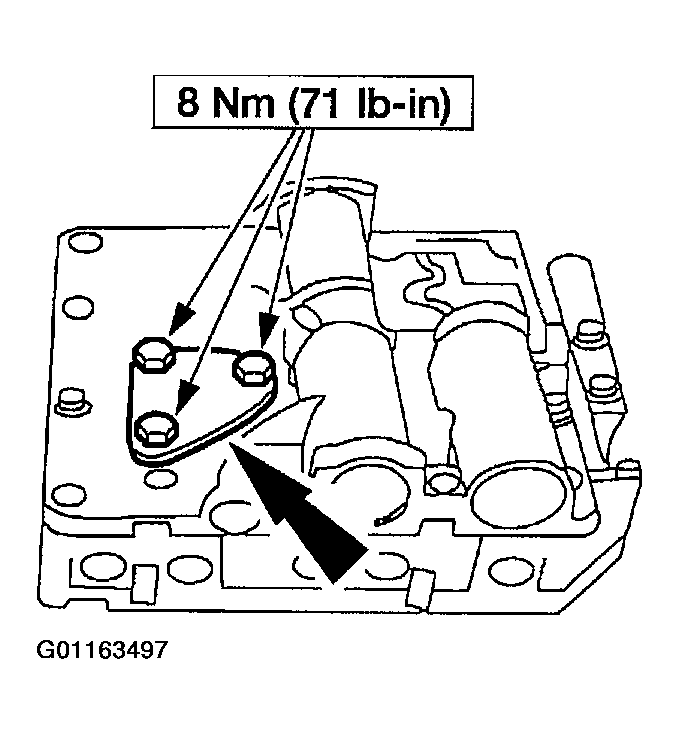

    Fig 12: Installing Pressure Tap Plate
    G01163497
    NOTE: Match the solenoid valve body gasket to passages.
  13. Install the solenoid valve body.
    1. Install the solenoid valve body gasket.
    2. Install the solenoid valve body.
    3. Install the two solenoid valve body bolts.
    4. Remove the special tool.

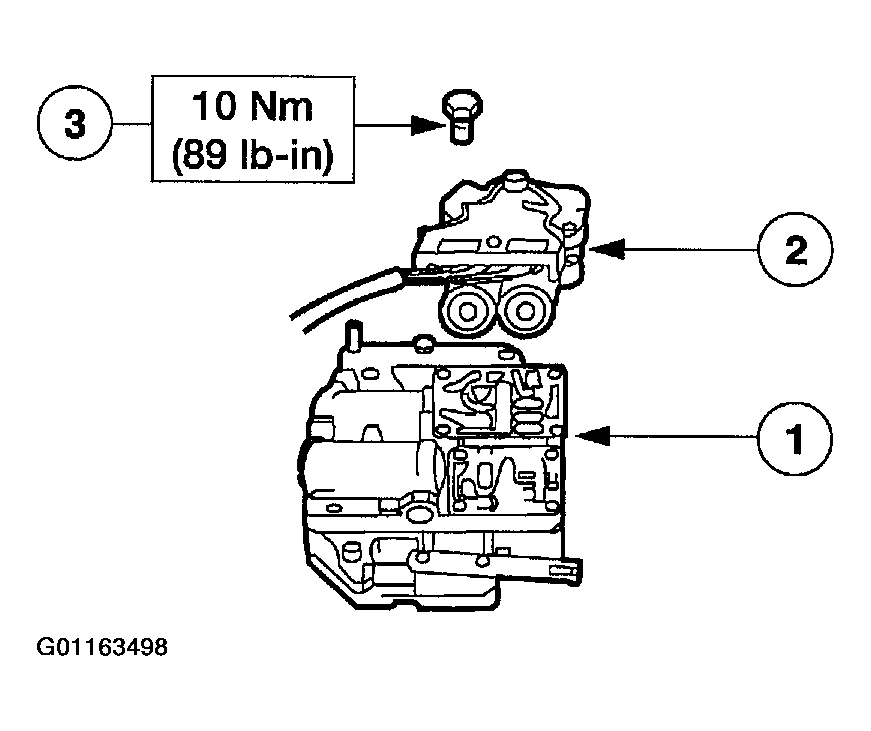

    Fig 13: Installing Solenoid Valve Body
    G01163498
  14. Install the manual valve.

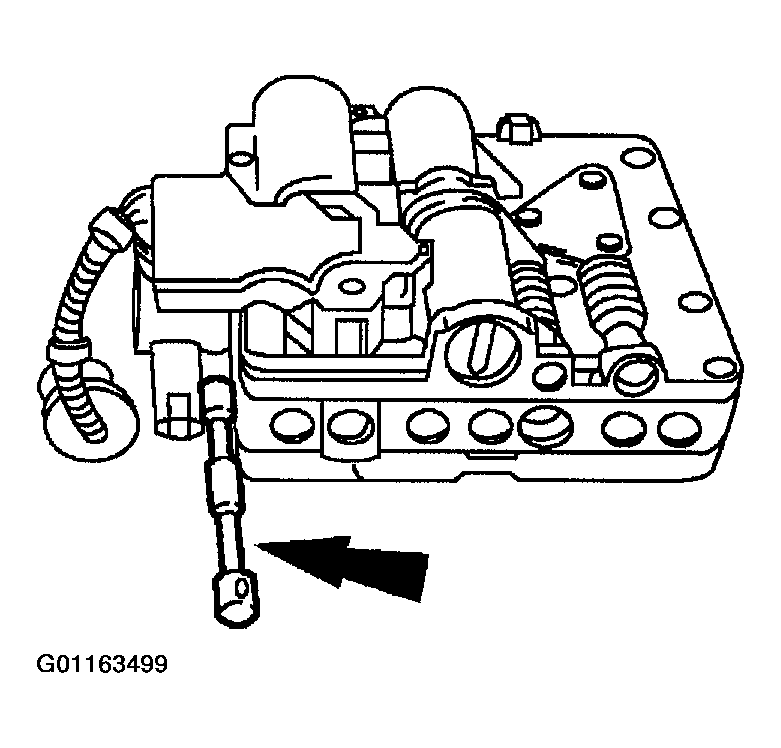

    Fig 14: Installing Manual Valve
    G01163499
