Disassembly Note

  1. Remove the manual valve.

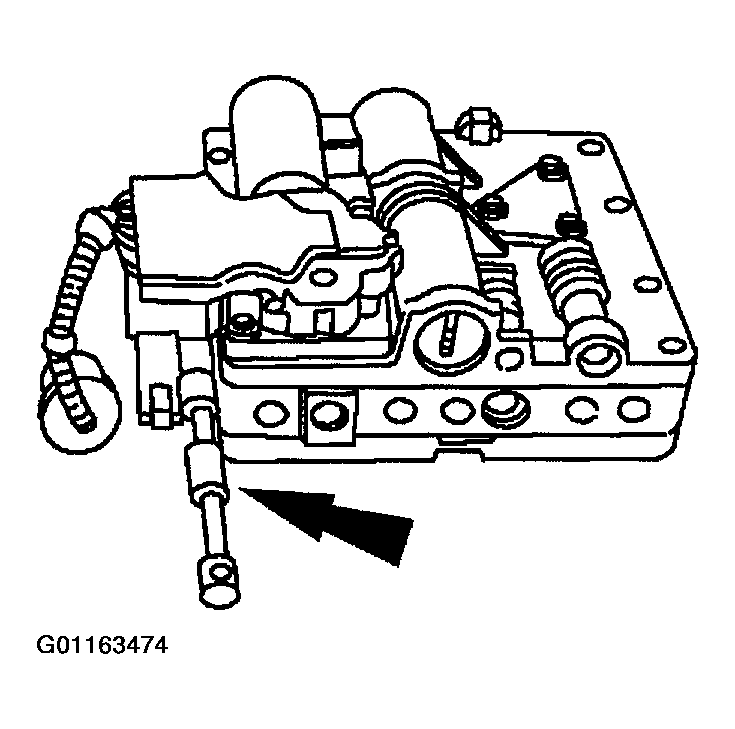

    Fig 1: Removing Manual Valve
    G01163474
    CAUTION: Do not attempt to remove the solenoid valve body wiring cover.
  2. Remove the two solenoid valve body bolts and the solenoid valve body.

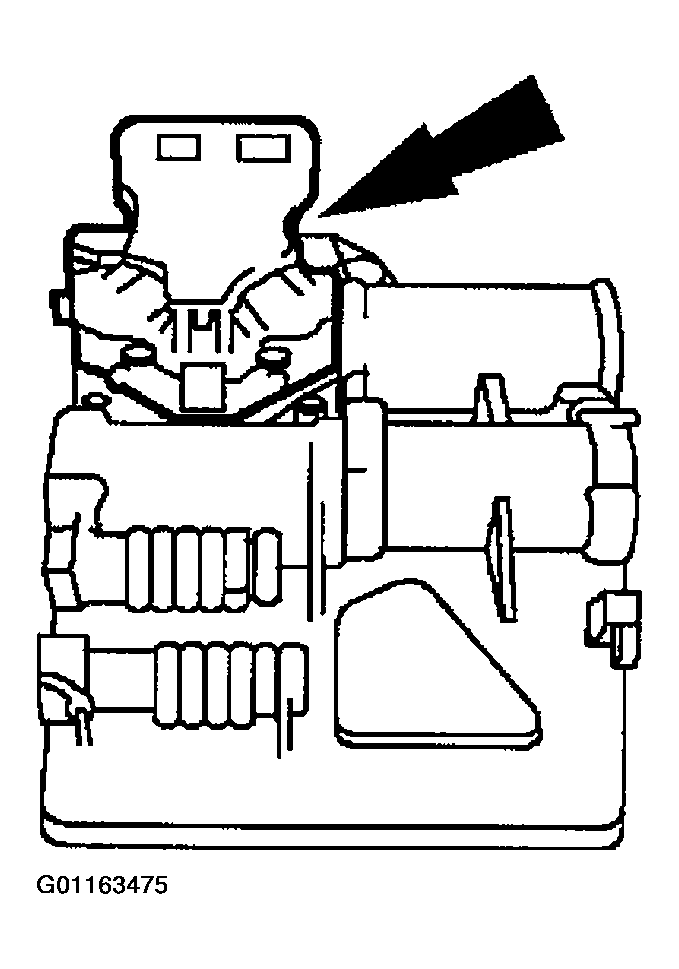

    Fig 2: Removing Two Solenoid Valve Body Bolts And The Solenoid Valve Body
    G01163475
  3. Remove and discard the solenoid valve body gasket.

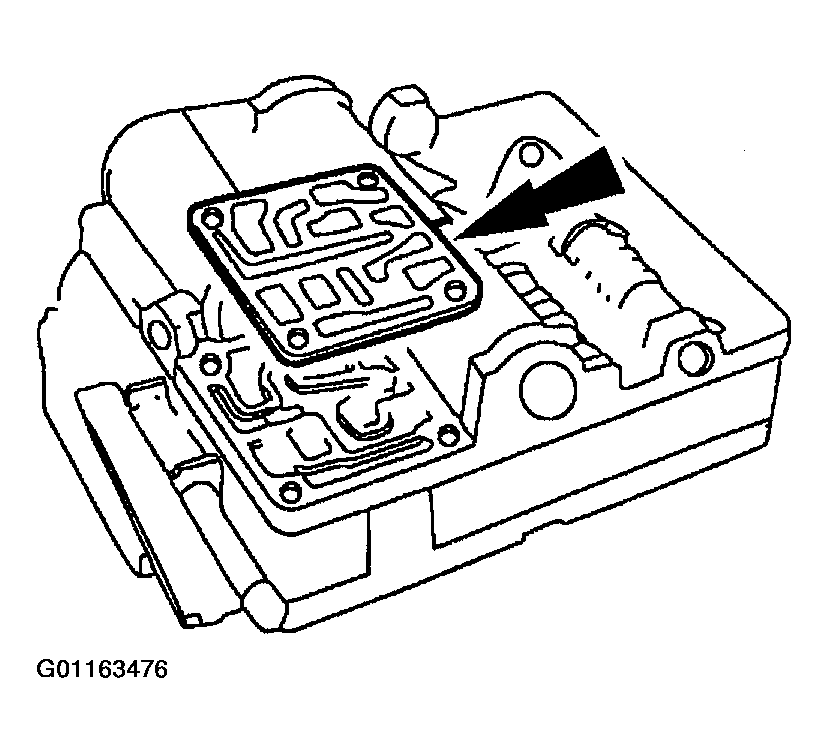

    Fig 3: Removing Solenoid Valve Body Gasket
    G01163476
  4. Remove the three pressure tap plate bolts and the pressure tap plate.

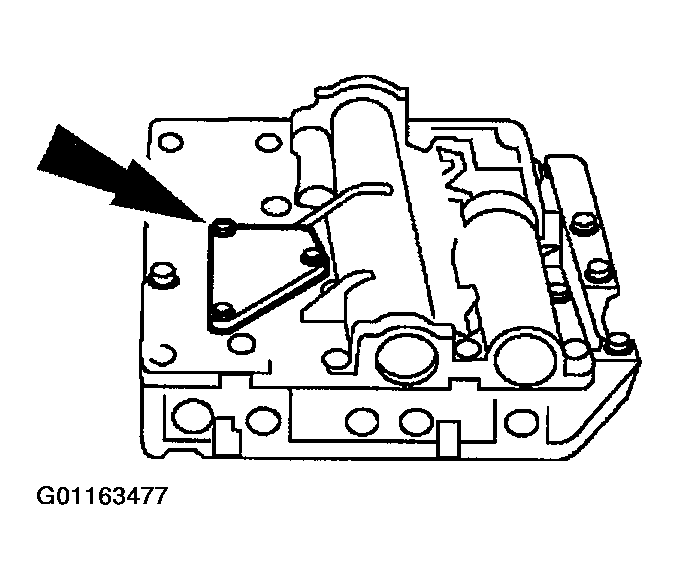

    Fig 4: Removing Pressure Tap Plate
    G01163477
  5. Remove and discard the pressure plate tap gasket.

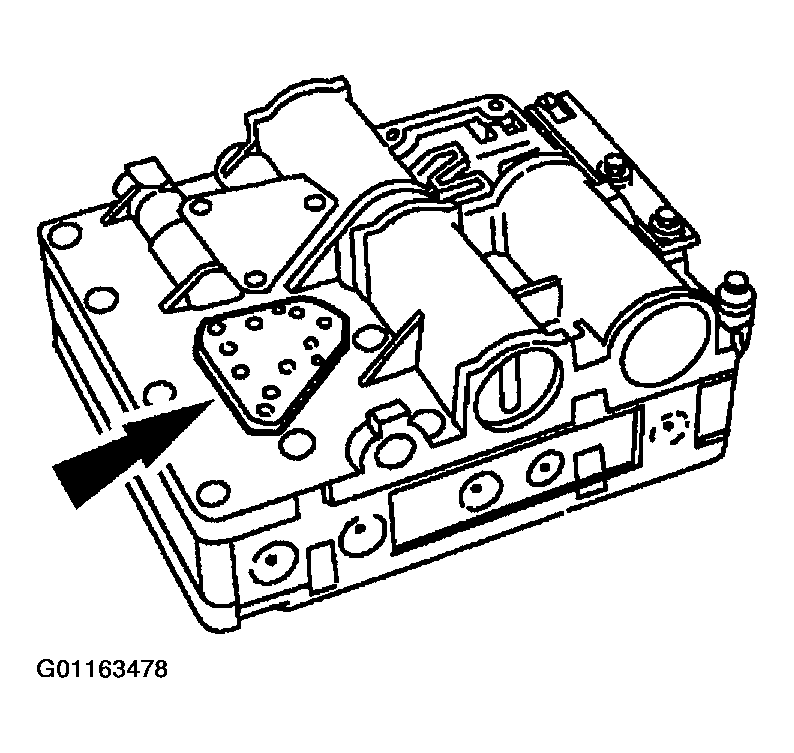

    Fig 5: Removing Pressure Plate Tap Gasket
    G01163478
  6. Remove the control valve body to transfer plate bolts, and remove the manual valve detent spring assembly.

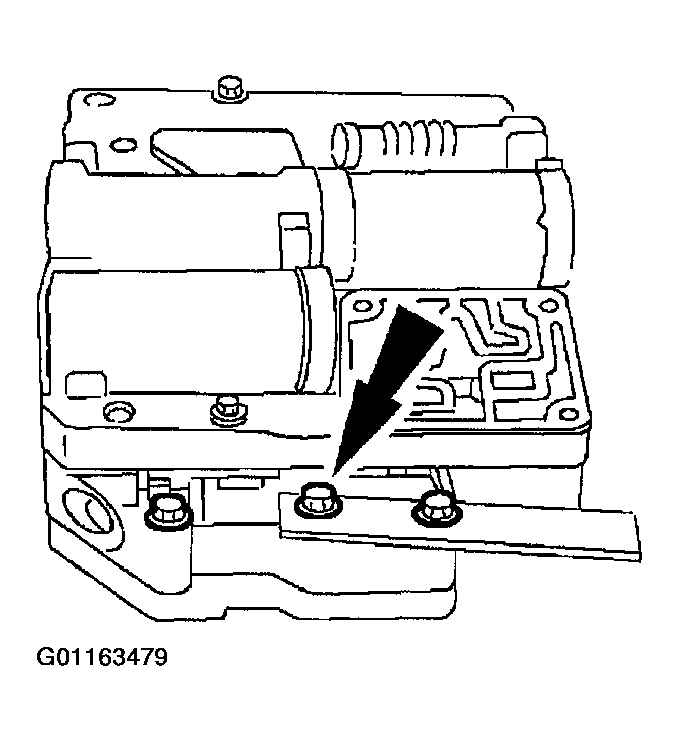

    Fig 6: Removing Manual Valve Detent Spring Assembly
    G01163479
  7. Remove the accumulator body-to-transfer plate bolts.

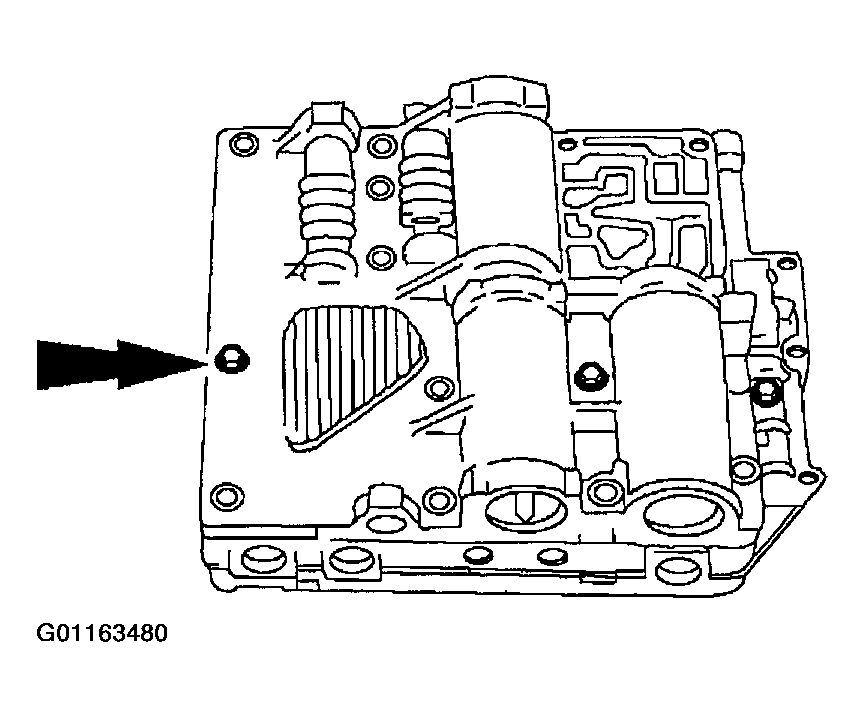

    Fig 7: Removing Accumulator Body-To-Transfer Plate Bolts
    G01163480
  8. Separate the accumulator body from the main control valve body.
    1. Remove the accumulator body assembly.
    2. Remove and discard the accumulator body separator gasket.
    3. Remove the accumulator body separator plate.
    4. Remove and discard the accumulator body separator gasket.
    5. Remove the main control valve body.

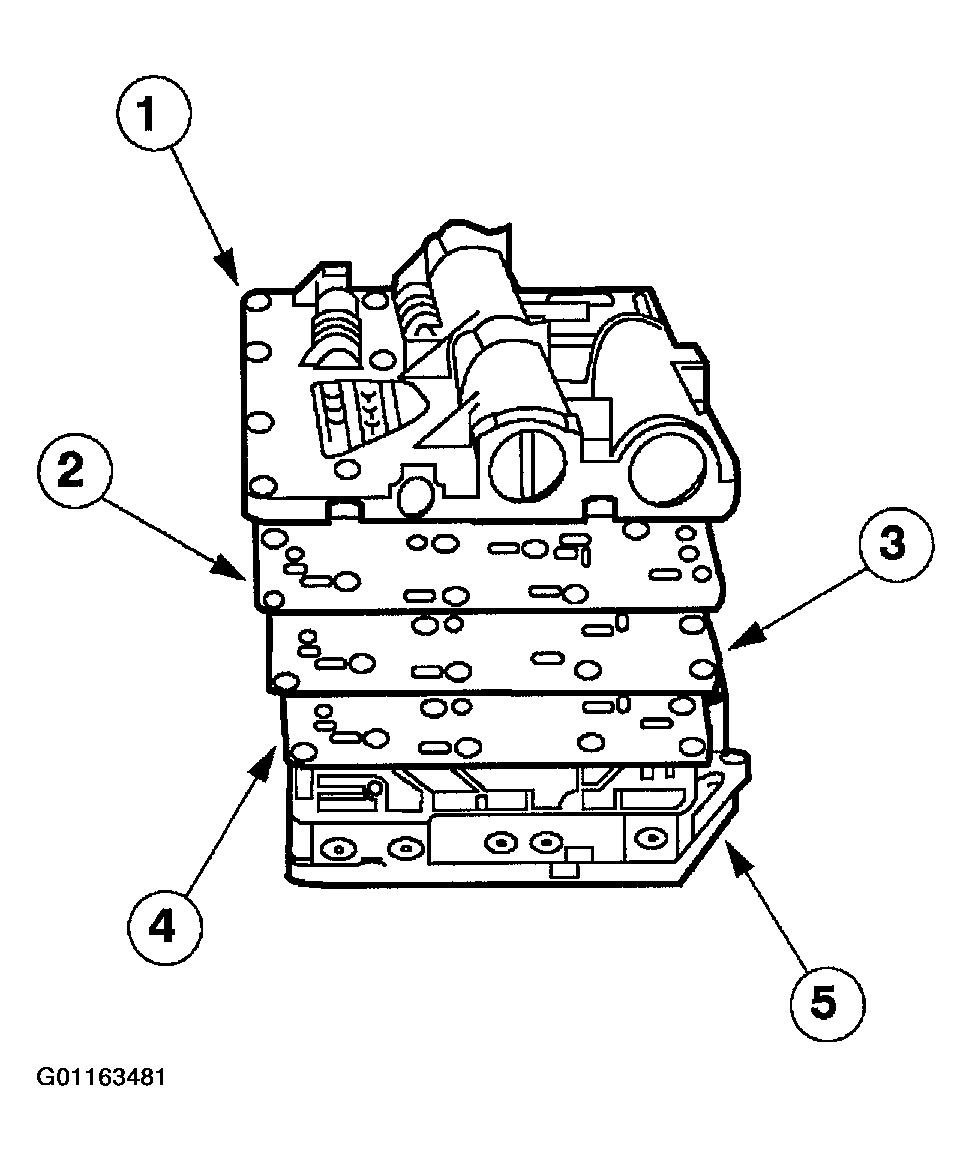

    Fig 8: Separating Accumulator Body From The Main Control Valve Body
    G01163481
  9. Separate the transfer plate from the main control valve body.

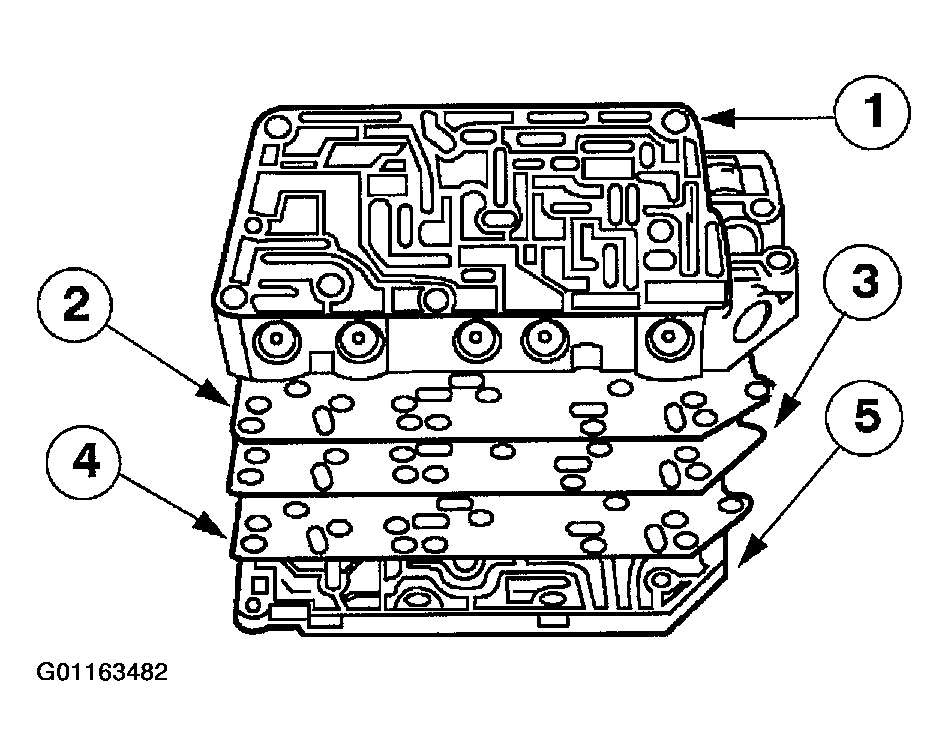

    Fig 9: Separating Transfer Plate From The Main Control Valve Body
    G01163482
    1. Remove the main control valve body.
    2. Remove and discard the valve body separator plate gasket.
    3. Remove the valve body separator plate.
    4. Remove and discard the valve body separator plate gasket.
    5. Remove the transfer plate.
  10. Remove the intermediate and overdrive accumulator valve plug retaining plate from the accumulator body assembly.

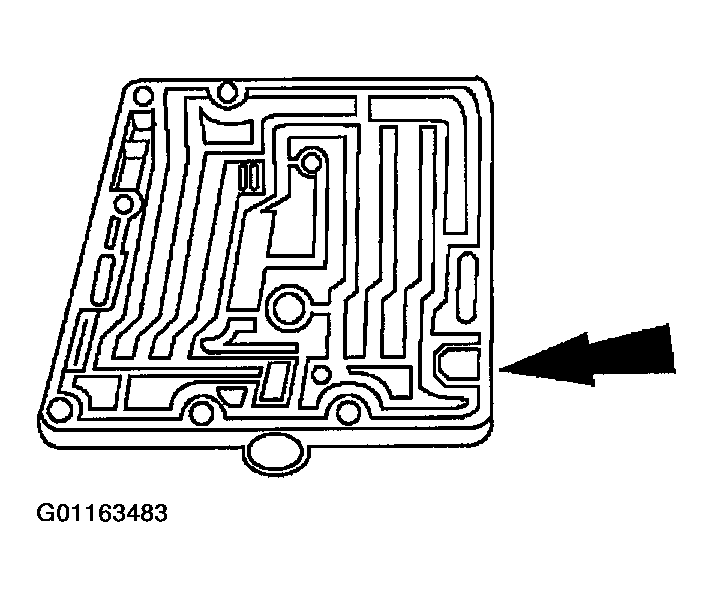

    Fig 10: Removing Intermediate And Overdrive Accumulator Valve Plug Retaining Plate
    G01163483
  11. Remove the intermediate and overdrive accumulator valve plug.

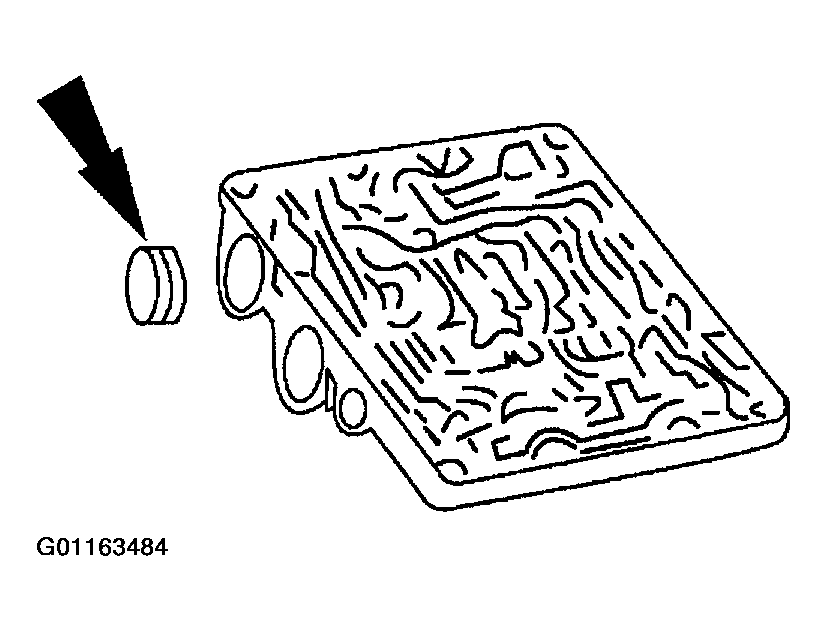

    Fig 11: Removing Intermediate And Overdrive Accumulator Valve Plug
    G01163484
  12. Remove and discard the intermediate and overdrive accumulator plug seal.
    CAUTION: Remove, note location and clean one valve at a time to avoid incorrect installation.

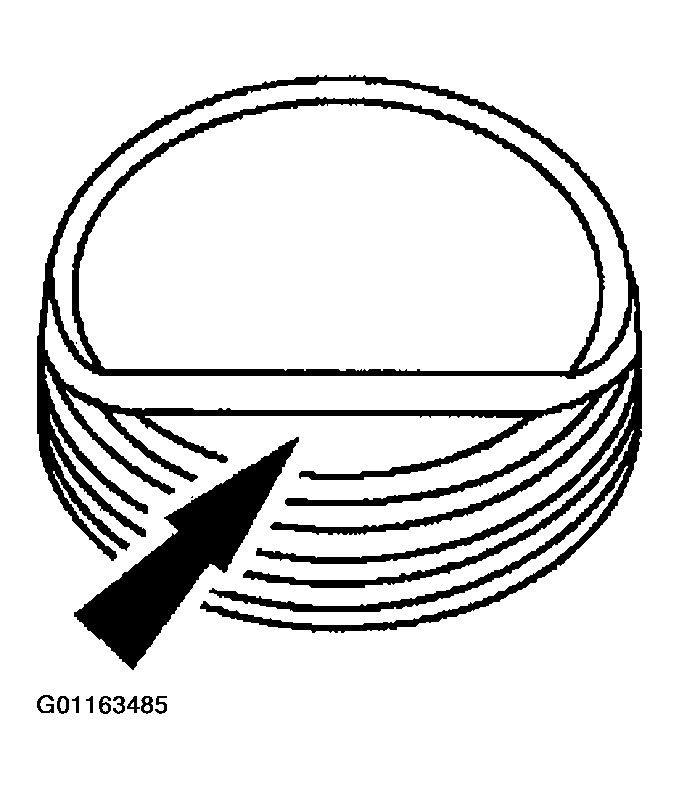

    Fig 12: Removing Intermediate And Overdrive Accumulator Plug Seal
    G01163485
  13. As necessary, disassemble the parts of the accumulator body and main control valve body assemblies.
    1. Lubricate and reassemble the parts as soon as possible to avoid accidental damage or incorrect installation.
