Output Shaft Speed (OSS) Sensor: Removal

Raise and support the vehicle.
Remove the LH front wheel.
Remove the splash shield.

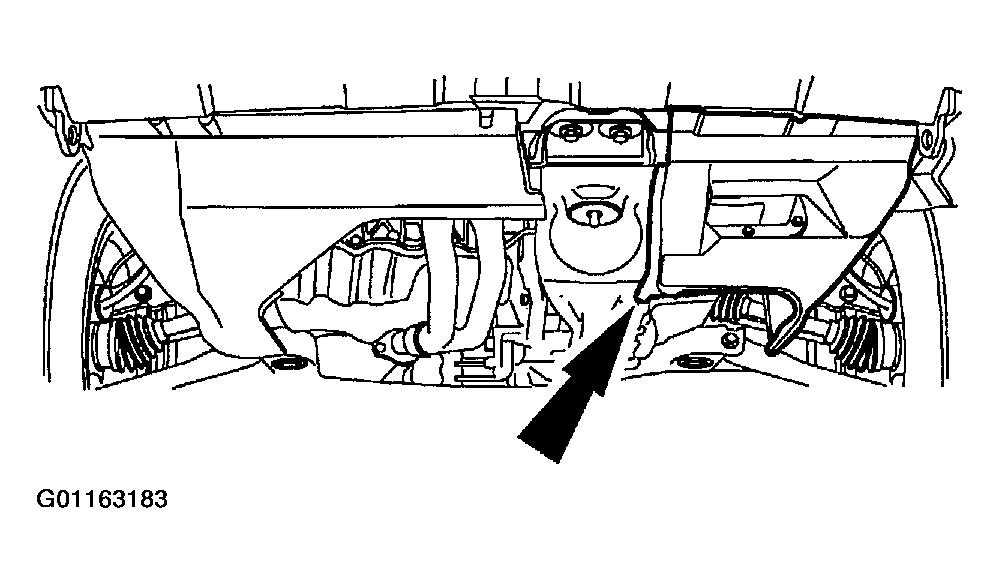

Fig 1: Removing Splash Shield
Remove the output shaft speed (OSS) sensor.
1. Disconnect the OSS sensor electrical connector.
2. Remove the bolt.
3. Inspect the OSS bore.

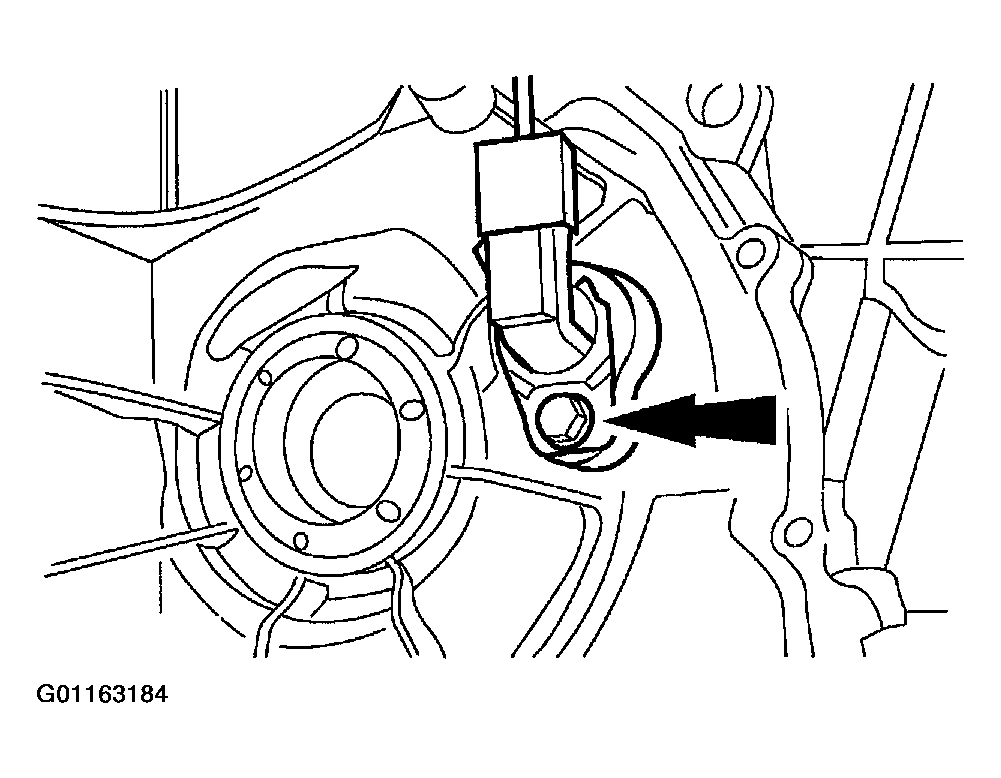

Fig 2: Removing Output Shaft Speed (OSS) Sensor
Inspect the O-ring seal for nicks or cuts. Install a new seal as necessary.

Fig 3: Inspecting O-Ring Seal
