Abs Control Module Removal Note

Install the screw plugs (supplied in the service part kit) onto the brake pipe holes of the HU.
Disconnect the motor connector as follows.
CAUTION:
- Do not apply force on the locking tab when disconnecting the connector.
1. Lift up the tab to unlock the connector by hand.
2. Pull the connector from the ABS CM by grasping the side of the motor connector.
Carefully pull the wiring of the pump motor out of the cable guides.

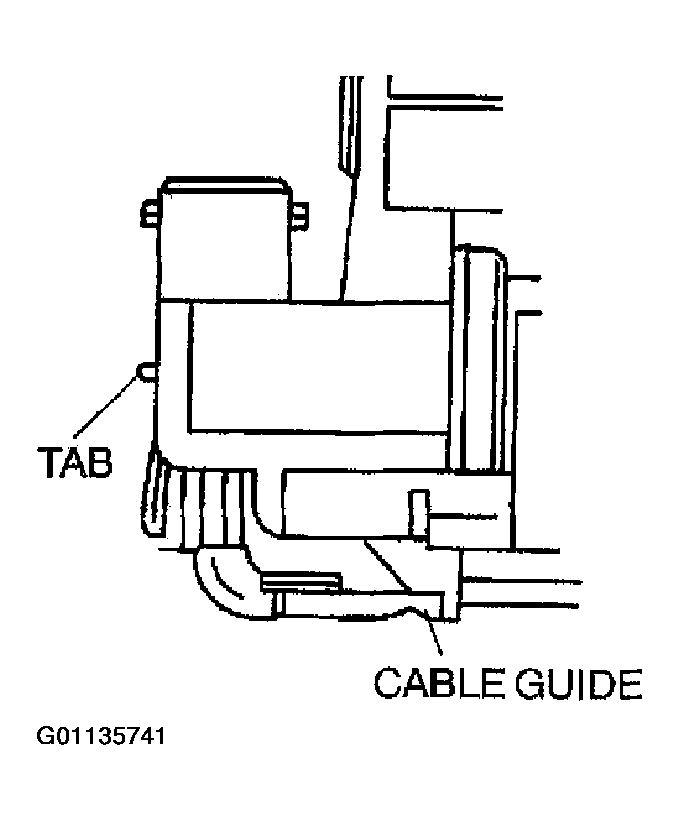

Fig 1: Removing Wire From Pump Motor
Courtesy of MAZDA MOTORS CORP.
Secure the Hydraulic Unit as shown.

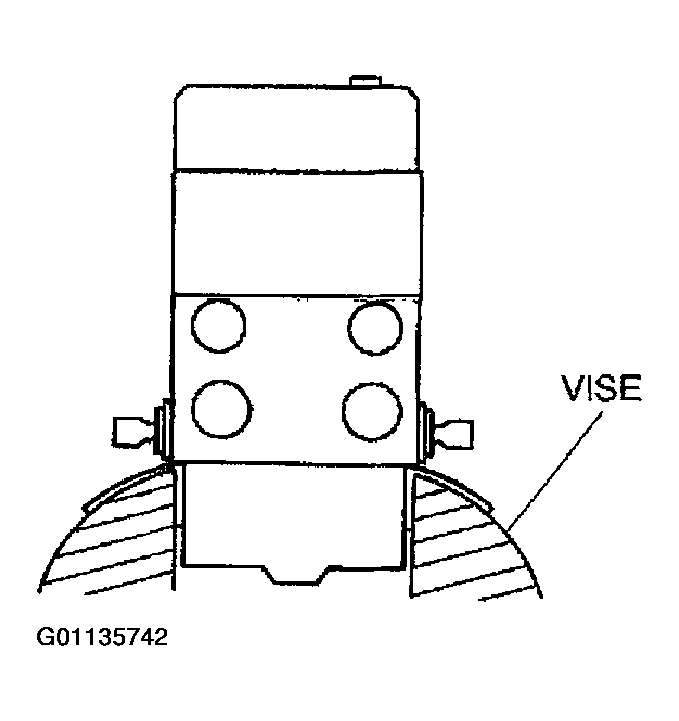

Fig 2: Securing The Hydraulic Unit
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Protect the Hydraulic Unit from damage to the valve body and keep the sealing surface free from foreign materials.
