Abs Hydraulic Unit And Control Module Removal/Installation: Notes

1. Remove the charcoal canister.
2. Remove in the order indicated in Fig 1 .
3. Install in the reverse order of removal.

NOTE:

• The ABS hydraulic unit is not purchased as one part. Replace the ABS hydraulic unit and control module component as one assembly part if the ABS hydraulic unit is malfunctioning.

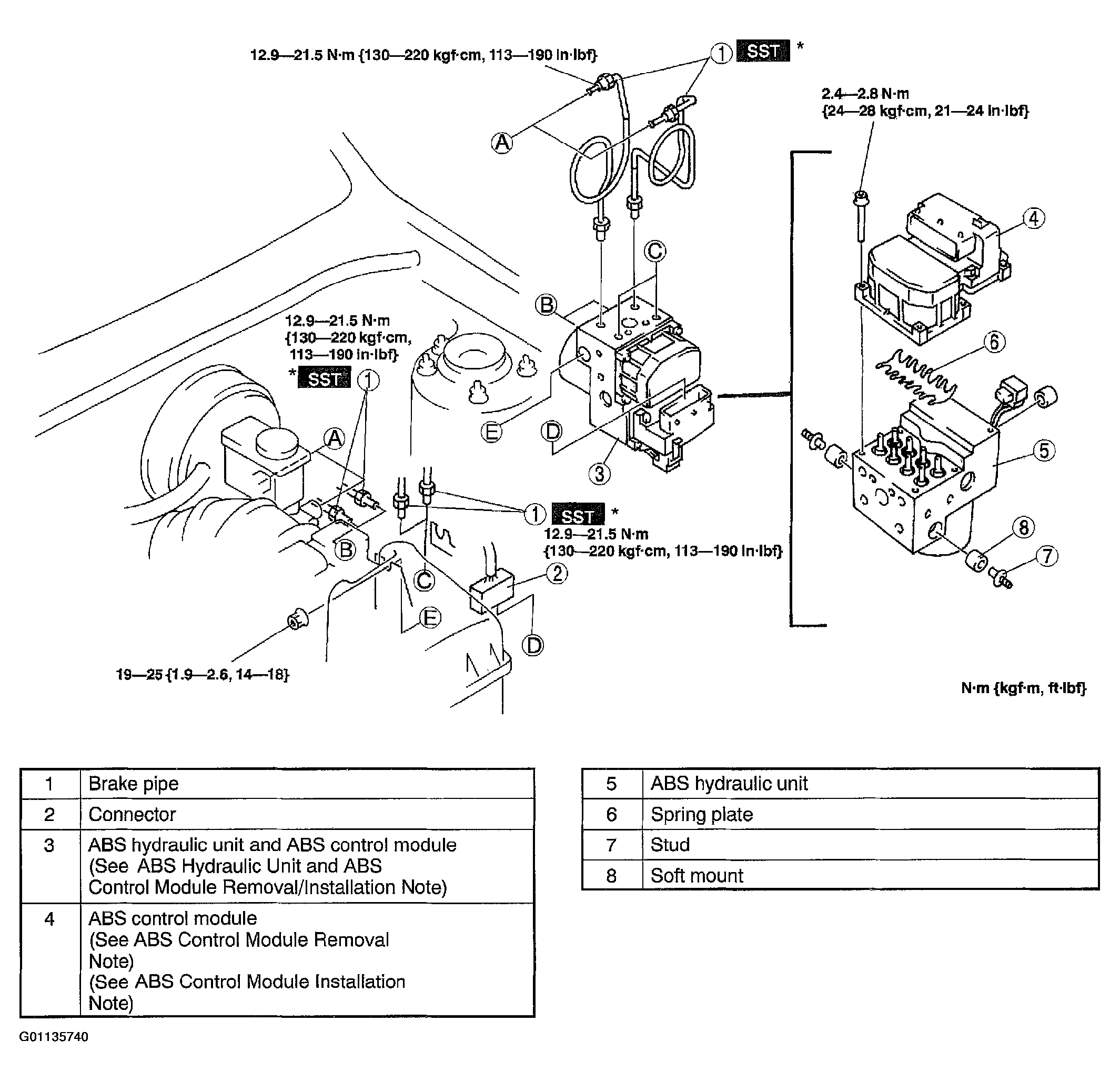

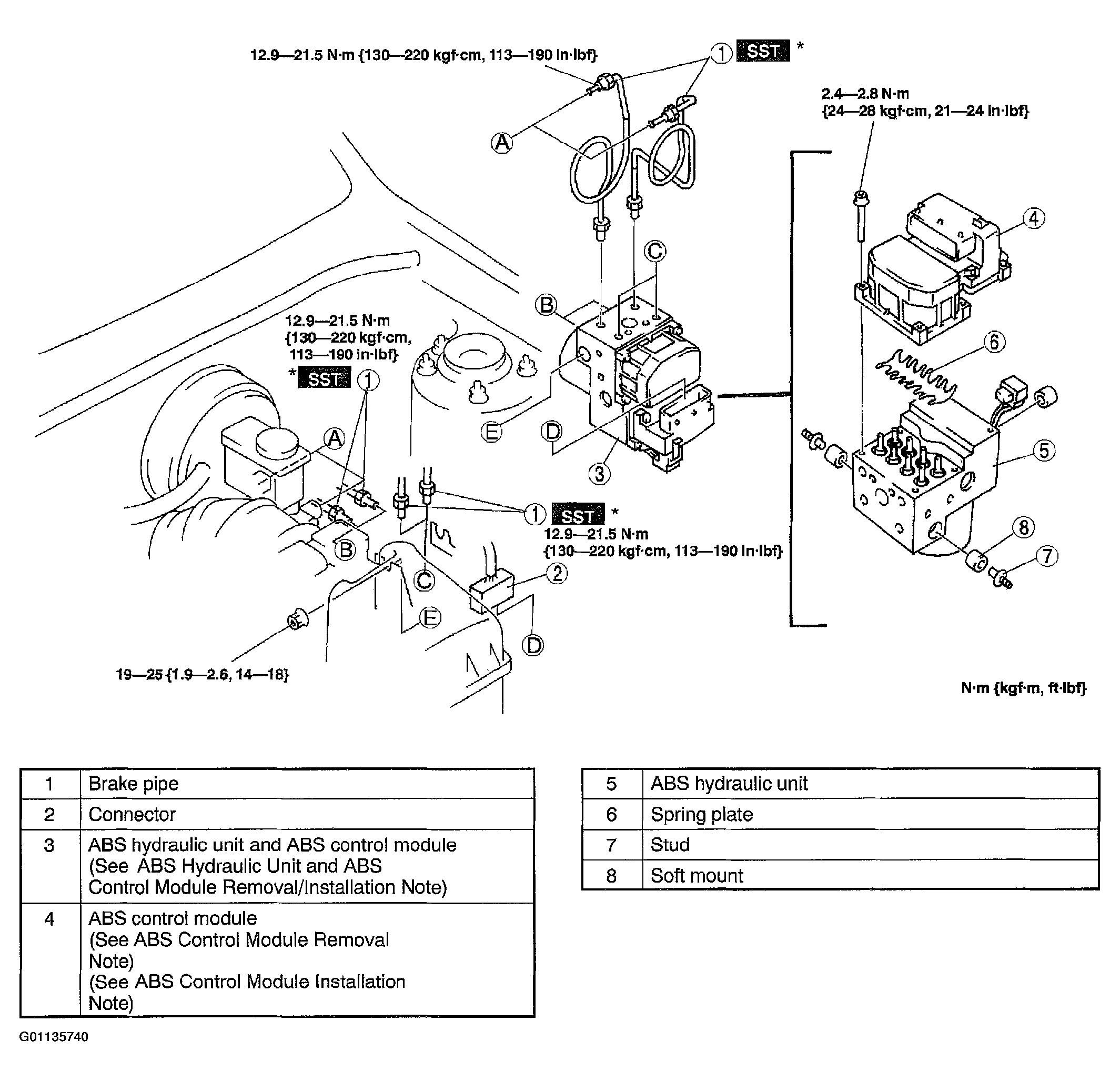

Fig 1: Removing/Installing ABS Hydraulic Unit & Control Module

Courtesy of MAZDA MOTORS CORP.
