ABS Warning Light

Normal condition.

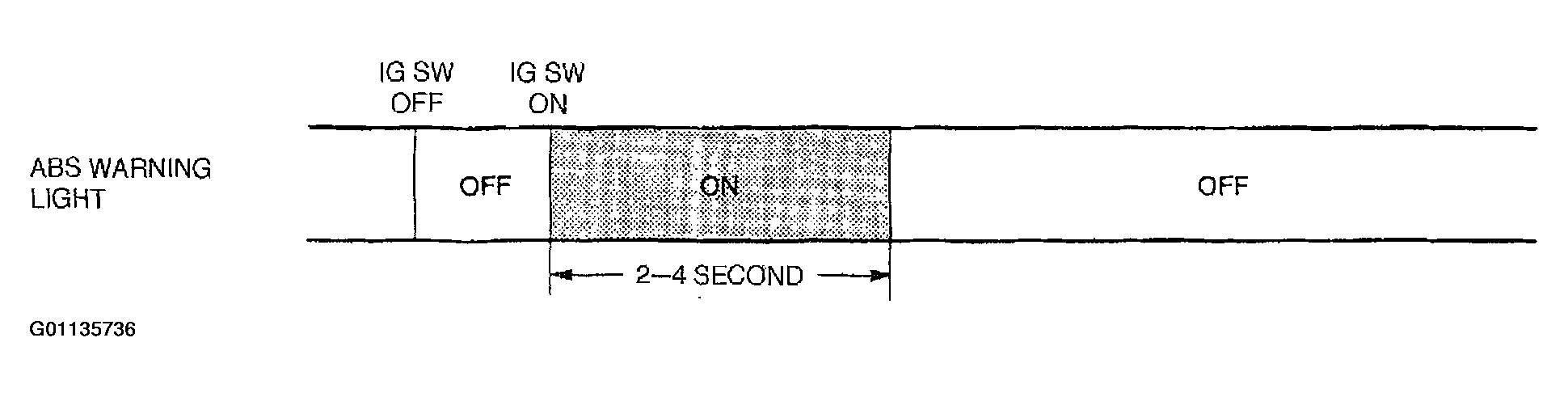

Fig 1: ABS Warning Light Timing - Normal Conditions
Courtesy of MAZDA MOTORS CORP.
Occurrence of malfunction
1. In case of present failure (includes failures that reappear during operation only, such as in the ABS sensor rotor malfunction).

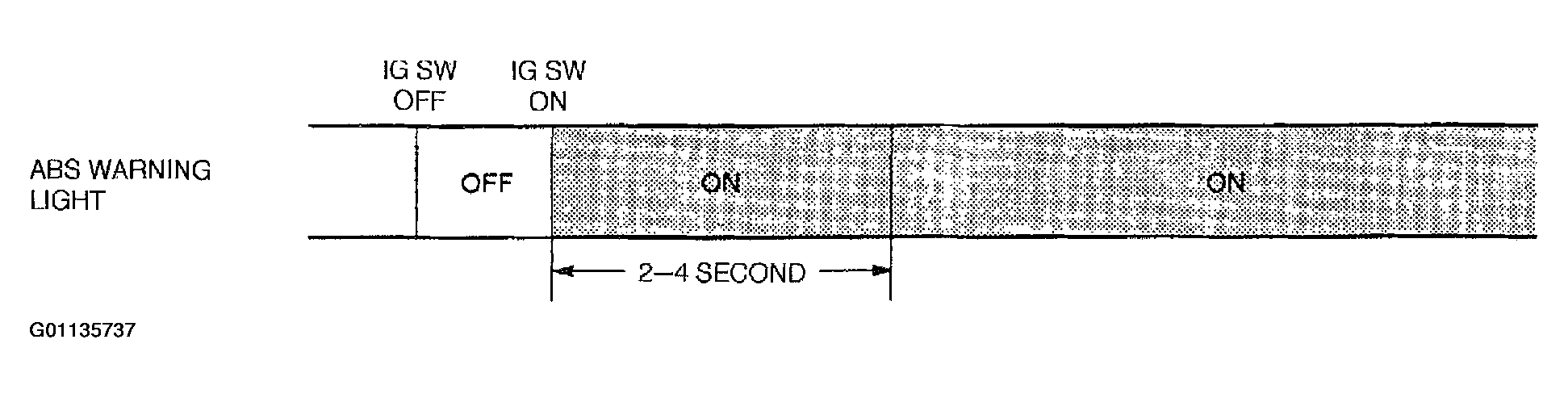

  Fig 2: ABS Warning Light Timing - In Case Of Present Failure
  Courtesy of MAZDA MOTORS CORP.
2. In case of past failure.

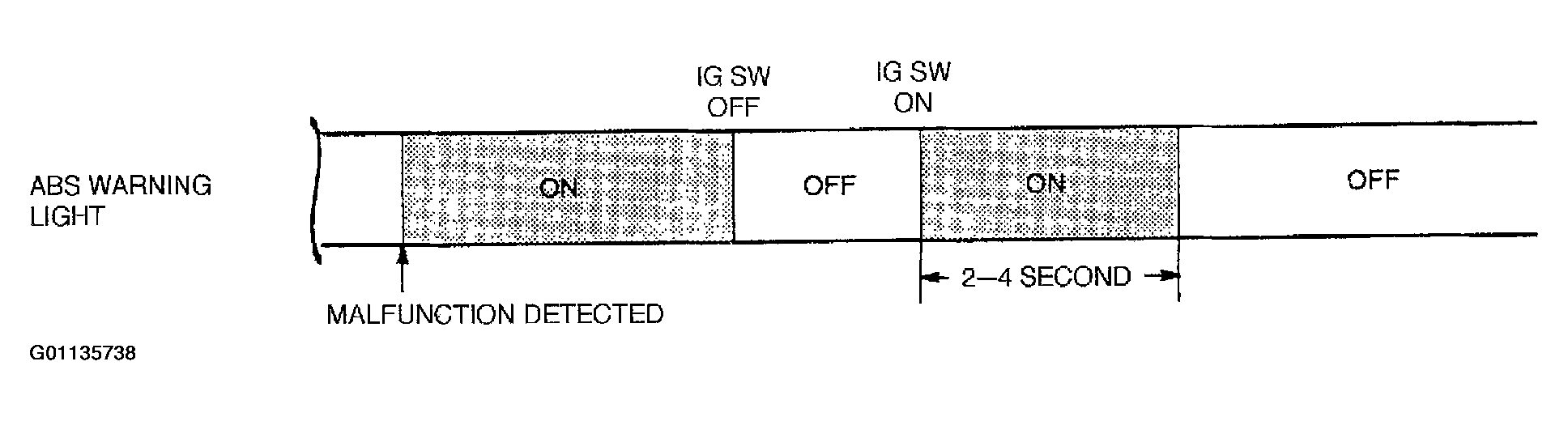

  Fig 3: ABS Warning Light Timing - In Case Of Past Failure
  Courtesy of MAZDA MOTORS CORP.

  (Malfunction Detected In Wheel-Speed Sensor Or Pump Motor Circuit).

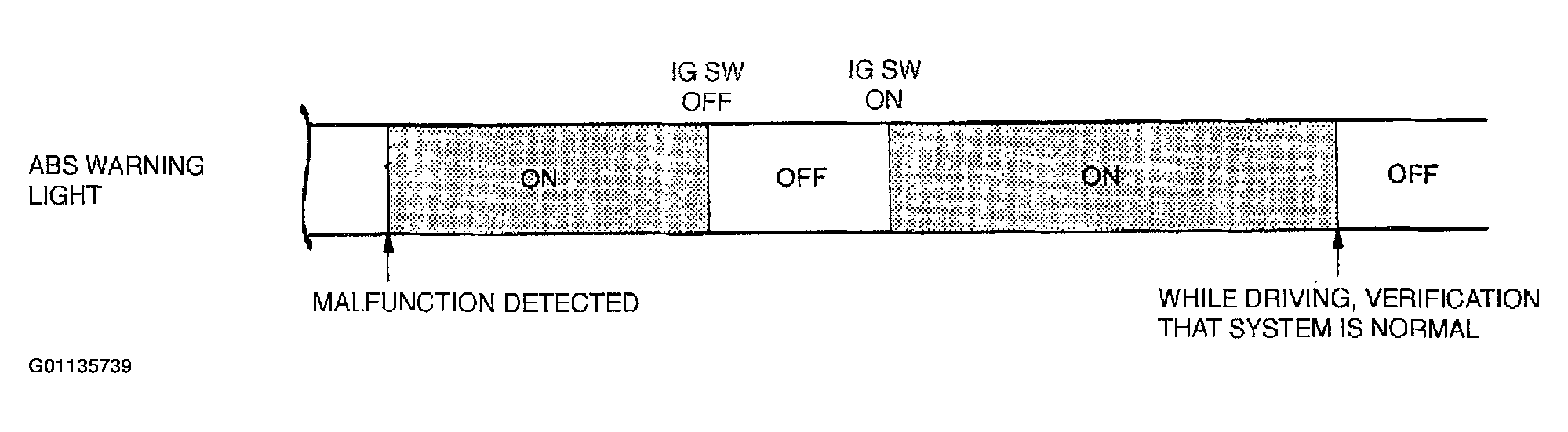

  Fig 4: ABS Warning Light Timing - In Case Of Past Failure (Wheel Speed Sensor Or Pump Motor Circuit)
  Courtesy of MAZDA MOTORS CORP.
The ABS warning light is located within the instrument cluster. If the warning light illuminates during driving, it indicates a malfunction in the ABS system.
The following conditions indicate a malfunction in the system.
1. The warning light does not illuminate when the ignition switch is turned to ON.
2. The warning light remains illuminated after the ignition switch is turned to ON.
3. The warning light illuminates or flashes while driving the vehicle.
In the case with past failures, the next time the engine is started, if the control module verifies that the system is normal, the ABS warning light goes out.
However, with the malfunctions in the ABS wheel-speed sensor or pump motor circuit, verification cannot be done without driving the vehicle.
Drive the vehicle over 10 km/h {6.2 mph}, and if the system is verified to be normal, the warning light goes out.
