On-Board Diagnostics
The ABS control module includes an on-board diagnostic function which checks for normal operation of the ABS.

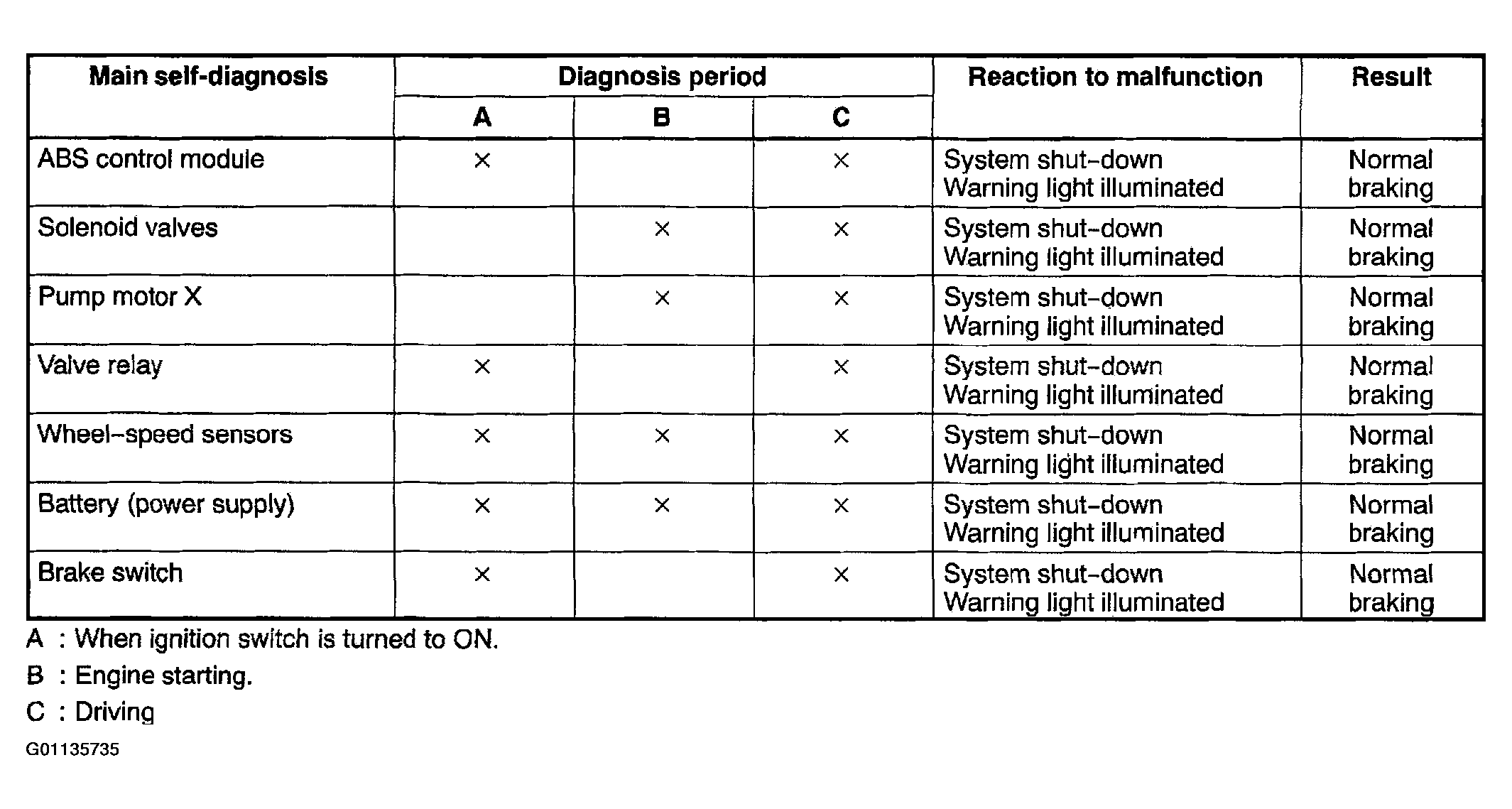

Fig 1: On-Board Diagnostics
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
