DTC B1318: Abs Control Module Power Supply

Diagnostic Procedure

CAUTION:
  • When attaching the tester lead to the PCM, the SST must be used.

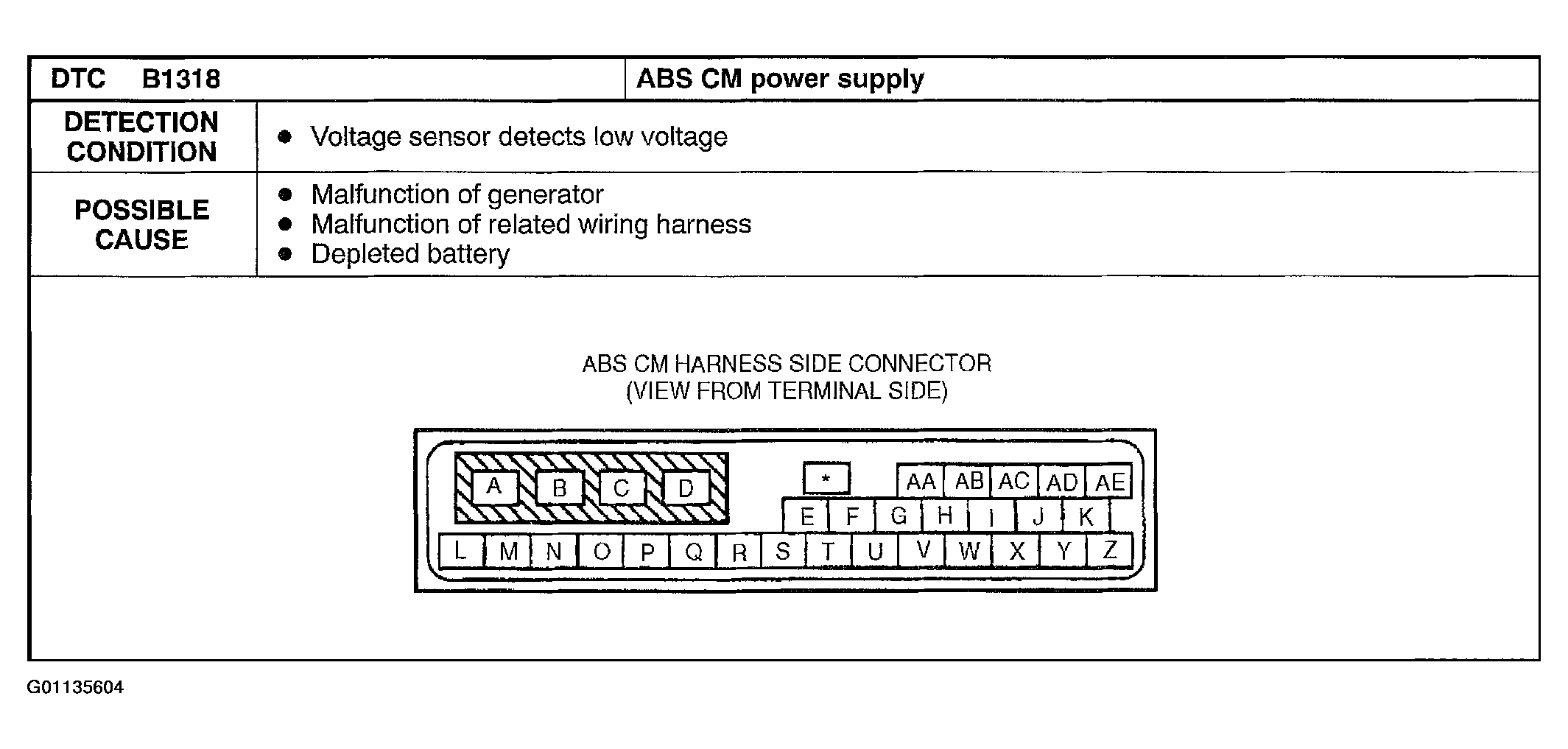

Fig 1: DTC B1318 Detection Condition & Possible Causes
G01135604Courtesy of MAZDA MOTORS CORP.

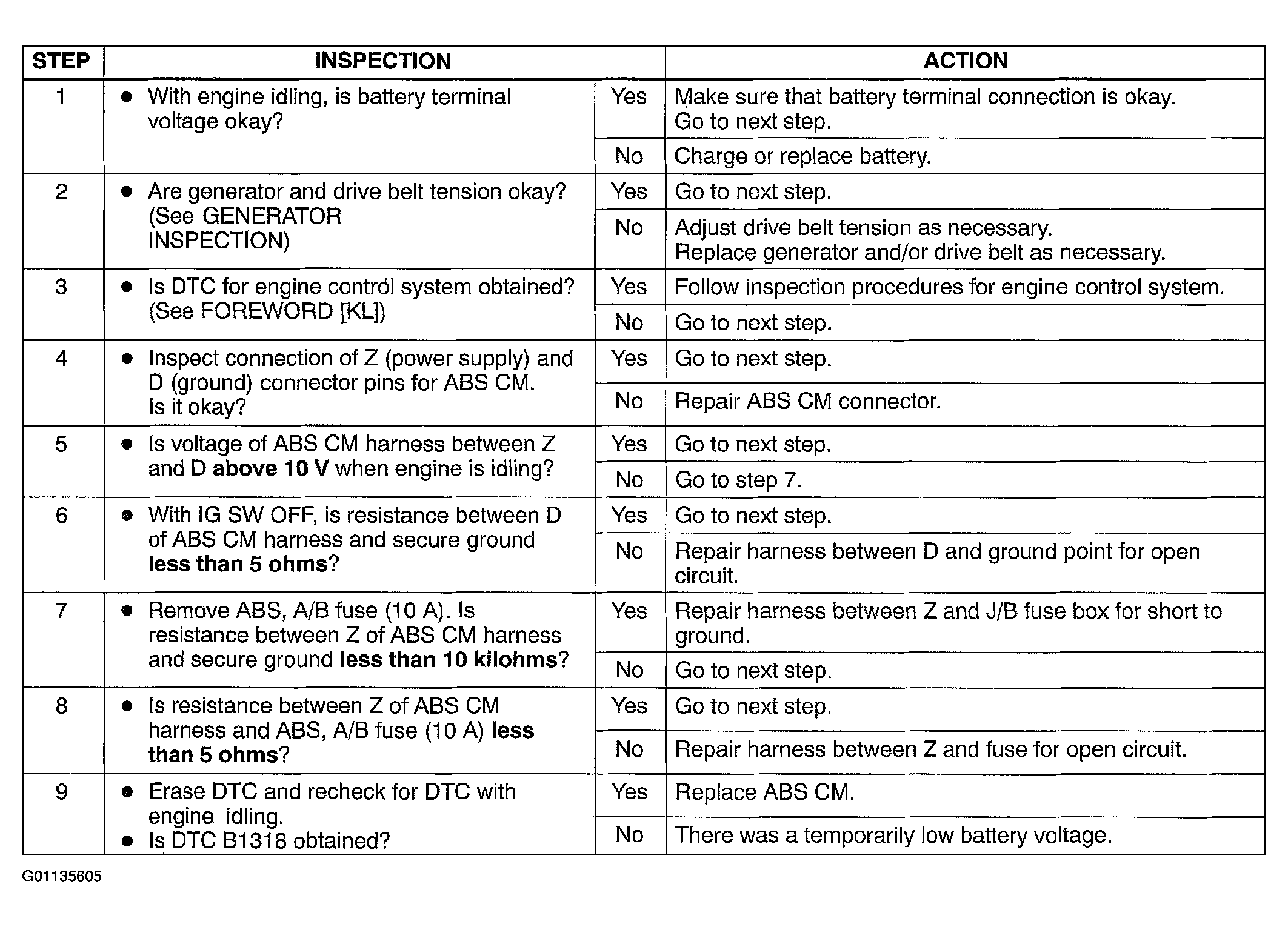

Fig 2: DTC B1318 Inspection & Action
G01135605Courtesy of MAZDA MOTORS CORP.
